BRIO Pressure flow switch

New

previous next

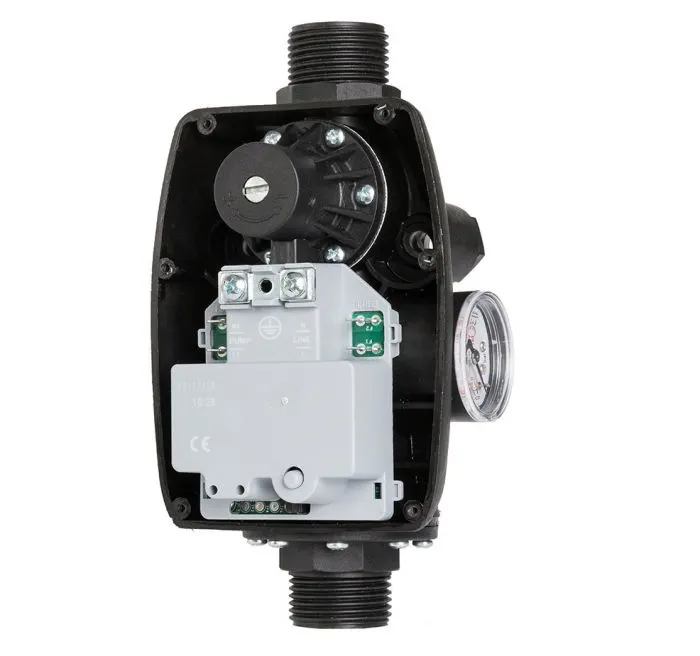

BRIO Pressure flow switch

Electronic mechanism for controlling electric pumps. Starts the pump at minimum water demand and protects it against idling. Built-in check valve with checking capability, built-in pressure gauge, intelligent automatic reset and anti-seize function are standard. Compact, adjustable, intelligent. See more

in stock >10 pcs

from 78.36 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
Other
Category:
Other command and control systems
Product No.:
MAS001641

Product variants

Other

BRIO Pressure flow switch

  • Technical Specifications
  • Product No.
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Product description

  • Automates the start-up and shut-down operations of single-phase electric pumps (surface, vertical and submersible).
  • Completely replaces the traditional water system with a pressure switch and pressure tank.
  • It starts the electric pump when the pressure drops (opening the taps) and performs pump shutdown when the liquid flow is interrupted at the maximum pressure level of the electric pump (closing the taps).
  • Protection against idling.
  • Built-in check valve with control capability
  • Intelligent automatic reset
  • Motor jam protection function starts the pump every 24 hours in standby mode to prevent rotor blockage.
  • Adjustable starting pressure.
  • Installation in any position - vertical or horizontal.
