Calpeda 2- MXV-B pumping station with 2 vertical multi-stage pumps + 1 or 2 frequency converters

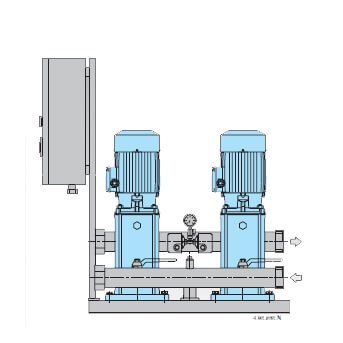

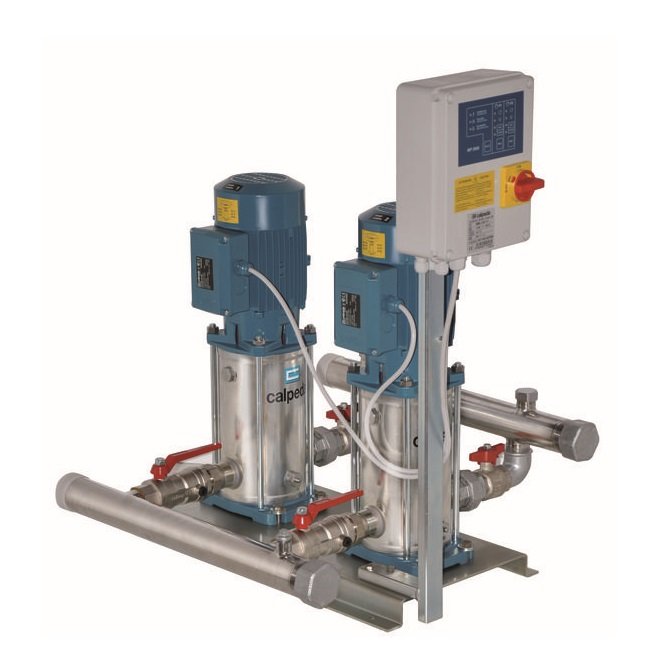

Automatic pressure station with two vertical link pumps with a ball valve, a non-return valve for suction and a ball valve for discharge, suitable for the installation of two 20 liter pressure vessels. Suction and discharge pipes are made of AISI 304 stainless steel. See more

on demand check availability

from 5,182.08 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Pressure booster sets with frequency converter - vertical
Product No.:
MAS000277

Product variants

CALPEDA

Calpeda 2- MXV-B pumping station with 2 vertical multi-stage pumps + 1 or 2 frequency converters

  • Technical Specifications
  • Product No.
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Product description

Switchboard

  • With microprocessor control for constant speed pumps
  • With frequency converter control for variable speed pumps
  • The device is equipped with a manometer and two adjustable differential pressure switches

Traffic

  • BS 2F Constant speed pumps
  • Depending on the pressure drop in the system, the pressure switches determine the gradual starting of the pumps, the operation of which is controlled by the microprocessor
  • BS1V1F Variable speed pumps with one frequency converter
  • According to the flow requirements, the pumps, one with variable speed and the other with constant speed, are started to provide the required amount of water at a constant pressure
  • BS2V Variable speed pumps with two frequency converters
  • According to the flow requirements, the pumps, both with variable speed, are started to provide the required amount of water at a constant pressure

Use

  • For pumping water from a well or borehole
  • To increase the pressure of the distribution network (follow local regulations and consult with the owner of the water supply)

Engine

  • 2-pole asynchronous motors, 50 Hz, n = 2900 1/min
  • Three-phase:
  • 230/400V ± 10% up to 3kW
  • 400/690V ± 10% above 4kW
  • Single phase:
  • 230V ± 10% with thermal protection
  • Insulation class F
  • Degree of protection IP 54
  • Constructed in accordance with: IEC 60034
  • Other voltages and frequencies on request

Pressure vessels (on request)

  • During installation, the outlet must be connected to membrane or pressure vessels
