Calpeda 4 SDFM - 230V PSC submersible borehole pumps with radial floating impellers

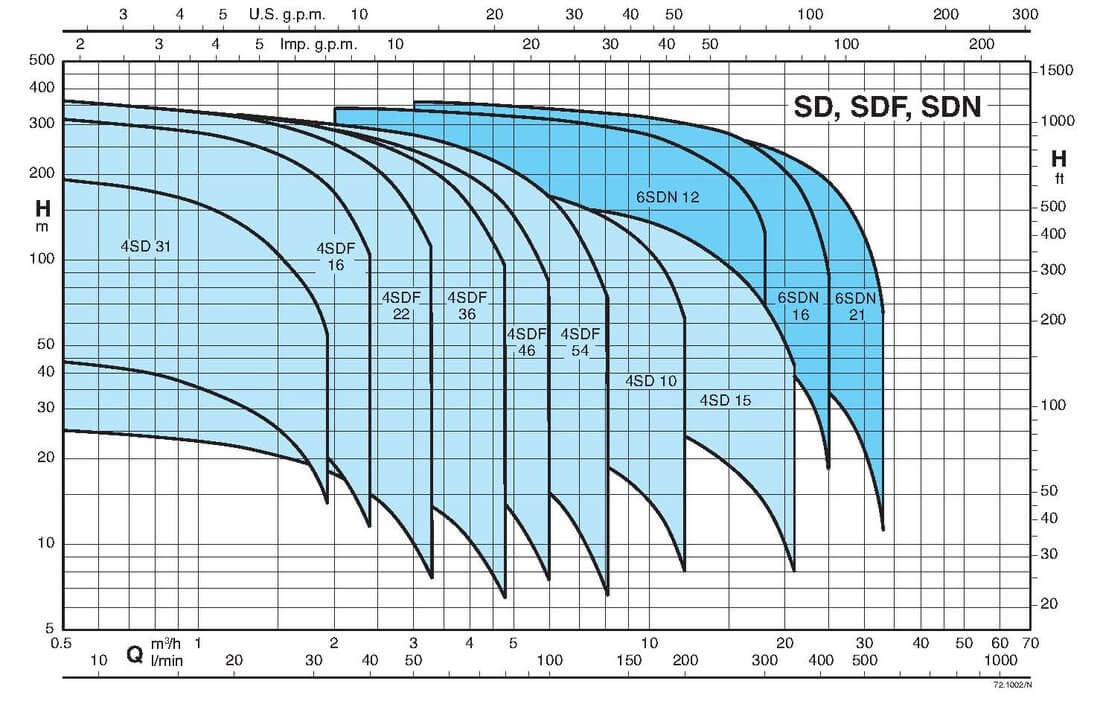

Submersible borehole pumps for 4” and 6" FLOW 0.15 / 21 mc/h HEAD 6.6 / 305 m  POWER 0.37 / 10 kW

See more

Technical Specifications

Maximum flow [l/min]
40 - 135
Maximum head [m]
43 - 183
Input voltage [V]
230
Power output - P2 [kW]
0.55 - 2.20

Show all Tech Specs

in stock 1 pcs

from 483.38 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Submersible borehole pumps
Product No.:
MAS000262

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda 4 SDFM 16/14 0,55kW 230V 20μF 4,3A submersible pump with Franklin motor

Product No.: ZB00001772 Sale group: CECK EAN: 8596455030898

available in 5 working days
2 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 2 pcs

512.58 €

Maximum flow [l/min]
40
Maximum head [m]
84
Input voltage [V]
230
Power output - P2 [kW]
0.55
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Maximum current [A]
4.30
Maximum liquid temperature [°C]
30
Cable length [m]
1.50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
centrifugal

Calpeda 4 SDFM 16/27 1,1kW 230V 40μF 8,4A submersible pump with Franklin motor

Product No.: ZB00014220 Sale group: CECK EAN: 8596455031970

available in 5 working days
3 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 3 pcs

833.56 €

Not sellable online

Maximum flow [l/min]
40
Maximum head [m]
163
Input voltage [V]
230
Power output - P2 [kW]
1.10
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Maximum current [A]
8.40
Maximum liquid temperature [°C]
30
Cable length [m]
1.50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
centrifugal

Calpeda 4 SDFM 22/21 1,1kW 230V 40μF 8,4A submersible pump with Franklin motor

Product No.: ZB00001777 Sale group: CEPJ EAN: 8596455030942

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

761.46 €

Maximum flow [l/min]
55
Maximum head [m]
137
Input voltage [V]
230
Power output - P2 [kW]
1.10
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Maximum current [A]
8.40
Maximum liquid temperature [°C]
30
Cable length [m]
1.50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
centrifugal

Calpeda 4 SDFM 36/11 0,75kW 230V 35μF 5,7A submersible pump with Franklin motor

Product No.: ZB00001779 Sale group: CECK EAN: 8596455030966

available in 5 working days
4 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 4 pcs

510.20 €

Maximum flow [l/min]
80
Maximum head [m]
64
Input voltage [V]
230
Power output - P2 [kW]
0.75
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Maximum current [A]
5.70
Maximum liquid temperature [°C]
30
Cable length [m]
1.50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
centrifugal

Calpeda 4 SDFM 46/31 2,2kW 230V 70μF 14,7A submersible pump with Franklin motor

Product No.: ZB00001782 Sale group: CECK EAN: 8596455030997

available in 5 working days
1 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 1 pcs

922.83 €

Not sellable online

Maximum flow [l/min]
100
Maximum head [m]
183
Input voltage [V]
230
Power output - P2 [kW]
2.20
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Maximum current [A]
14.70
Maximum liquid temperature [°C]
30
Cable length [m]
1.50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
centrifugal

Calpeda 4 SDFM 54/07 0,75kW 230V 35μF 5,7A submersible pump with Franklin motor

Product No.: ZB00014226 Sale group: CECK EAN: 8596455032014

available in 5 working days
1 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 1 pcs

483.38 €

Maximum flow [l/min]
135
Maximum head [m]
43
Input voltage [V]
230
Power output - P2 [kW]
0.75
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Maximum current [A]
5.70
Maximum liquid temperature [°C]
30
Cable length [m]
1.50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
centrifugal

Product description

Construction

Submersible borehole pumps for 4” wells (DN 100 mm), and 6” (DN 150 mm), with external jacket in stainless steel AISI 304 and stages in Noryl.

Impellers:
radial floating impellers: 4SDP.
Radial impellers: 6SDN 12, 16, 21.
Mixed flow impellers: 6SD 18, 19, 20.
Connection: screwed connection ISO 228.
Delivery casing with built-in non-return valve.

Applications

- For water supply.
- For civil and industrial applications.
- For fire fighting applications.
- For irrigation.

Instructions

Technical Specifications

Maximum flow [l/min]
40 - 135
Maximum head [m]
43 - 183
Input voltage [V]
230
Power output - P2 [kW]
0.55 - 2.20
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Maximum current [A]
4.30 - 14.70
Maximum liquid temperature [°C]
30
Cable length [m]
1.50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
centrifugal
