CALPEDA
Technical Specifications
- Maximum flow [l/min]
- 550
- Maximum head [m]
- 54 - 303
- Input voltage [V]
- without motor
- Power output - P2 [kW]
- 4 - 22
from 762.91 € VAT included
- Brand:
- CALPEDA
- Category:
- Submersible borehole pumps
- Product No.:
- MAS001462
Product variants
-
- Calpeda 6 SDN 21/05 hydraulic part without motor (4,0kW)
- ZB00024467
- 550
- 54
- without motor
- 4
- 3
- 6
- YES
- NO
- 25
- 151
- noryl
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 762.91 €
- Check availability
-
- Calpeda 6 SDN 21/07 hydraulic part without motor (5,5kW)
- ZB00001688
- 550
- 75.50
- without motor
- 5.50
- 3
- 6
- YES
- NO
- 25
- 151
- noryl
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 834.57 €
- Check availability
-
- Calpeda 6 SDN 21/09 hydraulic part without motor (7,5kW)
- ZB00001689
- 550
- 97
- without motor
- 7.50
- 3
- 6
- YES
- NO
- 25
- 151
- noryl
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 876.41 €
- Check availability
-
- Calpeda 6 SDN 21/11 hydraulic part without motor (9,2kW)
- ZB00001686
- 550
- 119
- without motor
- 9.20
- 3
- 6
- YES
- NO
- 25
- 151
- noryl
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 970.36 €
- Check availability
-
- Calpeda 6 SDN 21/14 hydraulic part without motor (11kW)
- ZB00001687
- 550
- 151
- without motor
- 11
- 3
- 6
- YES
- NO
- 25
- 151
- noryl
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 1,035.54 €
- Check availability
-
- Calpeda 6 SDN 21/16 hydraulic part without motor (13-15kW)
- ZB00024469
- 550
- 173
- without motor
- 13
- 3
- 6
- YES
- NO
- 25
- 151
- noryl
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 1,073.42 €
- Check availability
-
- Calpeda 6 SDN 21/19 hydraulic part without motor (15kW)
- ZB00014174
- 550
- 205
- without motor
- 15
- 3
- 6
- YES
- NO
- 25
- 151
- noryl
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 1,130.44 €
- Check availability
-
- Calpeda 6 SDN 21/23 hydraulic part without motor (18,5kW)
- ZB00024470
- 550
- 249
- without motor
- 18.50
- 3
- 6
- YES
- NO
- 25
- 151
- noryl
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 1,272.70 €
- Check availability
-
- Calpeda 6 SDN 21/28 hydraulic part without motor (22kW)
- ZB00014175
- 550
- 303
- without motor
- 22
- 3
- 6
- YES
- NO
- 25
- 151
- noryl
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 1,481.17 €
- Check availability
Variant Product No.
Availability
Price (VAT incl.)
Calpeda 6 SDN 21/05 hydraulic part without motor (4,0kW)
Product No.: ZB00024467 Sale group: CECP EAN: 8030485206965 Manuf. No.: 40S65550000
762.91 €
- Maximum flow [l/min]
- 550
- Maximum head [m]
- 54
- Input voltage [V]
- without motor
- Power output - P2 [kW]
- 4
- Delivery port ["]
- 3
- Pump diameter ["]
- 6
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum liquid temperature [°C]
- 25
- Maximum borehole diameter [mm]
- 151
- Impeller material
- noryl
- Construction
- centrifugal
Calpeda 6 SDN 21/07 hydraulic part without motor (5,5kW)
Product No.: ZB00001688 Sale group: CECP EAN: 8030485242833 Manuf. No.: 40S65600000
834.57 €
- Maximum flow [l/min]
- 550
- Maximum head [m]
- 75.50
- Input voltage [V]
- without motor
- Power output - P2 [kW]
- 5.50
- Delivery port ["]
- 3
- Pump diameter ["]
- 6
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum liquid temperature [°C]
- 25
- Maximum borehole diameter [mm]
- 151
- Impeller material
- noryl
- Construction
- centrifugal
Calpeda 6 SDN 21/09 hydraulic part without motor (7,5kW)
Product No.: ZB00001689 Sale group: CECP EAN: 8030485229858 Manuf. No.: 40S65650000
876.41 €
- Maximum flow [l/min]
- 550
- Maximum head [m]
- 97
- Input voltage [V]
- without motor
- Power output - P2 [kW]
- 7.50
- Delivery port ["]
- 3
- Pump diameter ["]
- 6
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum liquid temperature [°C]
- 25
- Maximum borehole diameter [mm]
- 151
- Impeller material
- noryl
- Construction
- centrifugal
Calpeda 6 SDN 21/11 hydraulic part without motor (9,2kW)
Product No.: ZB00001686 Sale group: CECP EAN: 8030485239529 Manuf. No.: 40S65700000
970.36 €
- Maximum flow [l/min]
- 550
- Maximum head [m]
- 119
- Input voltage [V]
- without motor
- Power output - P2 [kW]
- 9.20
- Delivery port ["]
- 3
- Pump diameter ["]
- 6
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum liquid temperature [°C]
- 25
- Maximum borehole diameter [mm]
- 151
- Impeller material
- noryl
- Construction
- centrifugal
Calpeda 6 SDN 21/14 hydraulic part without motor (11kW)
Product No.: ZB00001687 Sale group: CECP EAN: 8030485229865 Manuf. No.: 40S65750000
1,035.54 €
- Maximum flow [l/min]
- 550
- Maximum head [m]
- 151
- Input voltage [V]
- without motor
- Power output - P2 [kW]
- 11
- Delivery port ["]
- 3
- Pump diameter ["]
- 6
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum liquid temperature [°C]
- 25
- Maximum borehole diameter [mm]
- 151
- Impeller material
- noryl
- Construction
- centrifugal
Calpeda 6 SDN 21/16 hydraulic part without motor (13-15kW)
Product No.: ZB00024469 Sale group: CECP EAN: 8030485256236 Manuf. No.: 40S65800000
1,073.42 €
- Maximum flow [l/min]
- 550
- Maximum head [m]
- 173
- Input voltage [V]
- without motor
- Power output - P2 [kW]
- 13
- Delivery port ["]
- 3
- Pump diameter ["]
- 6
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum liquid temperature [°C]
- 25
- Maximum borehole diameter [mm]
- 151
- Impeller material
- noryl
- Construction
- centrifugal
Calpeda 6 SDN 21/19 hydraulic part without motor (15kW)
Product No.: ZB00014174 Sale group: CECP EAN: 8030485229872 Manuf. No.: 40S65850000
1,130.44 €
- Maximum flow [l/min]
- 550
- Maximum head [m]
- 205
- Input voltage [V]
- without motor
- Power output - P2 [kW]
- 15
- Delivery port ["]
- 3
- Pump diameter ["]
- 6
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum liquid temperature [°C]
- 25
- Maximum borehole diameter [mm]
- 151
- Impeller material
- noryl
- Construction
- centrifugal
Calpeda 6 SDN 21/23 hydraulic part without motor (18,5kW)
Product No.: ZB00024470 Sale group: CECP EAN: 8030485279211 Manuf. No.: 40S65900000
1,272.70 €
- Maximum flow [l/min]
- 550
- Maximum head [m]
- 249
- Input voltage [V]
- without motor
- Power output - P2 [kW]
- 18.50
- Delivery port ["]
- 3
- Pump diameter ["]
- 6
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum liquid temperature [°C]
- 25
- Maximum borehole diameter [mm]
- 151
- Impeller material
- noryl
- Construction
- centrifugal
Calpeda 6 SDN 21/28 hydraulic part without motor (22kW)
Product No.: ZB00014175 Sale group: CECP EAN: 8030485282099 Manuf. No.: 40S65950000
1,481.17 €
- Maximum flow [l/min]
- 550
- Maximum head [m]
- 303
- Input voltage [V]
- without motor
- Power output - P2 [kW]
- 22
- Delivery port ["]
- 3
- Pump diameter ["]
- 6
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum liquid temperature [°C]
- 25
- Maximum borehole diameter [mm]
- 151
- Impeller material
- noryl
- Construction
- centrifugal
Product description

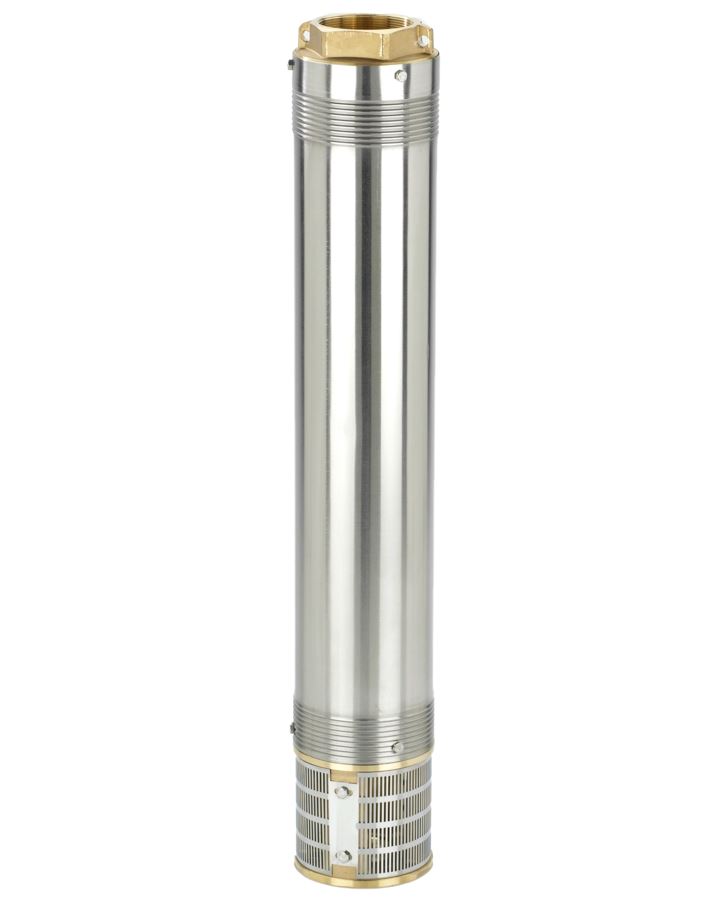

6 ”submersible pumps (DN 150 mm) with AISI 304 stainless steel outer casing and 6SDN for pump cells.
Use
- For pumping water.
- For domestic and industrial use.
- For fire extinguishing systems.
- For irrigation.
Operating conditions
- Fluid temperature: up to 25 ° C for 6 ”motors
- Maximum sand admixture in water: 150 g / m3 (300 g / m3 high solids to sand ratio).
- Continuous trafic.
Instructions
Technical Specifications
- Maximum flow [l/min]
- 550
- Maximum head [m]
- 54 - 303
- Input voltage [V]
- without motor
- Power output - P2 [kW]
- 4 - 22
- Delivery port ["]
- 3
- Pump diameter ["]
- 6
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum liquid temperature [°C]
- 25
- Maximum borehole diameter [mm]
- 151
- Impeller material
- noryl
- Construction
- centrifugal
