Calpeda 8 SDS 70 hydraulic part without motor

previous next

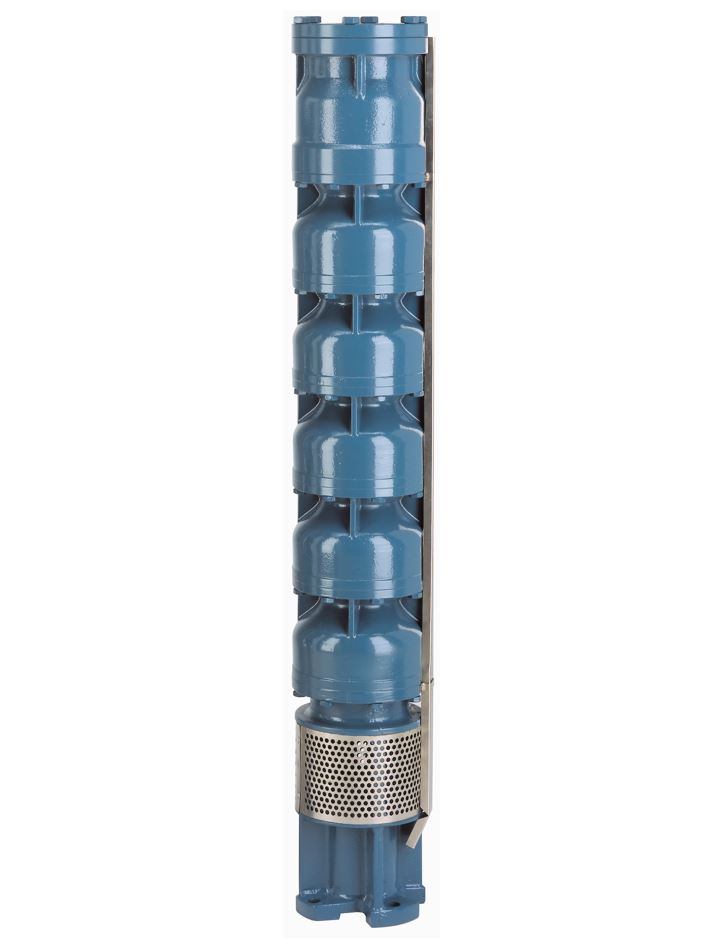

Calpeda 8 SDS 70 hydraulic part without motor

Submersible borehole pumps for 8” wells See more

Technical Specifications

Maximum flow [l/min]
1,500
Maximum head [m]
23.50 - 470
Input voltage [V]
without motor
Power output - P2 [kW]
4 - 92

Show all Tech Specs

on demand check availability

from 1,496.55 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Submersible borehole pumps
Product No.:
MAS001276

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Pump diameter ["]
  • Drinking water certificate
  • Float switch
  • Maximum liquid temperature [°C]
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda 8 SDS 70/01 hydraulic part without motor (5,5kW)

Product No.: ZB00024609 Sale group: CECP EAN: 8030485122470 Manuf. No.: 40SM0100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,496.55 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
23.50
Input voltage [V]
without motor
Power output - P2 [kW]
4
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/02 hydraulic part without motor (9,2kW)

Product No.: ZB00024620 Sale group: CECP EAN: 8030485045151 Manuf. No.: 40SM0200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,811.12 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
47
Input voltage [V]
without motor
Power output - P2 [kW]
9.20
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/03 hydraulic part without motor (15kW)

Product No.: ZB00014178 Sale group: CECP EAN: 8030485132615 Manuf. No.: 40SM0300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,167.81 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
70.50
Input voltage [V]
without motor
Power output - P2 [kW]
15
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/04 hydraulic part without motor (18,5kW)

Product No.: ZB00014179 Sale group: CECP EAN: 8030485034766 Manuf. No.: 40SM0400000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,511.02 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
94
Input voltage [V]
without motor
Power output - P2 [kW]
18.50
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/05 hydraulic part without motor (22kW)

Product No.: ZB00024622 Sale group: CECP EAN: 8030485039624 Manuf. No.: 40SM0500000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,974.16 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
118
Input voltage [V]
without motor
Power output - P2 [kW]
22
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/06 hydraulic part without motor (26-30kW)

Product No.: ZB00024623 Sale group: CECP EAN: 8030485114482 Manuf. No.: 40SM0600000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,317.29 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
141
Input voltage [V]
without motor
Power output - P2 [kW]
26
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/07 hydraulic part without motor (30kW)

Product No.: ZB00024624 Sale group: CECP EAN: 8030485048480 Manuf. No.: 40SM0700000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,666.66 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
165
Input voltage [V]
without motor
Power output - P2 [kW]
30
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/08 hydraulic part without motor (37kW)

Product No.: ZB00024625 Sale group: CECP EAN: 8030485138402 Manuf. No.: 40SM0800000

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,006.78 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
188
Input voltage [V]
without motor
Power output - P2 [kW]
37
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/09 hydraulic part without motor (45kW)

Product No.: ZB00024626 Sale group: CECP EAN: 8030485199984 Manuf. No.: 40SM0900000

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,351.11 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
212
Input voltage [V]
without motor
Power output - P2 [kW]
45
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/10 hydraulic part without motor (45kW)

Product No.: ZB00024610 Sale group: CECP EAN: 8030485048497 Manuf. No.: 40SM1000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,751.16 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
235
Input voltage [V]
without motor
Power output - P2 [kW]
45
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/11 hydraulic part without motor (51-55kW)

Product No.: ZB00024611 Sale group: CECP EAN: 8030485318958 Manuf. No.: 40SM1100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,228.80 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
259
Input voltage [V]
without motor
Power output - P2 [kW]
51
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/12 hydraulic part without motor (55kW)

Product No.: ZB00024612 Sale group: CECP EAN: 8030485229902 Manuf. No.: 40SM1200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,852.06 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
282
Input voltage [V]
without motor
Power output - P2 [kW]
55
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/13 hydraulic part without motor (59-75kW)

Product No.: ZB00024613 Sale group: CECP EAN: 8030485512134 Manuf. No.: 40SM1300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,145.66 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
306
Input voltage [V]
without motor
Power output - P2 [kW]
59
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/14 hydraulic part without motor (59-75kW)

Product No.: ZB00024614 Sale group: CECP EAN: 8030485306382 Manuf. No.: 40SM1400000

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,512.68 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
329
Input voltage [V]
without motor
Power output - P2 [kW]
59
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/15 hydraulic part without motor (66-75kW)

Product No.: ZB00024615 Sale group: CECP Manuf. No.: 40SM1500000

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,995.37 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
353
Input voltage [V]
without motor
Power output - P2 [kW]
66
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/16 hydraulic part without motor (75kW)

Product No.: ZB00024616 Sale group: CECP EAN: 8030485512127 Manuf. No.: 40SM1600000

on demand
check availability
Product availability
  • central warehouse 0 pcs

7,589.76 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
376
Input voltage [V]
without motor
Power output - P2 [kW]
75
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/17 hydraulic part without motor (75kW)

Product No.: ZB00024617 Sale group: CECP EAN: 8030485312758 Manuf. No.: 40SM1700000

on demand
check availability
Product availability
  • central warehouse 0 pcs

8,186.26 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
400
Input voltage [V]
without motor
Power output - P2 [kW]
75
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/18 hydraulic part without motor (92kW)

Product No.: ZB00024618 Sale group: CECP Manuf. No.: 40SM1800000

on demand
check availability
Product availability
  • central warehouse 0 pcs

8,779.66 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
423
Input voltage [V]
without motor
Power output - P2 [kW]
92
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/19 hydraulic part without motor (92kW)

Product No.: ZB00024619 Sale group: CECP EAN: 8030485512110 Manuf. No.: 40SM1900000

on demand
check availability
Product availability
  • central warehouse 0 pcs

9,373.04 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
447
Input voltage [V]
without motor
Power output - P2 [kW]
92
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Calpeda 8 SDS 70/20 hydraulic part without motor (92kW)

Product No.: ZB00024621 Sale group: CECP EAN: 8030485417163 Manuf. No.: 40SM2000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

9,966.41 €

Not sellable online

Maximum flow [l/min]
1,500
Maximum head [m]
470
Input voltage [V]
without motor
Power output - P2 [kW]
92
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal

Product description

Construction

Submersible borehole pumps for 8” (DN 200 mm), with stages in cast iron or in bronze, on request.
Impellers: mixed flow impellers.
Connection: flange with counter-flange for welding
Delivery casing with built-in non-return valve.

Applications

- For water supply.
- For civil and industrial applications.
- For fire fighting applications.
- For irrigation.

Instructions

Technical Specifications

Maximum flow [l/min]
1,500
Maximum head [m]
23.50 - 470
Input voltage [V]
without motor
Power output - P2 [kW]
4 - 92
Delivery port ["]
DN100
Pump diameter ["]
8
Drinking water certificate
NO
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
199
Impeller material
cast iron
Construction
centrifugal
