Calpeda C centrifugal pumps with an open impeller 3x400V

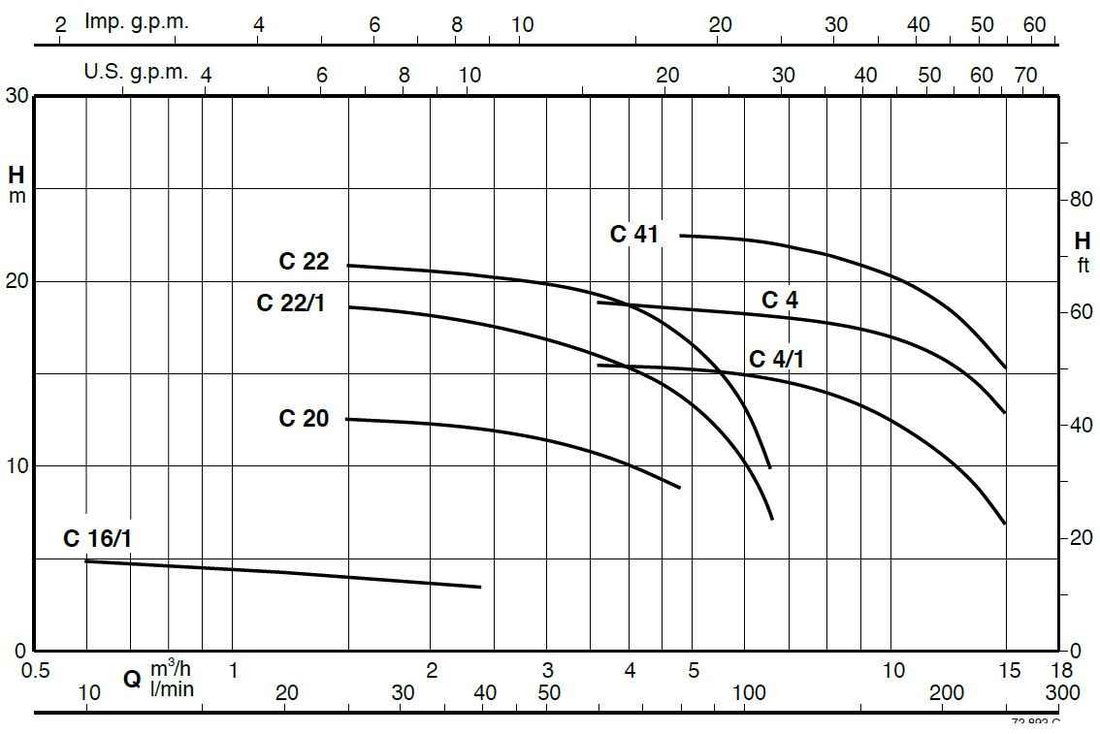

Centrifugal Pumps with open impeller FLOW 0.6 / 15 mc/h HEAD 3.6 / 22.4 m POWER 0.15 / 1.1 kW   See more

Technical Specifications

Maximum flow [l/min]
40 - 250
Maximum head [m]
5 - 22.40
Input voltage [V]
3x400
Power output - P2 [kW]
0.15 - 1.10

Show all Tech Specs

on demand check availability

from 274.60 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS000244

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda C 16/1E 230/400V 0,15kW

Product No.: ZB00001565 Sale group: CECP EAN: 8030485009917 Manuf. No.: 70630020000

on demand
check availability
Product availability
  • central warehouse 0 pcs

274.60 €

Check availability

Maximum flow [l/min]
40
Maximum head [m]
5
Input voltage [V]
3x400
Power output - P2 [kW]
0.15
Suction port ["]
1/2
Delivery port ["]
1/2
Maximum suction lift [m]
8
Drinking water certificate
NO
Maximum current [A]
1
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda C 20E 230/400V 0,37kW

Product No.: ZB00001530 Sale group: CECP EAN: 8030485009924 Manuf. No.: 70630040000

on demand
check availability
Product availability
  • central warehouse 0 pcs

309.32 €

Check availability

Maximum flow [l/min]
80
Maximum head [m]
12.30
Input voltage [V]
3x400
Power output - P2 [kW]
0.37
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Maximum current [A]
1.10
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda C 22/1A 230/400V 0,45kW

Product No.: ZB00014118 Sale group: CECP EAN: 8030485651468 Manuf. No.: 70630061000

on demand
check availability
Product availability
  • central warehouse 0 pcs

318.03 €

Check availability

Maximum flow [l/min]
110
Maximum head [m]
18
Input voltage [V]
3x400
Power output - P2 [kW]
0.45
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Maximum current [A]
1.40
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda C 22E 230/400V 0,55kW

Product No.: ZB00001560 Sale group: CECP EAN: 8030485009948 Manuf. No.: 70630070000

on demand
check availability
Product availability
  • central warehouse 0 pcs

343.04 €

Check availability

Maximum flow [l/min]
110
Maximum head [m]
20.50
Input voltage [V]
3x400
Power output - P2 [kW]
0.55
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Maximum current [A]
1.70
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda C 4/1/A 230/400V 0,55kW

Product No.: ZB00001522 Sale group: CECP EAN: 8030485009955 Manuf. No.: 70630080000

on demand
check availability
Product availability
  • central warehouse 0 pcs

395.11 €

Check availability

Maximum flow [l/min]
250
Maximum head [m]
15.60
Input voltage [V]
3x400
Power output - P2 [kW]
0.55
Suction port ["]
6/4
Delivery port ["]
6/4
Maximum suction lift [m]
8
Drinking water certificate
NO
Maximum current [A]
1.70
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda C 41/A 230/400V 1,1kW

Product No.: ZB00014121 Sale group: CECP EAN: 8030485895466 Manuf. No.: 70600112000

on demand
check availability
Product availability
  • central warehouse 0 pcs

541.64 €

Check availability

Maximum flow [l/min]
250
Maximum head [m]
22.40
Input voltage [V]
3x400
Power output - P2 [kW]
1.10
Suction port ["]
6/4
Delivery port ["]
6/4
Maximum suction lift [m]
8
Drinking water certificate
NO
Maximum current [A]
2.70
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda C 4/B 230/400V 0,75kW

Product No.: ZB00001542 Sale group: CECP EAN: 8030485901433 Manuf. No.: 70630091000

on demand
check availability
Product availability
  • central warehouse 0 pcs

448.27 €

Check availability

Maximum flow [l/min]
250
Maximum head [m]
19
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Suction port ["]
6/4
Delivery port ["]
6/4
Maximum suction lift [m]
8
Drinking water certificate
NO
Maximum current [A]
2.20
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Product description

Construction

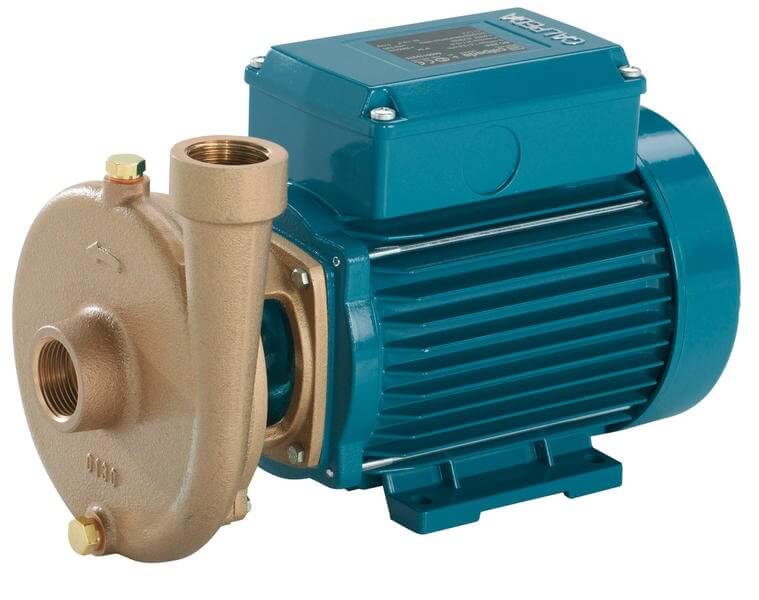

Close-coupled centrifugal pumps with open impeller.
Free-flow impeller (vortex or recessed impeller) for type C 16/1E.
C: version with pump casing and lanter bracket in cast iron.
B-C: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

- For moderately dirty liquids or emulsions.
- For industry and agriculture.



Instructions

Technical Specifications

Maximum flow [l/min]
40 - 250
Maximum head [m]
5 - 22.40
Input voltage [V]
3x400
Power output - P2 [kW]
0.15 - 1.10
Suction port ["]
1/2, 1, 6/4
Delivery port ["]
1/2, 1, 6/4
Maximum suction lift [m]
8
Drinking water certificate
NO
Maximum current [A]
1 - 2.70
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock
