Calpeda CAM 80E 230V 0,45kW

Self-Priming Liquid Ring Pumps FLOW 0.12 / 2.4 mc/h HEAD 6.5 / 53 m  POWER 0.15 / 0.75 kW

See more

Technical Specifications

Maximum flow [l/min]
31,50
Maximum head [m]
36
Input voltage [V]
230
Power output - P2 [kW]
0,45

Show all Tech Specs

on demand check availability

296.43 € VAT included

On demand

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
ZB00014024
Sale group:
CECP
EAN:
8030485010128
Manuf. No.:
70920020000

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda CAM 80E 230V 0,45kW

Product No.: ZB00014024 Sale group: CECP EAN: 8030485010128 Manuf. No.: 70920020000

on demand
check availability
Product availability
  • central warehouse 0 pcs

296.43 €

Check availability

Maximum flow [l/min]
31,50
Maximum head [m]
36
Input voltage [V]
230
Power output - P2 [kW]
0,45
Suction port ["]
3/4
Delivery port ["]
3/4
Maximum suction lift [m]
9
Drinking water certificate
NO
Maximum current [A]
3,30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
brass
Construction
self priming
You are viewing this variant

Calpeda CAM 90/A 230V 0,55kW IE2

Product No.: ZB00001658 Sale group: CECP Manuf. No.: 70920031000

on demand
check availability
Product availability
  • central warehouse 0 pcs

358.70 €

Check availability

Maximum flow [l/min]
40
Maximum head [m]
42
Input voltage [V]
230
Power output - P2 [kW]
0,55
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
9
Drinking water certificate
NO
Maximum current [A]
4,50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
brass
Construction
self priming

Product description

Construction

Close-coupled self-priming liquid ring pumps with star impeller.

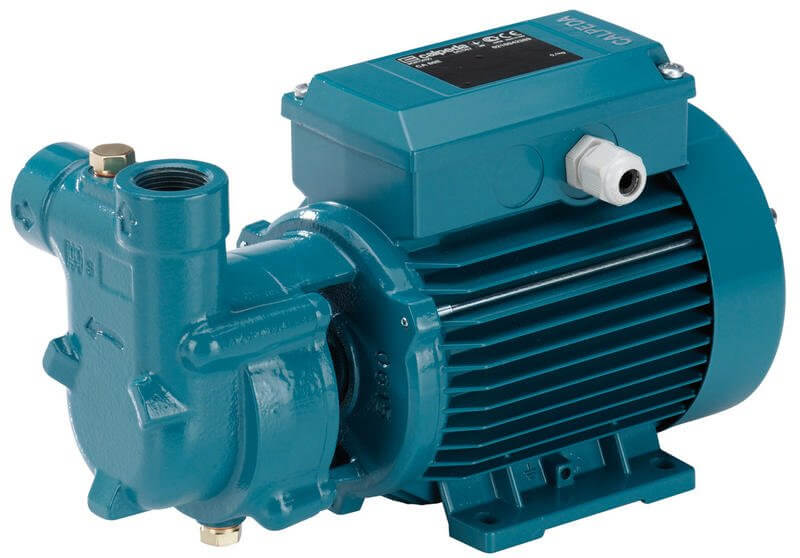

CA: version with pump casing and lanter bracket in cast iron.

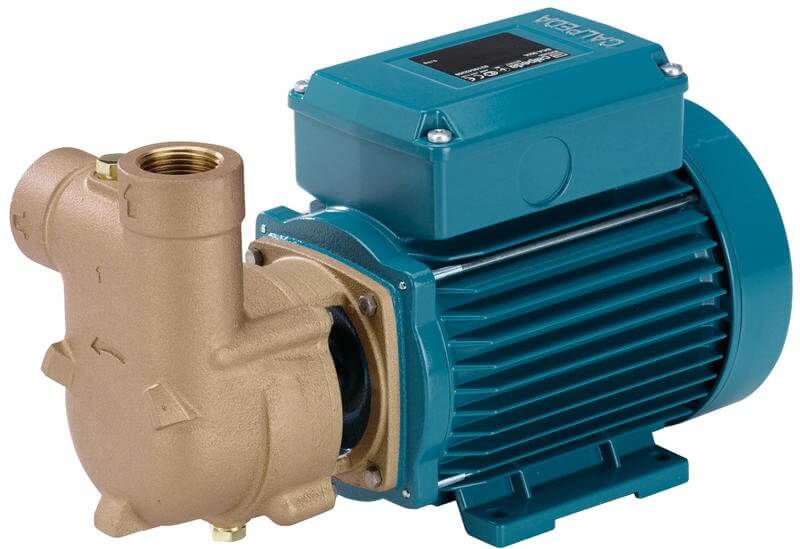

B-CA: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

- For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
- If the liquid to be pumped has entrained air or gas or the flow in the suction pipe is not stable.
- For drawing water out of a well.
- For increasing network pressure (follow local specifications).

Instructions

Technical Specifications

Maximum flow [l/min]
31,50
Maximum head [m]
36
Input voltage [V]
230
Power output - P2 [kW]
0,45
Suction port ["]
3/4
Delivery port ["]
3/4
Maximum suction lift [m]
9
Drinking water certificate
NO
Maximum current [A]
3,30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
brass
Construction
self priming
