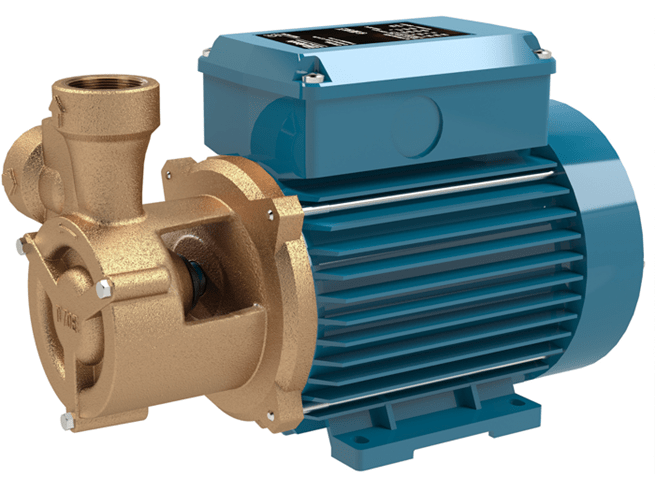

Calpeda CTM 61 close-coupled peripheral pump 230V

previous next
Calpeda CTM 61 close-coupled peripheral pump 230V

Peripheral Pumps FLOW 0.48 / 2.3 mc/h HEAD 3 / 41 m POWER 0.33 kW

See more

Technical Specifications

Maximum flow [l/min]
38
Maximum head [m]
41
Input voltage [V]
230
Power output - P2 [kW]
0.33

Show all Tech Specs

in stock >10 pcs

from 136.15 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS000245

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda CTM 61/A 230V 0,33kW submersible groundwater pump IE2

Product No.: ZB00070333 Sale group: CEPJ Manuf. No.: 70320011000

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

136.15 €

Maximum flow [l/min]
38
Maximum head [m]
41
Input voltage [V]
230
Power output - P2 [kW]
0,33
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2,50
Maximum liquid temperature [°C]
60
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda B-CTM 61 230V 0,33kW surface pump IE2

Product No.: ZB00070311 Sale group: CEPJ Manuf. No.: 71320011000

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

328.71 €

Maximum flow [l/min]
38
Maximum head [m]
41
Input voltage [V]
230
Power output - P2 [kW]
0,33
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2,50
Maximum liquid temperature [°C]
60
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
bronze
Construction
monoblock

Product description

Construction

Close-coupled peripheral pump (regenerative pump) with turbine impeller. Compact, patented construction with singlepiece motor casing and pump-side wall.
Protected against water entering the motor from outside.
CT: version with pump casing in cast iron.
B-CT: version with pump casing in bronze (the pumps are supplied fully painted).

Applications

- For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
- For increasing network pressure (follow local specifications).
- For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation.

Instructions

Technical Specifications

Maximum flow [l/min]
38
Maximum head [m]
41
Input voltage [V]
230
Power output - P2 [kW]
0.33
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2.50
Maximum liquid temperature [°C]
60
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
brass, bronze
Construction
monoblock
