CALPEDA

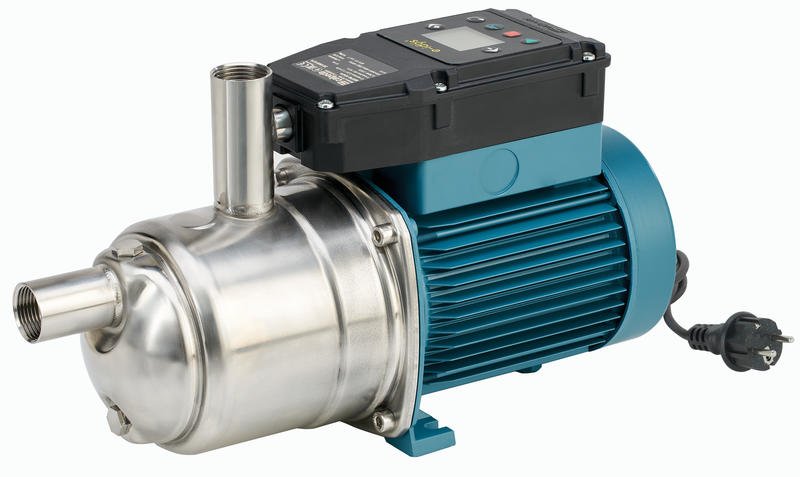

Calpeda e-idos E-MXPM 4xx
Calpeda e-idos E-MXPM 4xx
Technical Specifications
- Maximum flow [l/min]
- 108.30
- Maximum head [m]
- 34 - 44.90
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.55
from 436.35 € VAT included
- Brand:
- CALPEDA
- Category:
- Horizontal surface pumps
- Product No.:
- MAS001286
Product variants
-
- Calpeda E-MXPM 403-PCD 0,55kW 230V
- ZB00061601
- 108,30
- 34
- 230
- 0,55
- 1
- 1
- 3
- NO
- 3,80
- 1,50
- X4
- YES
- YES
- YES
- YES
- integrated
- horizontal
- noryl
- multi-stage
-
Product availability
- central warehouse 0 pcs
- 436.35 €
- Check availability
-
- Calpeda E-MXPM 404-PCD 0,55kW 230V
- ZB00061602
- 108,30
- 44,90
- 230
- 0,55
- 1
- 1
- 3
- NO
- 4,80
- 1,50
- X4
- YES
- YES
- YES
- YES
- integrated
- horizontal
- noryl
- multi-stage
-
Product availability
- central warehouse 0 pcs
- 479.14 €
- Check availability
Variant Product No.
Availability
Price (VAT incl.)
Calpeda E-MXPM 403-PCD 0,55kW 230V
Product No.: ZB00061601 Sale group: CECK EAN: 8030485998440 Manuf. No.: T663010310D0
436.35 €
- Maximum flow [l/min]
- 108,30
- Maximum head [m]
- 34
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0,55
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum suction lift [m]
- 3
- Drinking water certificate
- NO
- Maximum current [A]
- 3,80
- Cable length [m]
- 1,50
- Protection [IP]
- X4
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Off switch
- YES
- Speed control
- YES
- Capacitor
- integrated
- Pump design
- horizontal
- Impeller material
- noryl
- Construction
- multi-stage
Calpeda E-MXPM 404-PCD 0,55kW 230V
Product No.: ZB00061602 Sale group: CECK EAN: 8030485978503 Manuf. No.: T663010410D0
479.14 €
- Maximum flow [l/min]
- 108,30
- Maximum head [m]
- 44,90
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0,55
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum suction lift [m]
- 3
- Drinking water certificate
- NO
- Maximum current [A]
- 4,80
- Cable length [m]
- 1,50
- Protection [IP]
- X4
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Off switch
- YES
- Speed control
- YES
- Capacitor
- integrated
- Pump design
- horizontal
- Impeller material
- noryl
- Construction
- multi-stage
Product description
Construction
Pressurized system with integrated pressure control.
Easy to install and Compact plug and play booster set.
Brand new asynchronous single-phase motor.
Equipped with pressure transducer, non-return valve, controlled starting current and temperature.
Equipped with a programmable software and, thanks to the analogic pressure sensor, the product allows to set the re-start pressure.
An ideal solution which allows to reduce or remove the need of a expansion tank.
Features
- high efficiency asynchronous single-phase motor
- capacitor not stressed in voltage
- uniform and lower motor temperature
- motor power control
- programmable re-start pressure
- no hydraulic losses due to the measuring devices
- voltage and current control
- monitoring of maximum starting current
- elimination of water hammer
Protections
- dry-run protection
- air detection in the pump and in the filling cycle
- overload control and overheating motor control
- pump blockage
- overcurrent protection
- power supply control
- system leakage control
- high flow rate and piping failure detection
Technical Specifications
- Maximum flow [l/min]
- 108.30
- Maximum head [m]
- 34 - 44.90
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.55
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum suction lift [m]
- 3
- Drinking water certificate
- NO
- Maximum current [A]
- 3.80 - 4.80
- Cable length [m]
- 1.50
- Protection [IP]
- X4
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Off switch
- YES
- Speed control
- YES
- Capacitor
- integrated
- Pump design
- horizontal
- Impeller material
- noryl
- Construction
- multi-stage
