Calpeda GQGM 6-21 230V 1,1kW submersible pump with grinder and float switch

Submersible pumps with high power grinder FLOW 3 / 17 mc/h HEAD 4 / 25 m  POWER 0.9 / 1.5 kW

See more

Technical Specifications

Maximum flow [l/min]
250
Maximum head [m]
21
Input voltage [V]
230
Power output - P2 [kW]
1,10

Show all Tech Specs

in stock 5 pcs

962.70 € VAT included

the price includes a recycling fee

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Wastewater pumps
Product No.:
ZB00040277
Sale group:
CEPJ
EAN:
8030485820598
Manuf. No.:
70U41100000

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Maximum immersion depth [m]
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Speed ​​control
  • Capacitor
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda GQGM 6-18 230V 0,9kW submersible pump with grinder and float switch

Product No.: ZB00040276 Sale group: CEPJ EAN: 8030485820987 Manuf. No.: 70U41050000

in stock
4 pcs
Product availability
  • central warehouse 4 pcs

907.83 €

Maximum flow [l/min]
220
Maximum head [m]
18
Input voltage [V]
230
Power output - P2 [kW]
0.90
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
7
Maximum liquid temperature [°C]
35
Maximum particle size [mm]
6
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
external
Construction
submersible
Grinder
YES

Calpeda GQGM 6-21 230V 1,1kW submersible pump with grinder and float switch

Product No.: ZB00040277 Sale group: CEPJ EAN: 8030485820598 Manuf. No.: 70U41100000

in stock
5 pcs
Product availability
  • central warehouse 5 pcs

962.70 €

Maximum flow [l/min]
250
Maximum head [m]
21
Input voltage [V]
230
Power output - P2 [kW]
1,10
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
7,50
Maximum liquid temperature [°C]
35
Maximum particle size [mm]
6
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
external
Construction
submersible
Grinder
YES
You are viewing this variant

Calpeda GQGM 6-25 230V 1,5kW submersible pump with grinder and float switch

Product No.: ZB00040278 Sale group: CEPJ EAN: 8030485811084 Manuf. No.: 70U41150000

in stock
7 pcs
Product availability
  • central warehouse 7 pcs

1,164.09 €

Maximum flow [l/min]
280
Maximum head [m]
25
Input voltage [V]
230
Power output - P2 [kW]
1,50
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
9,50
Maximum liquid temperature [°C]
35
Maximum particle size [mm]
6
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
external
Construction
submersible
Grinder
YES

Product description

Construction

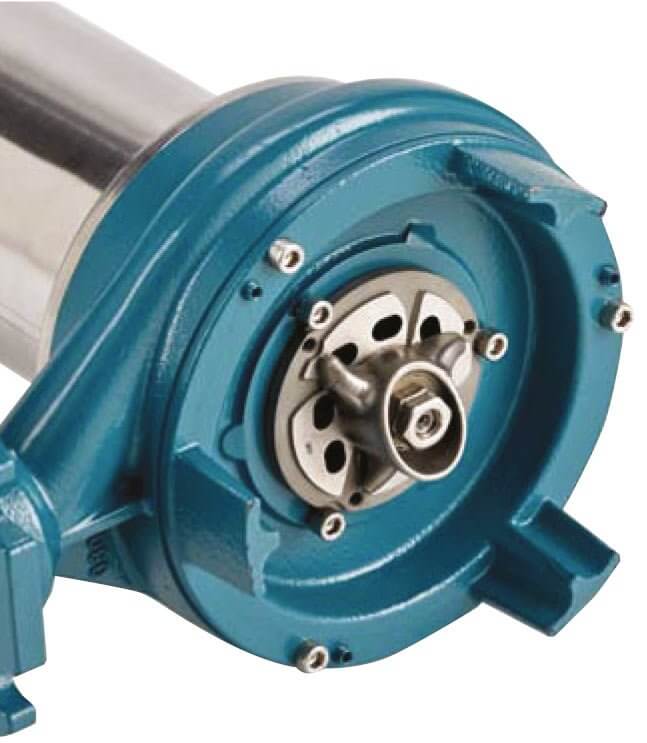

Submersible pumps with high power grinder, with horizontal flanged and threaded delivery port (DN 32 – G 1 1/2”).
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.

Application

Suitable for pumping waste water containing long filamentous, paper and textile materials and organics
They are particularly suitable for use in domestic, residential and industrial installations
Solid passage 6 mm

Instructions

Technical Specifications

Maximum flow [l/min]
250
Maximum head [m]
21
Input voltage [V]
230
Power output - P2 [kW]
1,10
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
7,50
Maximum liquid temperature [°C]
35
Maximum particle size [mm]
6
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
external
Construction
submersible
Grinder
YES
