CALPEDA

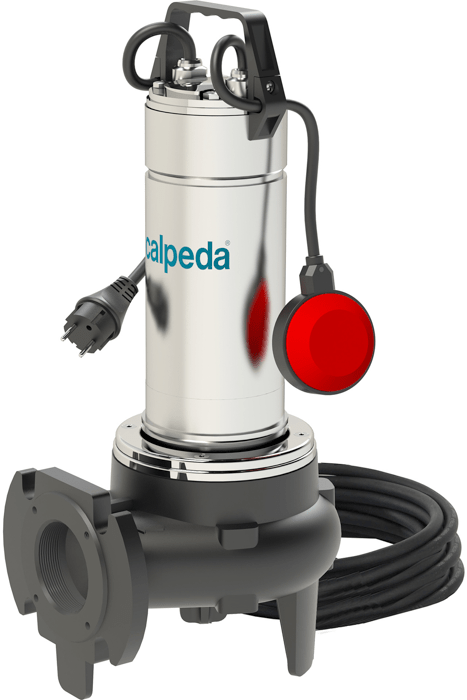

Calpeda GQVM 50-15 230 submersible sewage pump with float switch, cable 10m
Technical Specifications
- Maximum flow [l/min]
- 600
- Maximum head [m]
- 15
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.50
- Brand:
- CALPEDA
- Category:
- Wastewater pumps
- Product No.:
- ZB00067331
- Sale group:
- CEPJ
- EAN:
- 8030485721819
- Manuf. No.:
- 70U81250000
Product variants
-
- Calpeda GQVM 50-8 230V submersible sewage pump with float switch, cable 10m
- ZB00001835
- 400
- 8
- 230
- 0.55
- 2
- 5
- YES
- 4.30
- 35
- 10
- 50
- X8
- YES
- NO
- NO
- integrated
- cast iron
- submersible
- NO
-
Product availability
- central warehouse 9 pcs
- 543.36 €
-
- Calpeda GQVM 50-9 230V submersible sewage pump with float switch, cable 10m
- ZB00001836
- 450
- 9.30
- 230
- 0.75
- 2
- 5
- YES
- 4.80
- 35
- 10
- 50
- X8
- YES
- NO
- NO
- integrated
- cast iron
- submersible
- NO
-
Product availability
- central warehouse 8 pcs
- 603.78 €
-
- Calpeda GQVM 50-11 230V submersible sewage pump with float switch, cable 10m
- ZB00025449
- 550
- 11
- 230
- 0.90
- 2
- 5
- YES
- 6.60
- 35
- 10
- 50
- X8
- YES
- NO
- NO
- integrated
- cast iron
- submersible
- NO
-
Product availability
- central warehouse 4 pcs
- 714.92 €
-
- Calpeda GQVM 50-13 230 submersible sewage pump with float switch, cable 10m
- ZB00001837
- 600
- 12.80
- 230
- 1.10
- 2
- 5
- YES
- 8.40
- 35
- 10
- 50
- X8
- YES
- NO
- NO
- integrated
- cast iron
- submersible
- NO
-
Product availability
- central warehouse 8 pcs
- 724.61 €
-
- Calpeda GQVM 50-15 230 submersible sewage pump with float switch, cable 10m
- ZB00067331
- 600
- 15
- 230
- 1.50
- 2
- 5
- YES
- 13
- 35
- 10
- 50
- X8
- YES
- NO
- NO
- integrated
- cast iron
- submersible
- NO
-
Product availability
- central warehouse 4 pcs
- 1,046.80 €
Variant Product No.
Availability
Price (VAT incl.)
Calpeda GQVM 50-8 230V submersible sewage pump with float switch, cable 10m
Product No.: ZB00001835 Sale group: CEPJ EAN: 8030485585664 Manuf. No.: 70U81050000
543.36 €
- Maximum flow [l/min]
- 400
- Maximum head [m]
- 8
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.55
- Delivery port ["]
- 2
- Maximum immersion depth [m]
- 5
- Float switch
- YES
- Maximum current [A]
- 4.30
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 10
- Maximum particle size [mm]
- 50
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Speed control
- NO
- Capacitor
- integrated
- Impeller material
- cast iron
- Construction
- submersible
- Grinder
- NO
Calpeda GQVM 50-9 230V submersible sewage pump with float switch, cable 10m
Product No.: ZB00001836 Sale group: CEPJ EAN: 8030485574637 Manuf. No.: 70U81100000
603.78 €
- Maximum flow [l/min]
- 450
- Maximum head [m]
- 9.30
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.75
- Delivery port ["]
- 2
- Maximum immersion depth [m]
- 5
- Float switch
- YES
- Maximum current [A]
- 4.80
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 10
- Maximum particle size [mm]
- 50
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Speed control
- NO
- Capacitor
- integrated
- Impeller material
- cast iron
- Construction
- submersible
- Grinder
- NO
Calpeda GQVM 50-11 230V submersible sewage pump with float switch, cable 10m
Product No.: ZB00025449 Sale group: CEPJ EAN: 8030485583981 Manuf. No.: 70U81150000
714.92 €
- Maximum flow [l/min]
- 550
- Maximum head [m]
- 11
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.90
- Delivery port ["]
- 2
- Maximum immersion depth [m]
- 5
- Float switch
- YES
- Maximum current [A]
- 6.60
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 10
- Maximum particle size [mm]
- 50
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Speed control
- NO
- Capacitor
- integrated
- Impeller material
- cast iron
- Construction
- submersible
- Grinder
- NO
Calpeda GQVM 50-13 230 submersible sewage pump with float switch, cable 10m
Product No.: ZB00001837 Sale group: CEPJ EAN: 8030485584858 Manuf. No.: 70U81200000
724.61 €
- Maximum flow [l/min]
- 600
- Maximum head [m]
- 12.80
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.10
- Delivery port ["]
- 2
- Maximum immersion depth [m]
- 5
- Float switch
- YES
- Maximum current [A]
- 8.40
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 10
- Maximum particle size [mm]
- 50
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Speed control
- NO
- Capacitor
- integrated
- Impeller material
- cast iron
- Construction
- submersible
- Grinder
- NO
Calpeda GQVM 50-15 230 submersible sewage pump with float switch, cable 10m
Product No.: ZB00067331 Sale group: CEPJ EAN: 8030485721819 Manuf. No.: 70U81250000
1,046.80 €
- Maximum flow [l/min]
- 600
- Maximum head [m]
- 15
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.50
- Delivery port ["]
- 2
- Maximum immersion depth [m]
- 5
- Float switch
- YES
- Maximum current [A]
- 13
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 10
- Maximum particle size [mm]
- 50
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Speed control
- NO
- Capacitor
- integrated
- Impeller material
- cast iron
- Construction
- submersible
- Grinder
- NO
Product description
Construction
Single-impeller submersible drainage pump, with vertical delivery port, with open impeller.
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.
Applications
- For clean water containing solids up to 10 mm grain size.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and for rainwater collection.
- For irrigation purposes.
Instructions
Technical Specifications
- Maximum flow [l/min]
- 600
- Maximum head [m]
- 15
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.50
- Delivery port ["]
- 2
- Maximum immersion depth [m]
- 5
- Float switch
- YES
- Maximum current [A]
- 13
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 10
- Maximum particle size [mm]
- 50
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Speed control
- NO
- Capacitor
- integrated
- Impeller material
- cast iron
- Construction
- submersible
- Grinder
- NO
