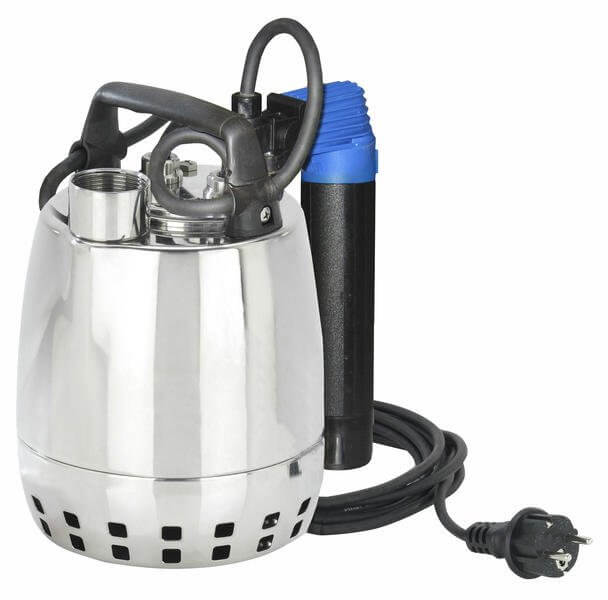

Calpeda GXRM 11GF 230V 0,37kW submersible drainage pump with magnetic float switch, cable 5m

Submersible Pumps in stainless steel FLOW 1.2 / 13.2 mc/h HEAD 1.7 / 12.7 m POWER 0.25 / 0.6 kW

See more

Technical Specifications

Maximum flow [l/min]
200
Maximum head [m]
11
Input voltage [V]
230
Power output - P2 [kW]
0,37

Show all Tech Specs

in stock >10 pcs

388.45 € VAT included

the price includes a recycling fee

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Wastewater pumps
Product No.:
ZB00001857
Sale group:
CEPJ
EAN:
8030485521839
Manuf. No.:
72U70100012

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Maximum immersion depth [m]
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda GXRM 9 230V 0,25kW submersible drainage pump with float switch, cable 5m

Product No.: ZB00001790 Sale group: CEPJ EAN: 8030485473244 Manuf. No.: 72U70050000

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

299.85 €

Maximum flow [l/min]
170
Maximum head [m]
9
Input voltage [V]
230
Power output - P2 [kW]
0,25
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
2,50
Maximum liquid temperature [°C]
40
Maximum particle size [mm]
10
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Calpeda GXRM 9 GF 230V 0,25kW drainage pump with magnetic float switch, cable 5m

Product No.: ZB00001856 Sale group: CEPJ EAN: 8030485505143 Manuf. No.: 72U70050009

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

348.18 €

Maximum flow [l/min]
170
Maximum head [m]
9
Input voltage [V]
230
Power output - P2 [kW]
0,25
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
2,50
Maximum liquid temperature [°C]
40
Maximum particle size [mm]
10
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Calpeda GXRM 11 230V 0,37kW submersible drainage pump with float switch, cable 5m

Product No.: ZB00001791 Sale group: CEPJ EAN: 8030485473251 Manuf. No.: 72U70100000

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

348.18 €

Maximum flow [l/min]
200
Maximum head [m]
11
Input voltage [V]
230
Power output - P2 [kW]
0,37
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
3,50
Maximum liquid temperature [°C]
40
Cable length [m]
5
Maximum particle size [mm]
10
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Calpeda GXRM 11GF 230V 0,37kW submersible drainage pump with magnetic float switch, cable 5m

Product No.: ZB00001857 Sale group: CEPJ EAN: 8030485521839 Manuf. No.: 72U70100012

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

388.45 €

Maximum flow [l/min]
200
Maximum head [m]
11
Input voltage [V]
230
Power output - P2 [kW]
0,37
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
3,50
Maximum liquid temperature [°C]
40
Maximum particle size [mm]
10
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO
You are viewing this variant

Calpeda GXRM 13 230V 0,45kW submersible drainage pump with float switch, cable 5m

Product No.: ZB00001792 Sale group: CEPJ EAN: 8030485473268 Manuf. No.: 72U70150000

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

370.34 €

Maximum flow [l/min]
220
Maximum head [m]
12,70
Input voltage [V]
230
Power output - P2 [kW]
0,45
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
4,50
Maximum liquid temperature [°C]
40
Maximum particle size [mm]
10
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Calpeda GXRM 13GF 230V 0,45kW submersible drainage pump with magnetic float switch, cable 5m

Product No.: ZB00001861 Sale group: CEPJ EAN: 8030485521860 Manuf. No.: 72U70150010

in stock
9 pcs
Product availability
  • central warehouse 9 pcs

414.66 €

Maximum flow [l/min]
220
Maximum head [m]
12,70
Input voltage [V]
230
Power output - P2 [kW]
0,45
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
4,50
Maximum liquid temperature [°C]
40
Maximum particle size [mm]
10
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Product description

Construction

Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port and with open impeller.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Double shaft seal with oil chamber.
Minimum dimension and high levels of performance, for use in many different applications, head up to 12,7 m and flow rates up to 220 liters/min.

Applications

- For clean water containing solids up to 10 mm grain size.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and
for rainwater collection.
- For irrigation purposes.
For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.

Instructions

Technical Specifications

Maximum flow [l/min]
200
Maximum head [m]
11
Input voltage [V]
230
Power output - P2 [kW]
0,37
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
3,50
Maximum liquid temperature [°C]
40
Maximum particle size [mm]
10
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO
