Calpeda Meta pressure boosting system with integrated frequency converter

MÈTA is a plug and play solution, the pump is equipped with an integrated pressure transducer, an integrated check valve and a built-in pressure vessel. See more

Technical Specifications

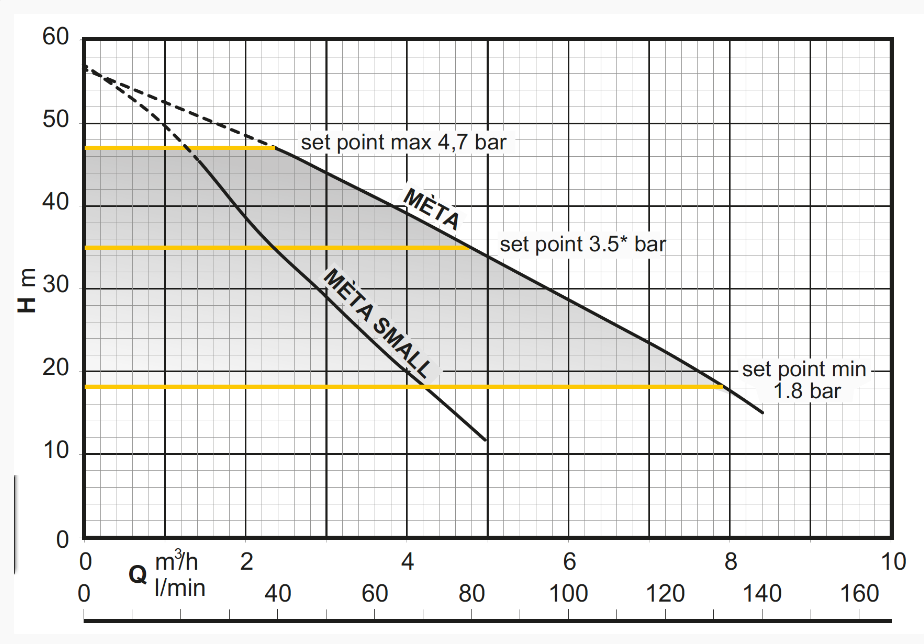

Maximum flow [l/min]
83.30 - 140
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
1.10

Show all Tech Specs

in stock >50 pcs

from 731.24 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001076

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Power input - P1 [kW]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda META 230V pump with integrated frequency converter

Product No.: ZB00062513 Sale group: CEPJ EAN: 8030485600831 Manuf. No.: T663A10210S0

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

915.39 €

Maximum flow [l/min]
140
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
1,10
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
4
Drinking water certificate
NO
Maximum current [A]
5,90
Maximum liquid temperature [°C]
35
Cable length [m]
1,50
Protection [IP]
X4
Automatic thermal protection
YES
Dry run protection
YES
Off switch
YES
Speed ​​control
YES
Capacitor
integrated
Pump design
horizontal
Impeller material
stainless steel
Construction
self priming

Calpeda META SMALL 230V pump with integrated frequency converter

Product No.: ZB00068945 Sale group: CEPJ EAN: 8030485798279 Manuf. No.: T663A00200S0

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

731.24 €

Maximum flow [l/min]
83,30
Maximum head [m]
55
Input voltage [V]
230
Suction port ["]
1
Power input - P1 [kW]
0,65
Delivery port ["]
1
Maximum suction lift [m]
3
Drinking water certificate
NO
Maximum current [A]
2,80
Maximum liquid temperature [°C]
35
Cable length [m]
1,50
Protection [IP]
X4
Automatic thermal protection
YES
Dry run protection
YES
Off switch
YES
Speed ​​control
YES
Capacitor
integrated
Pump design
horizontal
Impeller material
stainless steel
Construction
self priming

Product description

Self-priming booster set with built in frequency converter. MÈTA is a plug and play solution, the pump is equipped with an integrated pressure transducer, an integrated check valve and a built-in pressure vessel. The Vsd controls the start and stop of the pump and allows to keep a constant pressure.

Applications

  • For water supply systems.
  • For domestic use, for garden use and irrigation.


Features

  • integrated frequency converter
  • built-in pressure vessel
  • high efficiency asynchronous motor
  • motor power control
  • programmable re-start pressure
  • no hydraulic losses due to the measuring devices
  • voltage and current control
  • monitoring of maximum starting current
  • noise level below 50 dB(A) (Meta Small)


Protections

  • dry-run protection
  • detects the presence of air in the pump casing
  • overload control and overheating motor control
  • power supply control
  • starts per hour control
  • detects small leakages in the system


Benefits

  • EASY TO INSTALL
    Plug And play solution
  • ECONOMIC SAVING
    High efficiency asynchronous motor
    Up to 450Wh less energy consumption compared to a standard solution
  • EASY TO USE
    Equipped with a programmable software and, thanks to the analogic pressure sensor, the product allows to set the restart pressure

Instructions

Technical Specifications

Maximum flow [l/min]
83.30 - 140
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
1.10
Suction port ["]
1
Power input - P1 [kW]
0.65
Delivery port ["]
1
Maximum suction lift [m]
3 - 4
Drinking water certificate
NO
Maximum current [A]
2.80 - 5.90
Maximum liquid temperature [°C]
35
Cable length [m]
1.50
Protection [IP]
X4
Automatic thermal protection
YES
Dry run protection
YES
Off switch
YES
Speed ​​control
YES
Capacitor
integrated
Pump design
horizontal
Impeller material
stainless steel
Construction
self priming
