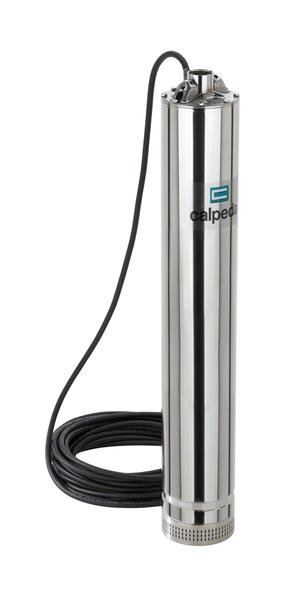

Calpeda MXSM 504 0,9kW 230V, 15m cable

Multi-Stage Submersible Clean Water Pumps in stainless steel FLOW 1 / 11 mc/h HEAD 12 / 105 m POWER 0.55 / 3 kW

See more

Technical Specifications

Maximum flow [l/min]
133
Maximum head [m]
43
Input voltage [V]
230
Power output - P2 [kW]
0.90

Show all Tech Specs

on demand check availability

568.73 € VAT included

On demand

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Submersible pumps
Product No.:
ZB00025592
Sale group:
CECK
EAN:
8030485713364
Manuf. No.:
72G04041000

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda MXSM 503 0,55kW 230V, 15m cable

Product No.: ZB00025591 Sale group: CECK EAN: 8030485746973 Manuf. No.: 72G04031000

on demand
check availability
Product availability
  • central warehouse 0 pcs

555.01 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
32.20
Input voltage [V]
230
Power output - P2 [kW]
0.55
Rated flow [l/m]
83.30
Rated head [m]
21.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
4.10
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 503 CG 0,55kW 230V with float switch, 15m cable

Product No.: ZB00001405 Sale group: CECK EAN: 8030485755890 Manuf. No.: 72G04031100

on demand
check availability
Product availability
  • central warehouse 0 pcs

590.01 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
32,20
Input voltage [V]
230
Power output - P2 [kW]
0,55
Rated flow [l/m]
83,30
Rated head [m]
21,50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
4,10
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 504 0,9kW 230V, 15m cable

Product No.: ZB00025592 Sale group: CECK EAN: 8030485713364 Manuf. No.: 72G04041000

on demand
check availability
Product availability
  • central warehouse 0 pcs

568.73 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
43
Input voltage [V]
230
Power output - P2 [kW]
0.90
Rated flow [l/m]
83.30
Rated head [m]
30.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
6
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal
You are viewing this variant

Calpeda MXSM 504 CG 0,9kW 230V with float switch, 15m cable

Product No.: ZB00025593 Sale group: CECK EAN: 8030485688853 Manuf. No.: 72G04041100

on demand
check availability
Product availability
  • central warehouse 0 pcs

603.45 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
43
Input voltage [V]
230
Power output - P2 [kW]
0.90
Rated flow [l/m]
83.30
Rated head [m]
30.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
6
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 505 1,1kW 230V, 15m cable

Product No.: ZB00025594 Sale group: CECK EAN: 8030485705727 Manuf. No.: 72G04051000

on demand
check availability
Product availability
  • central warehouse 0 pcs

629.11 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
53
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
83.30
Rated head [m]
35.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
7
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 505 CG 1,1kW 230V with float switch, 15m cable

Product No.: ZB00025595 Sale group: CECK EAN: 8030485688860 Manuf. No.: 72G04051100

on demand
check availability
Product availability
  • central warehouse 0 pcs

662.72 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
53
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
83.30
Rated head [m]
35.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
7
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 506 1,1kW 230V, 15m cable

Product No.: ZB00025596 Sale group: CECK EAN: 8030485695622 Manuf. No.: 72G04061000

on demand
check availability
Product availability
  • central warehouse 0 pcs

670.43 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
66.50
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
83.30
Rated head [m]
45
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
8.30
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 506 CG 1,1kW 230V with float switch, 15m cable

Product No.: ZB00025597 Sale group: CECK EAN: 8030485671619 Manuf. No.: 72G04061100

on demand
check availability
Product availability
  • central warehouse 0 pcs

704.13 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
66.50
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
83.30
Rated head [m]
45
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
8.30
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 507 1,5kW 230V, 15m cable

Product No.: ZB00025598 Sale group: CECK EAN: 8030485697107 Manuf. No.: 72G04071000

on demand
check availability
Product availability
  • central warehouse 0 pcs

721.17 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
78.50
Input voltage [V]
230
Power output - P2 [kW]
1.50
Rated flow [l/m]
83.30
Rated head [m]
54.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
12
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 507 CG 1,5kW 230V with float switch, 15m cable

Product No.: ZB00025599 Sale group: CECK EAN: 8030485711100 Manuf. No.: 72G04071100

on demand
check availability
Product availability
  • central warehouse 0 pcs

754.93 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
78.50
Input voltage [V]
230
Power output - P2 [kW]
1.50
Rated flow [l/m]
83.30
Rated head [m]
54.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
12
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 508 1,5kW 230V, 15m cable

Product No.: ZB00025600 Sale group: CECK EAN: 8030485709251 Manuf. No.: 72G04081000

on demand
check availability
Product availability
  • central warehouse 0 pcs

756.76 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
88.50
Input voltage [V]
230
Power output - P2 [kW]
1.50
Rated flow [l/m]
83.30
Rated head [m]
60
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
13
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 508 CG 1,5kW 230V with float switch, 15m cable

Product No.: ZB00001406 Sale group: CECK EAN: 8030485696360 Manuf. No.: 72G04081100

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

790.39 €

Maximum flow [l/min]
133
Maximum head [m]
88.50
Input voltage [V]
230
Power output - P2 [kW]
1.50
Rated flow [l/m]
83.30
Rated head [m]
60
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
YES
Maximum current [A]
13
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Calpeda MXSM 509 2,2kW 230V, 15m cable

Product No.: ZB00025601 Sale group: CECK EAN: 8030485725695 Manuf. No.: 72G04091000

on demand
check availability
Product availability
  • central warehouse 0 pcs

840.58 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
101
Input voltage [V]
230
Power output - P2 [kW]
2.20
Rated flow [l/m]
83.30
Rated head [m]
71
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
14.30
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Product description

Construction

Close coupled multi-stage submersible pumps.
All parts in contact with the fluid both internal and external are in chrome-nickle stainless steel.
MXSM with built-in capacitor, accessible through the delivery casing.
Hydraulics located below the motor with the motor cooled by the pumped fluid. Safe operation is possible with the motor only partially submerged.
Double shaft seal with oil chamber.
The suction strainer prevents the entrance of solids with diameter bigger than 2 mm.

Applications

- For water supply from wells, tanks or reservoirs.
- For domestic, civil and industrial applications, for garden use, irrigation and rain water harvesting systems.

Instructions

Technical Specifications

Maximum flow [l/min]
133
Maximum head [m]
43
Input voltage [V]
230
Power output - P2 [kW]
0.90
Rated flow [l/m]
83.30
Rated head [m]
30.50
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
6
Maximum liquid temperature [°C]
35
Cable length [m]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
133
Impeller material
stainless steel
Construction
centrifugal

Accessories

previous next
