Calpeda MXSM 9xx multi-stage submersible clean water pumps in stainless steel

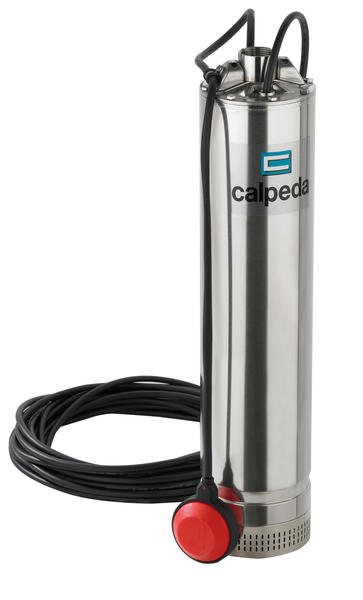

Calpeda MXSM 903 CG 1,1kW 230V with float switch, 15m cable
Technical Specifications
- Maximum flow [l/min]
- 183.30
- Maximum head [m]
- 34.50
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.10
- Brand:
- CALPEDA
- Category:
- Submersible pumps
- Product No.:
- ZB00025603
- Sale group:
- CECK
- EAN:
- 8030485740582
- Manuf. No.:
- 72G05031100
Product variants
-
- Calpeda MXSM 903 1,1kW 230V, 15m cable
- ZB00025602
- 183.30
- 34.50
- 230
- 1.10
- 150
- 21.50
- 5/4
- 5
- 20
- YES
- NO
- 7
- 35
- 15
- X8
- YES
- NO
- NO
- NO
- integrated
- 133
- stainless steel
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 662.48 €
- Check availability
-
- Calpeda MXSM 903 CG 1,1kW 230V with float switch, 15m cable
- ZB00025603
- 183.30
- 34.50
- 230
- 1.10
- 150
- 21.50
- 5/4
- 5
- 20
- YES
- YES
- 7
- 35
- 15
- X8
- YES
- NO
- NO
- NO
- integrated
- 133
- stainless steel
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 692.93 €
- Check availability
-
- Calpeda MXSM 904 1,5kW 230V, 15m cable
- ZB00025604
- 183.30
- 45.50
- 230
- 1.50
- 150
- 30
- 5/4
- 5
- 20
- YES
- NO
- 9
- 35
- 15
- X8
- YES
- NO
- NO
- NO
- integrated
- 133
- stainless steel
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 739.50 €
- Check availability
-
- Calpeda MXSM 904 CG 1,5kW 230V with float switch, 15m cable
- ZB00025605
- 183.30
- 45.50
- 230
- 1.50
- 150
- 30
- 5/4
- 5
- 20
- YES
- YES
- 9
- 35
- 15
- X8
- YES
- NO
- NO
- NO
- integrated
- 133
- stainless steel
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 774.31 €
- Check availability
-
- Calpeda MXSM 905 2,2kW 230V, 15m cable
- ZB00025606
- 183.30
- 58
- 230
- 2.20
- 150
- 38.50
- 5/4
- 5
- 20
- YES
- NO
- 13
- 35
- 15
- X8
- YES
- NO
- NO
- NO
- integrated
- 133
- stainless steel
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 896.40 €
- Check availability
-
- Calpeda MXSM 906 2,2kW 230V, 15m cable
- ZB00025607
- 183.30
- 70
- 230
- 2.20
- 150
- 46.50
- 5/4
- 5
- 20
- YES
- NO
- 14.30
- 35
- 15
- X8
- YES
- NO
- NO
- NO
- integrated
- 133
- stainless steel
- centrifugal
-
Product availability
- central warehouse 0 pcs
- 1,028.37 €
- Check availability
Variant Product No.
Availability
Price (VAT incl.)
Calpeda MXSM 903 1,1kW 230V, 15m cable
Product No.: ZB00025602 Sale group: CECK EAN: 8030485718543 Manuf. No.: 72G05031000
662.48 €
- Maximum flow [l/min]
- 183.30
- Maximum head [m]
- 34.50
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.10
- Rated flow [l/m]
- 150
- Rated head [m]
- 21.50
- Delivery port ["]
- 5/4
- Pump diameter ["]
- 5
- Maximum immersion depth [m]
- 20
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum current [A]
- 7
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 15
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 133
- Impeller material
- stainless steel
- Construction
- centrifugal
Calpeda MXSM 903 CG 1,1kW 230V with float switch, 15m cable
Product No.: ZB00025603 Sale group: CECK EAN: 8030485740582 Manuf. No.: 72G05031100
692.93 €
- Maximum flow [l/min]
- 183.30
- Maximum head [m]
- 34.50
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.10
- Rated flow [l/m]
- 150
- Rated head [m]
- 21.50
- Delivery port ["]
- 5/4
- Pump diameter ["]
- 5
- Maximum immersion depth [m]
- 20
- Drinking water certificate
- YES
- Float switch
- YES
- Maximum current [A]
- 7
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 15
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 133
- Impeller material
- stainless steel
- Construction
- centrifugal
You are viewing this variant
Calpeda MXSM 904 1,5kW 230V, 15m cable
Product No.: ZB00025604 Sale group: CECK EAN: 8030485743149 Manuf. No.: 72G05041000
739.50 €
- Maximum flow [l/min]
- 183.30
- Maximum head [m]
- 45.50
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.50
- Rated flow [l/m]
- 150
- Rated head [m]
- 30
- Delivery port ["]
- 5/4
- Pump diameter ["]
- 5
- Maximum immersion depth [m]
- 20
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum current [A]
- 9
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 15
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 133
- Impeller material
- stainless steel
- Construction
- centrifugal
Calpeda MXSM 904 CG 1,5kW 230V with float switch, 15m cable
Product No.: ZB00025605 Sale group: CECK EAN: 8030485734086 Manuf. No.: 72G05041100
774.31 €
- Maximum flow [l/min]
- 183.30
- Maximum head [m]
- 45.50
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.50
- Rated flow [l/m]
- 150
- Rated head [m]
- 30
- Delivery port ["]
- 5/4
- Pump diameter ["]
- 5
- Maximum immersion depth [m]
- 20
- Drinking water certificate
- YES
- Float switch
- YES
- Maximum current [A]
- 9
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 15
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 133
- Impeller material
- stainless steel
- Construction
- centrifugal
Calpeda MXSM 905 2,2kW 230V, 15m cable
Product No.: ZB00025606 Sale group: CECK EAN: 8030485703440 Manuf. No.: 72G05051000
896.40 €
- Maximum flow [l/min]
- 183.30
- Maximum head [m]
- 58
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 2.20
- Rated flow [l/m]
- 150
- Rated head [m]
- 38.50
- Delivery port ["]
- 5/4
- Pump diameter ["]
- 5
- Maximum immersion depth [m]
- 20
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum current [A]
- 13
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 15
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 133
- Impeller material
- stainless steel
- Construction
- centrifugal
Calpeda MXSM 906 2,2kW 230V, 15m cable
Product No.: ZB00025607 Sale group: CECK EAN: 8030485703518 Manuf. No.: 72G05061000
1,028.37 €
- Maximum flow [l/min]
- 183.30
- Maximum head [m]
- 70
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 2.20
- Rated flow [l/m]
- 150
- Rated head [m]
- 46.50
- Delivery port ["]
- 5/4
- Pump diameter ["]
- 5
- Maximum immersion depth [m]
- 20
- Drinking water certificate
- YES
- Float switch
- NO
- Maximum current [A]
- 14.30
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 15
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 133
- Impeller material
- stainless steel
- Construction
- centrifugal
Product description
Construction
Close coupled multi-stage submersible pumps.
All parts in contact with the fluid both internal and external are in chrome-nickle stainless steel.
MXSM with built-in capacitor, accessible through the delivery casing.
Hydraulics located below the motor with the motor cooled by the pumped fluid. Safe operation is possible with the motor only partially submerged.
Double shaft seal with oil chamber.
The suction strainer prevents the entrance of solids with diameter bigger than 2 mm.
Applications
- For water supply from wells, tanks or reservoirs.
- For domestic, civil and industrial applications, for garden use, irrigation and rain water harvesting systems.
Instructions
Technical Specifications
- Maximum flow [l/min]
- 183.30
- Maximum head [m]
- 34.50
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.10
- Rated flow [l/m]
- 150
- Rated head [m]
- 21.50
- Delivery port ["]
- 5/4
- Pump diameter ["]
- 5
- Maximum immersion depth [m]
- 20
- Drinking water certificate
- YES
- Float switch
- YES
- Maximum current [A]
- 7
- Maximum liquid temperature [°C]
- 35
- Cable length [m]
- 15
- Protection [IP]
- X8
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Maximum borehole diameter [mm]
- 133
- Impeller material
- stainless steel
- Construction
- centrifugal
