Calpeda NG 6 self-priming jet pumps 3x400V

Self-Priming Pumps FLOW 0.25 / 9.5 mc/h HEAD 15.5 / 74.5 m POWER 0.55 / 22 kW

See more

Technical Specifications

Maximum flow [l/min]
100 - 158
Maximum head [m]
51.50 - 64.50
Input voltage [V]
3x400
Power output - P2 [kW]
1.50

Show all Tech Specs

on demand check availability

from 668.82 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001265

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NG 6/18E 1,5kW 230/400V 2900rpm

Product No.: ZB00014070 Sale group: CECK EAN: 8030485899686 Manuf. No.: 70A00044200

on demand
check availability
Product availability
  • central warehouse 0 pcs

668.82 €

Not sellable online

Maximum flow [l/min]
100
Maximum head [m]
64.50
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Suction port ["]
6/4
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
4.30
Maximum liquid temperature [°C]
40
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
self priming

Calpeda NG 6/22/A 1,5kW 230/400V 2900rpm

Product No.: ZB00025730 Sale group: CECK EAN: 8030485895862 Manuf. No.: 70A00045200

on demand
check availability
Product availability
  • central warehouse 0 pcs

668.82 €

Not sellable online

Maximum flow [l/min]
158
Maximum head [m]
51.50
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Suction port ["]
6/4
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
4.30
Maximum liquid temperature [°C]
40
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
self priming

Product description

Construction

Close-coupled self-priming shallow well jet pumps with built-in ejector.

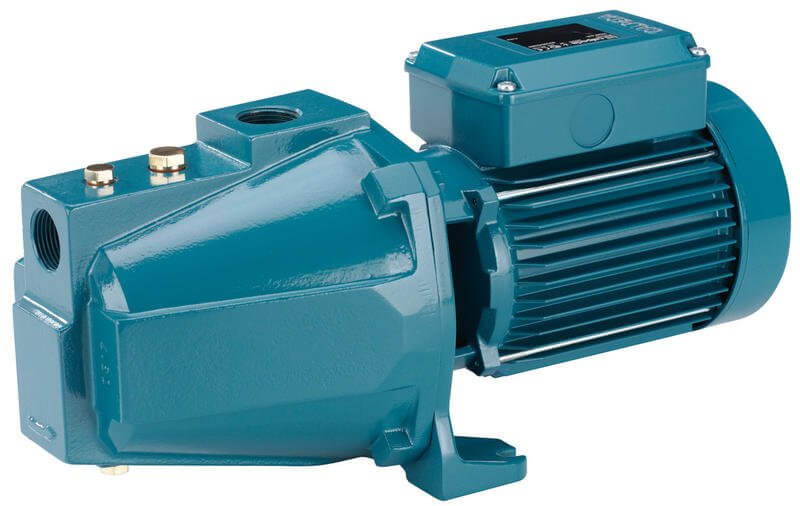

NG: version with pump casing and lanter bracket in cast iron.

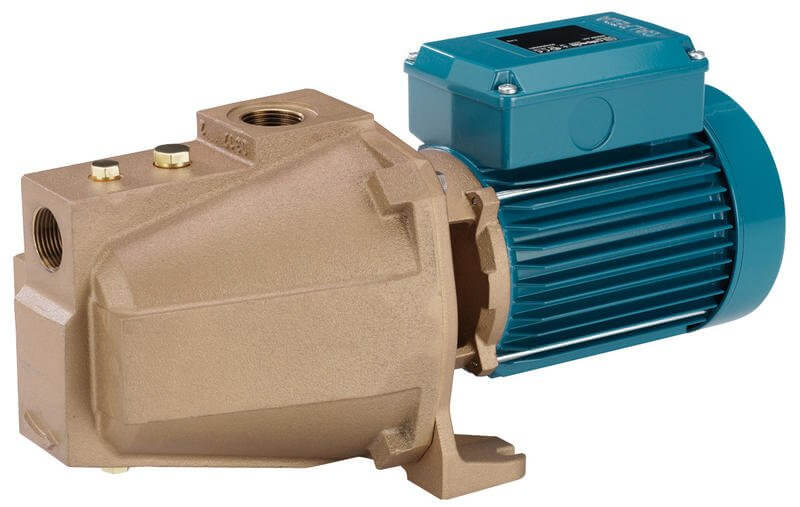

B-NG: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

- For drawing water out of a well.
- As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).
- For clean liquids or slightly dirty surface water.
- For garden use.
- For washing with a jet of water.

Instructions

Technical Specifications

Maximum flow [l/min]
100 - 158
Maximum head [m]
51.50 - 64.50
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Suction port ["]
6/4
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
4.30
Maximum liquid temperature [°C]
40
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
self priming
