Calpeda NM 12 close coupled centrifugal pumps with threaded ports 3x400V
![](/-/media/Images/commerce/MAS00/12/29/HO_obrazek.jpg?mh=233&mw=233&hash=C559B11A42677B092087A5039A46F234)
Skip to content | Go to the main menu | Go to search
Don't have an account? Registration
CALPEDA
Variant Product No.
Availability
Price (VAT incl.)
Product No.: ZB00014103 Sale group: CECP EAN: 8030485909293 Manuf. No.: 6000019300000
728.31 €
Product No.: ZB00014048 Sale group: CECP EAN: 8030485634829 Manuf. No.: 6000021200000
819.62 €
Product No.: ZB00001509 Sale group: CECP EAN: 8030485893523 Manuf. No.: 6000024300000
925.51 €

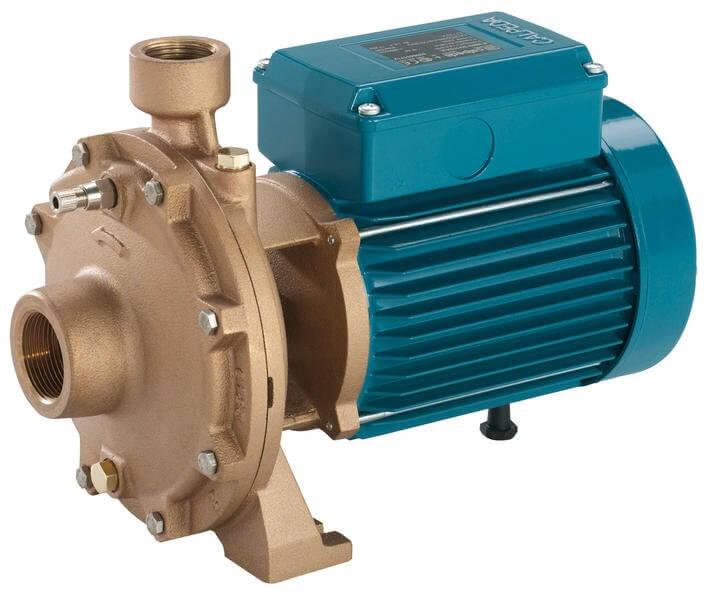

Close-coupled, centrifugal pumps; electric motor with extended shaft directly connected to the pump.
NM: single-impeller.
NMD: with two back-to-back impellers (with axial thrust balancing).
Connections: threaded ports ISO 228/1 (BS 2779).
NM, NMD: version with pump casing and lanter bracket in cast iron.
B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
For water supply
For heating, air-conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation
