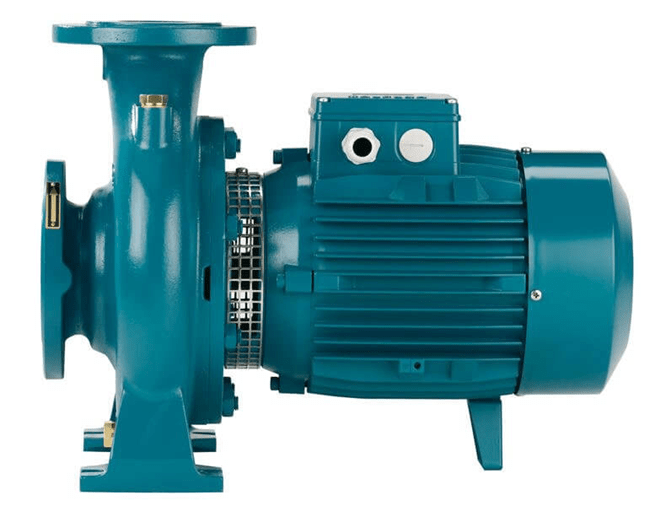

Calpeda NM 32/12D 230/400V 0,75kW 2900rpm

Close Coupled Centrifugal Pumps with flanged connections See more

Technical Specifications

Maximum flow [l/min]
250
Maximum head [m]
18
Input voltage [V]
3x400
Power output - P2 [kW]
0.75

Show all Tech Specs

on demand check availability

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us by email [email protected]

550.66 € VAT included

Not sellable online

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
ZB00001512
Sale group:
CECP
EAN:
8030485001010
Manuf. No.:
6040004100000

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NM 32/12FE 230/400V 0,55kW 2900rpm

Product No.: ZB00001475 Sale group: CECP EAN: 8030485000990 Manuf. No.: 6040002100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

520.24 €

Not sellable online

Maximum flow [l/min]
250
Maximum head [m]
12.50
Input voltage [V]
3x400
Power output - P2 [kW]
0.55
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda NM 32/12D 230/400V 0,75kW 2900rpm

Product No.: ZB00001512 Sale group: CECP EAN: 8030485001010 Manuf. No.: 6040004100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

550.66 €

Not sellable online

Maximum flow [l/min]
250
Maximum head [m]
18
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock
You are viewing this variant

Calpeda NM 32/12A/A 230/400V 1,1kW 2900rpm

Product No.: ZB00001474 Sale group: CECP Manuf. No.: 6040006200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

561.57 €

Not sellable online

Maximum flow [l/min]
250
Maximum head [m]
23
Input voltage [V]
3x400
Power output - P2 [kW]
1.10
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2.70
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda NM 32/16B/A 230/400V 1,5kW 2900rpm

Product No.: ZB00014000 Sale group: CECP EAN: 8030485896302 Manuf. No.: 6040012200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

660.54 €

Not sellable online

Maximum flow [l/min]
280
Maximum head [m]
29.50
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
4.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda NM 32/12S/A 230/400V 1,5kW 2900rpm

Product No.: ZB00014052 Sale group: CECP EAN: 8030485896005 Manuf. No.: 6040008200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

620.22 €

Not sellable online

Maximum flow [l/min]
400
Maximum head [m]
23.50
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
4.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda NM 32/16A/B 230/400V 2,2kW 2900rpm

Product No.: ZB00001476 Sale group: CECP EAN: 8030485909354 Manuf. No.: 6040016300000

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

756.32 €

Not sellable online

Maximum flow [l/min]
280
Maximum head [m]
36
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
5.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda NM 32/20D/B 230/400V 2,2kW 2900rpm

Product No.: ZB00001582 Sale group: CECP EAN: 8030485910831 Manuf. No.: 6040020300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

818.80 €

Not sellable online

Maximum flow [l/min]
220
Maximum head [m]
38
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
5.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda NM 32/20C/A 230/400V 3,0kW 2900rpm

Product No.: ZB00001478 Sale group: CECP EAN: 8030485634720 Manuf. No.: 6040024200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

919.53 €

Not sellable online

Maximum flow [l/min]
280
Maximum head [m]
45
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
6.60
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda NM 32/20A/B 400/690V 4,0kW 2900rpm

Product No.: ZB00001477 Sale group: CECP EAN: 8030485893882 Manuf. No.: 6040030300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,044.80 €

Not sellable online

Maximum flow [l/min]
280
Maximum head [m]
58
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
9.60
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda NM 32L/16C 230/400V 2,2kW 2900rpm

Product No.: ZB00064721 Sale group: CECP EAN: 8030485506461 Manuf. No.: 6040231000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

834.94 €

Not sellable online

Maximum flow [l/min]
450
Maximum head [m]
25.10
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
5.30
Maximum liquid temperature [°C]
90
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM 32L/16B 230/400V 3kW 2900rpm

Product No.: ZB00061098 Sale group: CECP EAN: 8030485506454 Manuf. No.: 6040233000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

913.05 €

Not sellable online

Maximum flow [l/min]
483
Maximum head [m]
30.40
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
6.60
Maximum liquid temperature [°C]
90
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM 32L/16A 400/690V 4kW 2900rpm

Product No.: ZB00064722 Sale group: CECP EAN: 8030485506195 Manuf. No.: 6040236000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,102.45 €

Not sellable online

Maximum flow [l/min]
533
Maximum head [m]
39.90
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
6.60
Maximum liquid temperature [°C]
90
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM 32L/20C 400/690V 4kW 2900rpm

Product No.: ZB00064723 Sale group: CECP EAN: 8030485506485 Manuf. No.: 6040238000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,153.27 €

Not sellable online

Maximum flow [l/min]
450
Maximum head [m]
42.10
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
6.60
Maximum liquid temperature [°C]
90
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM 32L/20B 400/690V 5,5kW 2900rpm

Product No.: ZB00064724 Sale group: CECP EAN: 8030485506478 Manuf. No.: 6040240000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,582.92 €

Not sellable online

Maximum flow [l/min]
483
Maximum head [m]
51.70
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
10.80
Maximum liquid temperature [°C]
90
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM 32L/20A 400/690V 7,5kW 2900rpm

Product No.: ZB00064725 Sale group: CECP EAN: 8030485499299 Manuf. No.: 6040242000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,723.17 €

Not sellable online

Maximum flow [l/min]
533
Maximum head [m]
59.40
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
14.30
Maximum liquid temperature [°C]
90
Protection [IP]
55
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Product description

Construction

Close-coupled centrifugal pumps; electric motor with extended shaft directly connected to the pump up to 30 kW, new bracket construction for standard motors (stub-shaft construction) from 37 to 75 kW with integrated thrust bearing.
Pump casing with axial suction and radial delivery on top, main dimensions and performance according to EN 733.

NM: version with pump casing and lanter bracket in cast iron.
B-NM: version with pump casing and lanter bracket/casing cover in bronze (the pumps are supplied fully painted).

Connections: Flanges according to PN 10, EN 1092-2.

Counter-flanges (on request):
from NM 32/.. to NM 50/… : Screwed flanges EN 1092-1, PN 16.
from NM 65/.. to NMS 100/… : Flanges for welding EN 1092-1, PN 10.

Applications

For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0,2%)
For water supply
For heating, air conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation

Instructions

Technical Specifications

Maximum flow [l/min]
250
Maximum head [m]
18
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Suction port ["]
DN50
Delivery port ["]
DN32
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock
