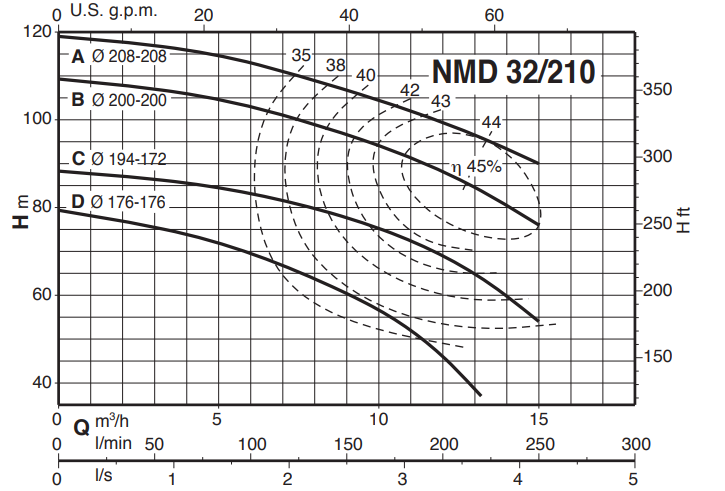

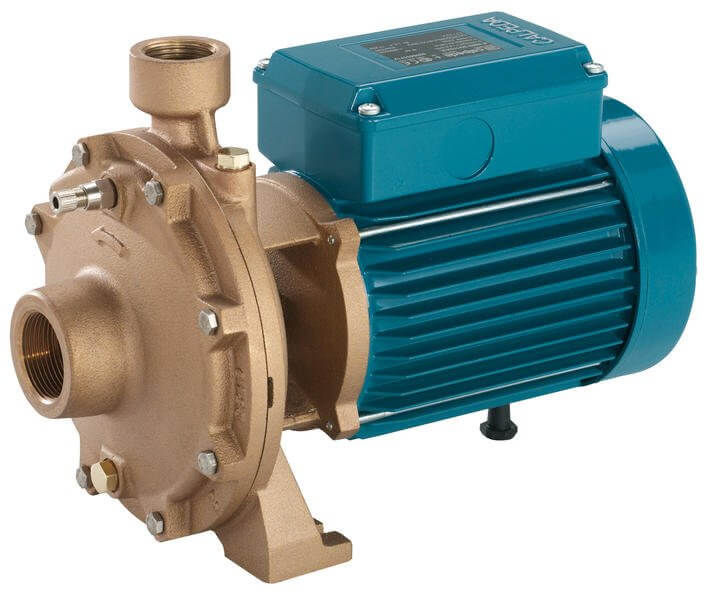

Calpeda NMD 32 close coupled centrifugal pumps with threaded ports 3x400V

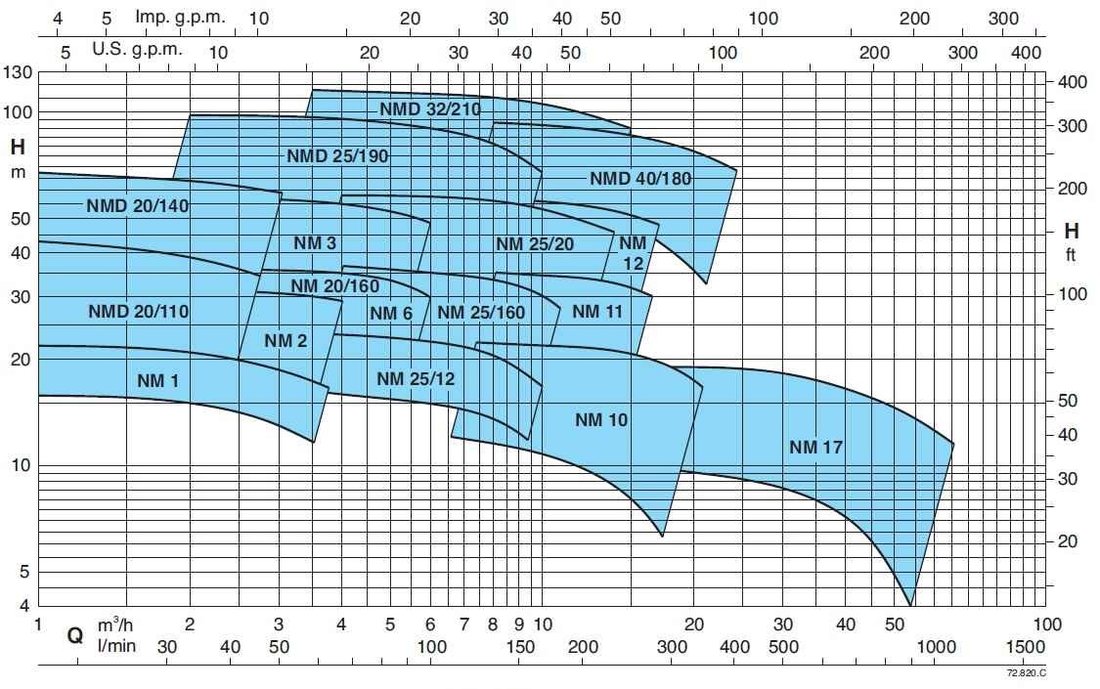

Close Coupled Centrifugal Pumps with threaded ports See more

Technical Specifications

Maximum flow [l/min]
220 - 250
Maximum head [m]
71 - 114
Input voltage [V]
3x400
Power output - P2 [kW]
4 - 9.20

Show all Tech Specs

in stock 4 pcs

from 1,362.21 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001240

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NMD 32/210D/B 400/690V 4,0kW 2900rpm

Product No.: ZB00001425 Sale group: CECP EAN: 8030485895268 Manuf. No.: 60200143000

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

1,362.21 €

Not sellable online

Maximum flow [l/min]
220
Maximum head [m]
71
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
2
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
9.60
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock with double impeller

Calpeda NMD 32/210C/A 400/690V 5,5kW 2900rpm

Product No.: ZB00001545 Sale group: CECP EAN: 8030485591429 Manuf. No.: 60200162000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,563.05 €

Not sellable online

Maximum flow [l/min]
250
Maximum head [m]
84
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Suction port ["]
2
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
10.90
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock with double impeller

Calpeda NMD 32/210B/A 400/690V 7,5kW 2900rpm

Product No.: ZB00013996 Sale group: CECP EAN: 8030485592396 Manuf. No.: 60200182000

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

1,758.41 €

Not sellable online

Maximum flow [l/min]
250
Maximum head [m]
104
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Suction port ["]
2
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
14.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock with double impeller

Calpeda NMD 32/210A/B 400/690V 9,2kW 2900rpm

Product No.: ZB00025867 Sale group: CECP EAN: 8030485869269 Manuf. No.: 60200203000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,068.92 €

Not sellable online

Maximum flow [l/min]
250
Maximum head [m]
114
Input voltage [V]
3x400
Power output - P2 [kW]
9.20
Suction port ["]
2
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
18.50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock with double impeller

Product description

Construction

Close-coupled, centrifugal pumps; electric motor with extended shaft directly connected to the pump.

NM: single-impeller.
NMD: with two back-to-back impellers (with axial thrust balancing).

Connections: threaded ports ISO 228/1 (BS 2779).

NM, NMD: version with pump casing and lanter bracket in cast iron.
B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
For water supply
For heating, air-conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation

Instructions

Technical Specifications

Maximum flow [l/min]
220 - 250
Maximum head [m]
71 - 114
Input voltage [V]
3x400
Power output - P2 [kW]
4 - 9.20
Suction port ["]
2
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
9.60 - 18.50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock with double impeller
