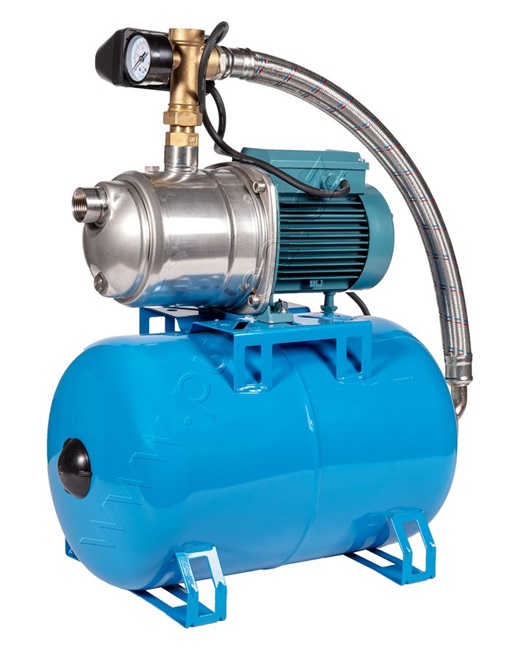

Calpeda Pressure booster pump with NGXM stainless steel pump and CIMM expansion vessel 230V

Extended warranty

previous next
Calpeda Pressure booster pump with NGXM stainless steel pump and CIMM expansion vessel 230V

See more

Technical Specifications

Maximum flow [l/min]
53.30 - 60
Maximum head [m]
46.80 - 50
Input voltage [V]
230
Power output - P2 [kW]
0.55 - 0.65

Show all Tech Specs

in stock >10 pcs

from 342.88 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Pressure booster pumps with interchangeable membrane expansion vessel
Product No.:
MAS000220

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Vessel volume [l]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Start pressure [bar]
  • Stop pressure [bar]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda pressure booster pump NGXM 2 with 24l CIMM horizontal vessel 230V 1,4-2,8bar

Product No.: ZB00001343 Sale group: CEPJ EAN: 8596455030263

in stock
2 pcs
Product availability
  • central warehouse 2 pcs
  • available within 5 working days >10 pcs

342.88 €

Not sellable online

Maximum flow [l/min]
53.30
Maximum head [m]
46.80
Input voltage [V]
230
Power output - P2 [kW]
0.55
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
9
Drinking water certificate
NO
Vessel volume [l]
24
Maximum current [A]
4.20
Maximum liquid temperature [°C]
35
Start pressure [bar]
1,4
Stop pressure [bar]
2,8
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl
Construction
with expansion vessel

Calpeda pressure booster pump NGXM 3 with 24l CIMM horizontal vessel 230V 2,1-3,5bar

Product No.: ZB00001325 Sale group: CEPJ EAN: 8596455030201

in stock
1 pcs
Product availability
  • central warehouse 1 pcs
  • available within 5 working days 1 pcs

380.75 €

Not sellable online

Maximum flow [l/min]
60
Maximum head [m]
50
Input voltage [V]
230
Power output - P2 [kW]
0.65
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
9
Drinking water certificate
NO
Vessel volume [l]
24
Maximum current [A]
4.50
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,1
Stop pressure [bar]
3,5
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl
Construction
with expansion vessel

Calpeda pressure booster pump NGXM 3 50l with CIMM horizontal vessel 230V 2,1-3,5bar

Product No.: ZB00001324 Sale group: CEPJ EAN: 8596455030195

in stock
8 pcs
Product availability
  • central warehouse 8 pcs
  • available within 5 working days 1 pcs

430.34 €

Not sellable online

Maximum flow [l/min]
60
Maximum head [m]
50
Input voltage [V]
230
Power output - P2 [kW]
0.65
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
9
Drinking water certificate
NO
Vessel volume [l]
50
Maximum current [A]
4.50
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,1
Stop pressure [bar]
3,5
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl
Construction
with expansion vessel

Calpeda pressure booster pump NGXM 3 with 80l CIMM horizontal vessel 230V 2,1-3,5bar

Product No.: ZB00001328 Sale group: CEPJ EAN: 8596455030232

in stock
4 pcs
Product availability
  • central warehouse 4 pcs
  • available within 5 working days 1 pcs

495.45 €

Not sellable online

Maximum flow [l/min]
60
Maximum head [m]
50
Input voltage [V]
230
Power output - P2 [kW]
0.65
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
9
Drinking water certificate
NO
Vessel volume [l]
80
Maximum current [A]
4.50
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,1
Stop pressure [bar]
3,5
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl
Construction
with expansion vessel

Technical Specifications

Maximum flow [l/min]
53.30 - 60
Maximum head [m]
46.80 - 50
Input voltage [V]
230
Power output - P2 [kW]
0.55 - 0.65
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
9
Drinking water certificate
NO
Vessel volume [l]
24, 50, 80
Maximum current [A]
4.20 - 4.50
Maximum liquid temperature [°C]
35
Start pressure [bar]
1,4, 2,1
Stop pressure [bar]
2,8, 3,5
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl
Construction
with expansion vessel
