Calpeda TM 61E 0,33kW 230V 2900ot. IE2

Peripheral Pumps FLOW  0.06 / 6 mc/h HEAD 5 / 165 m POWER 0.33 / 7.5 kW   See more

Technical Specifications

Maximum flow [l/min]
40
Maximum head [m]
38
Input voltage [V]
230
Power output - P2 [kW]
0,33

Show all Tech Specs

in stock 5 pcs

177.21 € VAT included

the price includes a recycling fee

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
ZB00070320
Sale group:
CECK
Manuf. No.:
70130021000

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda TM 61E 0,33kW 230V 2900ot. IE2

Product No.: ZB00070320 Sale group: CECK Manuf. No.: 70130021000

in stock
5 pcs
Product availability
  • central warehouse 5 pcs

177.21 €

Maximum flow [l/min]
40
Maximum head [m]
38
Input voltage [V]
230
Power output - P2 [kW]
0,33
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2,50
Maximum liquid temperature [°C]
90
Protection [IP]
55
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
brass
Construction
monoblock
You are viewing this variant

Calpeda TM 70/A 0,75kW 230V 2900rpm IE2

Product No.: ZB00001498 Sale group: CECK Manuf. No.: 70120041000

on demand
check availability
Product availability
  • central warehouse 0 pcs

324.58 €

Check availability

Maximum flow [l/min]
60
Maximum head [m]
59
Input voltage [V]
230
Power output - P2 [kW]
0,75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
6
Maximum liquid temperature [°C]
90
Protection [IP]
55
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda TM 76E 1,1kW 230V 2900rpm IE2

Product No.: ZB00001602 Sale group: CECK Manuf. No.: 70100052000

on demand
check availability
Product availability
  • central warehouse 0 pcs

530.74 €

Check availability

Maximum flow [l/min]
60
Maximum head [m]
70
Input voltage [V]
230
Power output - P2 [kW]
1,10
Suction port ["]
5/4
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
7,40
Maximum liquid temperature [°C]
90
Protection [IP]
55
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Product description

Construction

Close-coupled peripheral pumps (regenerative pumps) with turbine impeller.

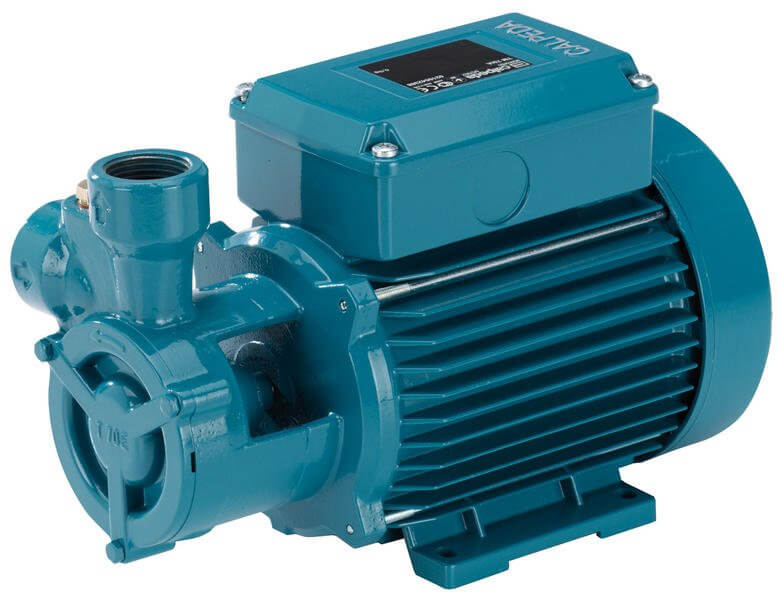

T, TP: version with pump casing and lanter bracket in cast iron.

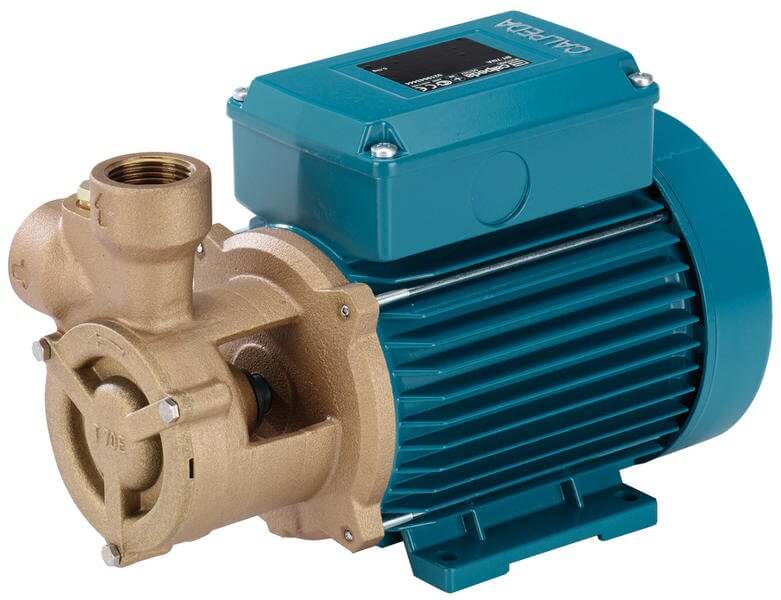

B-T, B-TP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

- For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
- For increasing network pressure (follow local specifications).
- For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation, boiler feed.

Instructions

Technical Specifications

Maximum flow [l/min]
40
Maximum head [m]
38
Input voltage [V]
230
Power output - P2 [kW]
0,33
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2,50
Maximum liquid temperature [°C]
90
Protection [IP]
55
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
brass
Construction
monoblock
