Global Water C2B-200LV Standing Pressure Vessel 200l 8.6bar 1 1/4" 49°C

The C2-Lite CAD™ Series represents the proven performance of a GWS steel tank in a lightweight composite design. Efficient and cost-effective, C2-Lite CAD tanks are designed with the patented GWS Challenger™ controlled action diaphragm tank design. See more

Technical Specifications

Drinking water certificate
YES
Vessel volume [l]
200
Maximum liquid temperature [°C]
49
Maximum pressure [bar]
9

Show all Tech Specs

in stock 6 pcs

906.75 € VAT included

Delivery accross EU within 3-7 business days %

Brand:
Global Water Solutions
Category:
Expansion vessels for cold water
Product No.:
ZB00071634
Sale group:
TLGW
Manuf. No.:
C2B-200LV

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Vessel volume [l]
  • Maximum liquid temperature [°C]
  • Maximum pressure [bar]
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

You are viewing this variant

Product description

The C2-Lite CAD™ Series represents the proven performance of a GWS steel tank in a lightweight composite design. Efficient and cost-effective, C2-Lite CAD tanks are designed with the patented GWS Challenger™ controlled action diaphragm tank design.

Unlike other composite tanks that hide old worn out bag technology in a plastic shell, the CAD-2 patented membrane construction is stronger, does not wrinkle or wear out. It features a 100% butyl membrane with a precision molded polypropylene copolymer liner for superior air and water separation. This patented design allows each tank size to have a properly sized water chamber to match the withdrawal capacity of that tank.
C2-Lite CAD tanks represent the best value investment and are the highest quality composite tanks available today.

USE

The C2Lite CAD™ series is ideal for a wide range of applications including:

  • irrigation
  • for pressure boosting systems
  • wells
  • coastal applications
  • beach resorts and golf courses

TECHNICAL PARAMETERS

  • nominal volume: 60 - 450 l
  • nominal pressure: 8.6 bar
  • Maximum operating pressure: 8.6 bar
  • factory pressure: 4 bar
  • maximum working temperature 49 °C
  • minimum working temperature -10°C (avoid freezing)
  • connection dimensions: 1″ (60 - 130lv) , 1 1/4″ (200 - 450 lv)

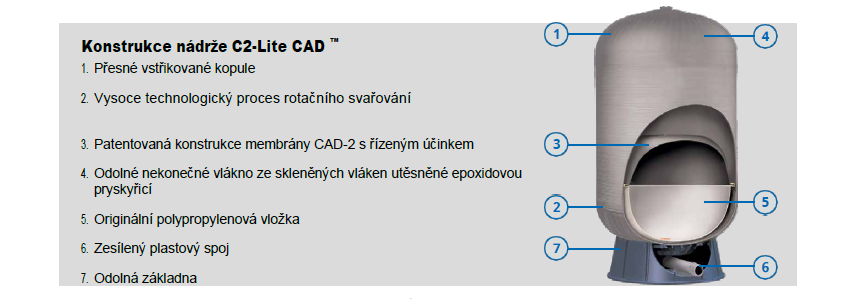

FEATURES AND BENEFITS

Patented CAD-2 membrane technology

The C2-Lite CAD™ Series represents the proven performance of a GWS steel tank in a lightweight composite design. Efficient and cost-effective, C2-Lite CAD tanks are designed with the patented GWS Challenger™ controlled-effect membrane tank design.
High quality design and comprehensive testing
Precision injection molded domes.

High-tech rotary welding process.

  • High quality brass air shank with O-ring sealing.
  • Robust copolymer polypropylene base.
  • Unique three-piece construction.
  • Reinforced plastic connection.
  • Durable continuous fiberglass filament sealed with epoxy resin.
  • Multi-phase testing to ensure the structural integrity of each tank.
  • No sweat design.
  • Durable even in harsh conditions
  • C2-Lite CAD tanks are easy to install, weatherproof and designed to withstand extreme conditions. When it comes to performance and durability, the GWS C2-Lite CAD design cannot be beaten.

Maintenance-free

C2-Lite CAD tanks are characterised by their quality and maintenance-free construction.

Extended warranty

We offer a 5 year extended warranty on all MAX vessels.

Instructions

Technical Specifications

Drinking water certificate
YES
Vessel volume [l]
200
Maximum liquid temperature [°C]
49
Maximum pressure [bar]
9
Construction
membrane
