GRUNDFOS CMBE booster set
GRUNDFOS CMBE booster set
Technical Specifications
- Maximum flow [l/min]
- 53 - 250
- Maximum head [m]
- 44 - 93
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.55 - 1.50
from 1,202.68 € VAT included
- Brand:
- Grundfos
- Category:
- Pressure booster pumps with frequency convertor
- Product No.:
- MAS000492
Product variants
-
- Grundfos CMBE 3-62 I-U-C-C-D-A 1x220-240V 50/60 Hz
- ZB00040244
- 96
- 65
- 230
- 1.10
- 1
- 1
- 1
- 2
- 6.70
- 55
- YES
- YES
- YES
- YES
- integrated
- stainless steel
- with frequency converter
-
Product availability
- central warehouse 1 pcs
- 1,202.68 €
- Not sellable online
-
- Grundfos CMBE10-54 I-U-C-C-D-C 1x220-240V 50/60Hz
- ZB00055397
- 250
- 54
- 230
- 1.50
- 6/4
- 6/4
- 6
- YES
- 2
- 9.10
- 1
- 55
- YES
- YES
- YES
- YES
- integrated
- stainless steel
- with frequency converter
-
Product availability
- central warehouse 0 pcs
- 2,784.87 €
- Not sellable online
-
- Grundfos CMBE 1-44 I-U-C-C-D-A 1x220-240V 50/60Hz
- ZB00002691
- 53
- 44
- 230
- 0.55
- 1
- 1
- 6
- YES
- 2
- 3.45
- 1
- 55
- YES
- YES
- YES
- YES
- integrated
- stainless steel
- with frequency converter
-
Product availability
- central warehouse 3 pcs
- 1,424.70 €
- Not sellable online
-
- Grundfos CMBE 3-93 I-U-C-C-D-A 1x220-240V 50/60 Hz
- ZB00002741
- 83
- 93
- 230
- 1.50
- 1
- 1
- 6
- YES
- 2
- 9.10
- 1
- 55
- YES
- YES
- YES
- YES
- integrated
- stainless steel
- with frequency converter
-
Product availability
- central warehouse 0 pcs
- 1,883.01 €
- Not sellable online
Variant Product No.
Availability
Price (VAT incl.)

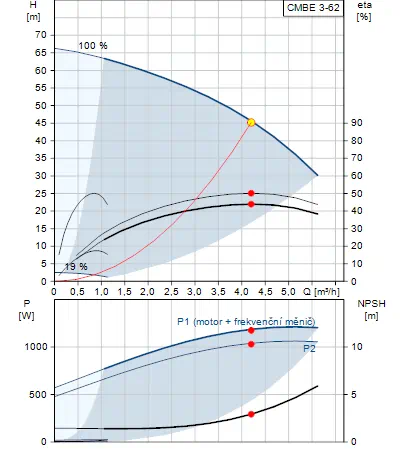

Grundfos CMBE 3-62 I-U-C-C-D-A 1x220-240V 50/60 Hz
Product No.: ZB00040244 Sale group: CEGJ EAN: 5711493909415 Manuf. No.: 98374701
1,202.68 €
- Maximum flow [l/min]
- 96
- Maximum head [m]
- 65
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.10
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum suction lift [m]
- 1
- Vessel volume [l]
- 2
- Maximum current [A]
- 6.70
- Protection [IP]
- 55
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Off switch
- YES
- Speed control
- YES
- Capacitor
- integrated
- Impeller material
- stainless steel
- Construction
- with frequency converter

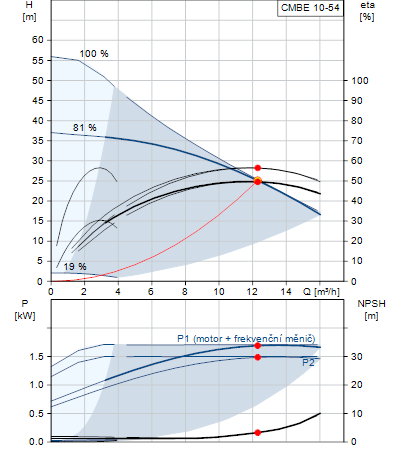

Grundfos CMBE10-54 I-U-C-C-D-C 1x220-240V 50/60Hz
Product No.: ZB00055397 Sale group: CEGDA EAN: 5711494037940 Manuf. No.: 98382202
2,784.87 €
- Maximum flow [l/min]
- 250
- Maximum head [m]
- 54
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.50
- Suction port ["]
- 6/4
- Delivery port ["]
- 6/4
- Maximum suction lift [m]
- 6
- Drinking water certificate
- YES
- Vessel volume [l]
- 2
- Maximum current [A]
- 9.10
- Start pressure [bar]
- 1
- Protection [IP]
- 55
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Off switch
- YES
- Speed control
- YES
- Capacitor
- integrated
- Impeller material
- stainless steel
- Construction
- with frequency converter

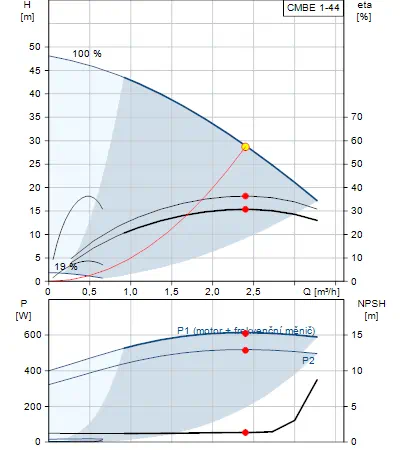

Grundfos CMBE 1-44 I-U-C-C-D-A 1x220-240V 50/60Hz
Product No.: ZB00002691 Sale group: CEGDA EAN: 5711493909378 Manuf. No.: 98374697
1,424.70 €
- Maximum flow [l/min]
- 53
- Maximum head [m]
- 44
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.55
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum suction lift [m]
- 6
- Drinking water certificate
- YES
- Vessel volume [l]
- 2
- Maximum current [A]
- 3.45
- Start pressure [bar]
- 1
- Protection [IP]
- 55
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Off switch
- YES
- Speed control
- YES
- Capacitor
- integrated
- Impeller material
- stainless steel
- Construction
- with frequency converter

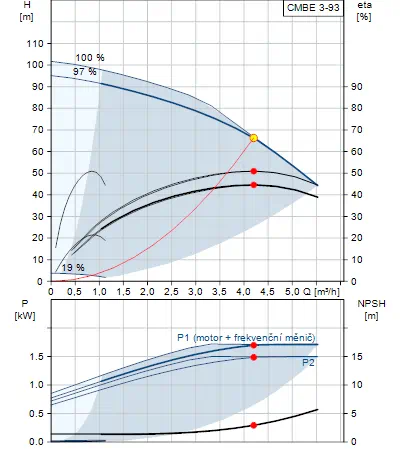

Grundfos CMBE 3-93 I-U-C-C-D-A 1x220-240V 50/60 Hz
Product No.: ZB00002741 Sale group: CEGDA EAN: 5711493909422 Manuf. No.: 98374702
1,883.01 €
- Maximum flow [l/min]
- 83
- Maximum head [m]
- 93
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.50
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum suction lift [m]
- 6
- Drinking water certificate
- YES
- Vessel volume [l]
- 2
- Maximum current [A]
- 9.10
- Start pressure [bar]
- 1
- Protection [IP]
- 55
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Off switch
- YES
- Speed control
- YES
- Capacitor
- integrated
- Impeller material
- stainless steel
- Construction
- with frequency converter
Product description
Constant water pressure for increased comfort
The CMBE is a booster set that provides constant water pressure for domestic and lighter commercial applications. With a CMBE booster set in the building, end-users will no longer be bothered by fluctuating water pressure and they can even adjust the pressure manually. The pump is compact, easy to install and has very low noise levels. You can use it for single-family homes, two-family homes, apartment buildings, schools and smaller hotels and office buildings.
Constant pressure guaranteed
The integrated speed controller keeps a constant pressure in the pipe system. The control panel makes it possible to change the water pressure manually.
Automatic Operation
CMBE features dry-run protection with auto-restart.
Low noise pump
At only 55 dBA, the CMBE has very low noise levels.
Strong build
Stainless steel shaft, impellers and pump housing ensure long service-life.
Instructions
Technical Specifications
- Maximum flow [l/min]
- 53 - 250
- Maximum head [m]
- 44 - 93
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.55 - 1.50
- Suction port ["]
- 1, 6/4
- Delivery port ["]
- 1, 6/4
- Maximum suction lift [m]
- 1 - 6
- Drinking water certificate
- YES
- Vessel volume [l]
- 2
- Maximum current [A]
- 3.45 - 9.10
- Start pressure [bar]
- 1
- Protection [IP]
- 55
- Automatic thermal protection
- YES
- Dry run protection
- YES
- Off switch
- YES
- Speed control
- YES
- Capacitor
- integrated
- Impeller material
- stainless steel
- Construction
- with frequency converter
