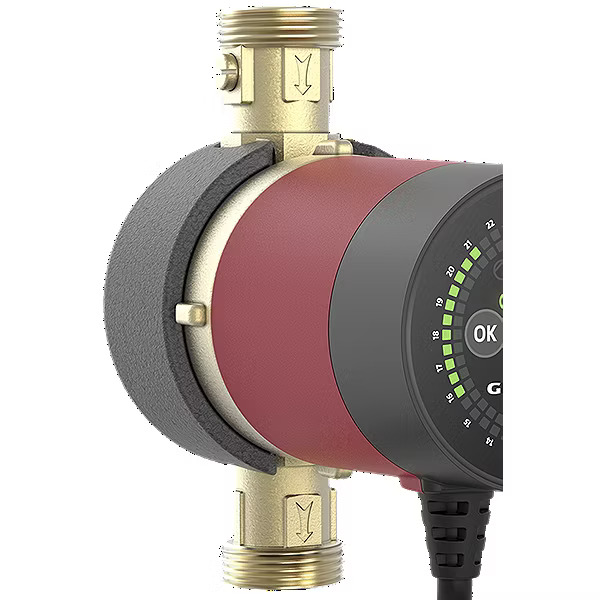

Grundfos COMFORT 15-14 BX TDT 230V 140mm G1"

Always have hot water available throughout the house without waiting with the COMFORT range of pumps for hot water circulation systems in single and multi-family homes. The COMFORT range of energy-efficient pumps helps reduce energy consumption and water waste. COMFORT wet-running pumps are installed on the return line of the hot water circulation system and operate noiselessly. They ensure that hot water is available at the tap or shower at any time without waiting. This eliminates waiting time for hot water and the waste of cold water that has to be drained from the tap. See more

Technical Specifications

Maximum flow [l/min]
7.50
Maximum head [m]
1.10
Input voltage [V]
230
Power output - P2 [kW]
0.01

Show all Tech Specs

on demand check availability

333.31 VAT included

On demand

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Circulator pumps
Product No.:
ZB00073822
Sale group:
CEGDF
EAN:
5715467677386
Manuf. No.:
93093665

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Port-to-port length
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos COMFORT 15-14 B 230V 80mm Rp1/2" cable 1,5m

Product No.: ZB00002263 Sale group: CEGDF EAN: 5710626363766 Manuf. No.: 97916771

124.57 €

Maximum head [m]
1.40
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
1/2
Maximum current [A]
0.07
Maximum liquid temperature [°C]
95
Protection [IP]
44
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Port-to-port length
80

Grundfos COMFORT 15-14 BX 230V 140mm G1"

Product No.: ZB00002264 Sale group: CEGDF EAN: 5710626363773 Manuf. No.: 97916772

217.87 €

Maximum head [m]
1.40
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1
Delivery port ["]
1
Maximum current [A]
0.07
Maximum liquid temperature [°C]
95
Protection [IP]
44
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
140
Maximum flow [l/min]
7.50
Maximum head [m]
0.90
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
1/2
Maximum current [A]
0.07
Maximum liquid temperature [°C]
95
Protection [IP]
44
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Port-to-port length
80

Grundfos COMFORT 15-14 BX T 230V 140mm G1"

Product No.: ZB00073824 Sale group: CEGDF EAN: 5715467696189 Manuf. No.: 93094846

256.35 €

Maximum flow [l/min]
5.50
Maximum head [m]
0.90
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1
Delivery port ["]
1
Maximum current [A]
0.07
Maximum liquid temperature [°C]
95
Protection [IP]
44
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Port-to-port length
140

Grundfos COMFORT 15-14 BDT PM 230V 80mm Rp1/2"

Product No.: ZB00060935 Sale group: CEGDF EAN: 5713834634352 Manuf. No.: 99812350

249.80 €

Maximum flow [l/min]
7.50
Maximum head [m]
1.15
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
3
Maximum current [A]
0.07
Protection [IP]
44
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
80

Grundfos COMFORT 15-14 B TDT 230V 80mm Rp1/2"

Product No.: ZB00073821 Sale group: CEGDF EAN: 5715467675740 Manuf. No.: 93093537

291.19 €

Maximum flow [l/min]
7.50
Maximum head [m]
1.15
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
3
Maximum current [A]
0.07
Protection [IP]
44
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
80

Grundfos COMFORT 15-14 BXDT PM 230V 140mm G1"

Product No.: ZB00060936 Sale group: CEGDF EAN: 5713834895494 Manuf. No.: 99831281

288.29 €

Maximum flow [l/min]
7.50
Maximum head [m]
1.10
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
3
Maximum current [A]
0.07
Protection [IP]
44
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
140

Grundfos COMFORT 15-14 BX TDT 230V 140mm G1"

Product No.: ZB00073822 Sale group: CEGDF EAN: 5715467677386 Manuf. No.: 93093665

333.31 €

Maximum flow [l/min]
7.50
Maximum head [m]
1.10
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
3
Maximum current [A]
0.07
Protection [IP]
44
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
140
You are viewing this variant

Grundfos COMFORT 15-14 B TA 230V 80mm Rp1/2"AUTOADAPT

Product No.: ZB00002261 Sale group: CEGDF EAN: 5710626363506 Manuf. No.: 97916757

204.36 €

Maximum head [m]
1.40
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
1/2
Maximum current [A]
0.07
Maximum liquid temperature [°C]
95
Protection [IP]
44
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
80

Grundfos COMFORT 15-14 BX TA 230V 140mm G1" AUTOADAPT

Product No.: ZB00002265 Sale group: CEGDF EAN: 5710626363742 Manuf. No.: 97916749

329.68 €

Maximum head [m]
1.40
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1
Delivery port ["]
1
Maximum current [A]
0.07
Maximum liquid temperature [°C]
95
Protection [IP]
44
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
140

Product description

Always have hot water available throughout the house without waiting with the COMFORT range of pumps for hot water circulation systems in single and multi-family homes. The COMFORT range of energy-efficient pumps helps reduce energy consumption and water waste. COMFORT wet-running pumps are installed on the return line of the hot water circulation system and operate noiselessly. They ensure that hot water is available at the tap or shower at any time without waiting. This eliminates waiting time for hot water and the waste of cold water that has to be drained from the tap.

It's time to start saving on water and energy bills

Always have hot water available throughout the house without waiting with the COMFORT range of pumps designed for hot water circulation systems in single and multi-family homes. The COMFORT range of energy-efficient pumps helps reduce energy consumption and water waste.

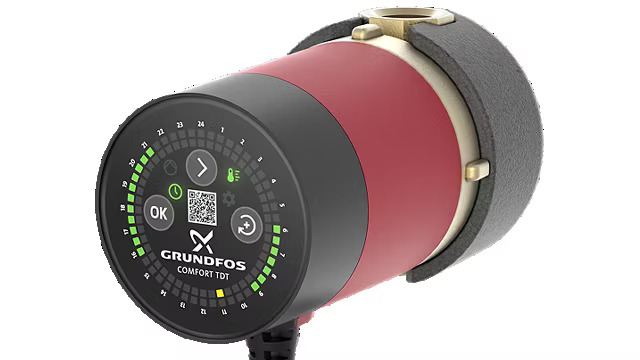

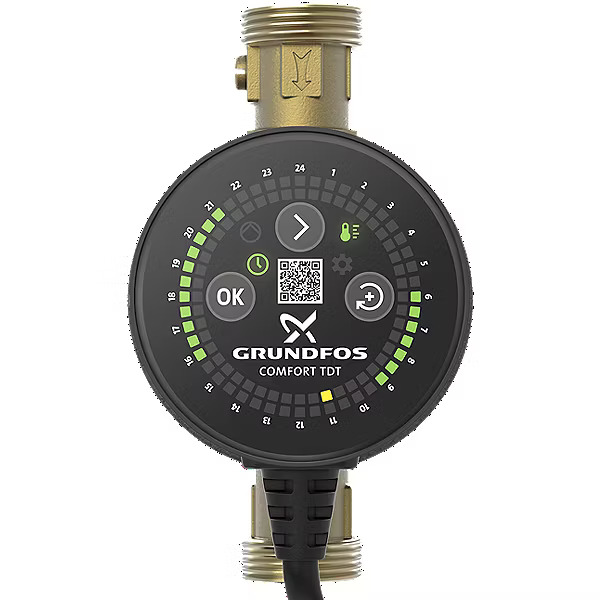

The COMFORT TDT combines the advantages of a timer and water temperature control in the circulation system. Hot water is available with a minimum of water, heat and electricity consumption. Thanks to the integrated timer, you can easily set the operating time of the pump to match your daily routine and the intervals at which you draw hot water. The temperature control mode automatically maintains the water temperature within the set range and is active during the set operating times.

This combination of timer and temperature control mode reduces heat loss even further, saving up to 56% of heat energy compared to a continuously running circulation pump.

Increased energy savings with timer and automatic temperature control

The COMFORT TDT pump with built-in timer runs only according to the household's preferred schedule. In combination with automatic temperature control, the COMFORT TDT significantly reduces the amount of heat energy consumed by the water heater, saving up to 56% of heat energy compared to a continuously running circulation pump.

Reduced installation costs

The COMFORT TDT pump is delivered pre-assembled and ready for operation. There is no need to purchase and install an external control unit, external shut-off and check valves, dry-run protection or an external power lead and the double electrical insulation means there is no need to ground the pump.

Reliability

The COMFORT TDT pump is globally certified for use with potable water and is protected against dry running. The improved shaftless motor design allows the pump to run in water of any hardness, while the removable head and impeller ensure easy descaling if required.

Easy sizing

Since a hot water circulation system requires a low flow rate, the COMFORT TDT pump is ideal for single or two-family homes. The optimum size keeps the water hot while preventing noise and increased degradation, such as holes in the pipes.

Technical Specifications

Maximum flow [l/min]
7.50
Maximum head [m]
1.10
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
3
Maximum current [A]
0.07
Protection [IP]
44
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
140
