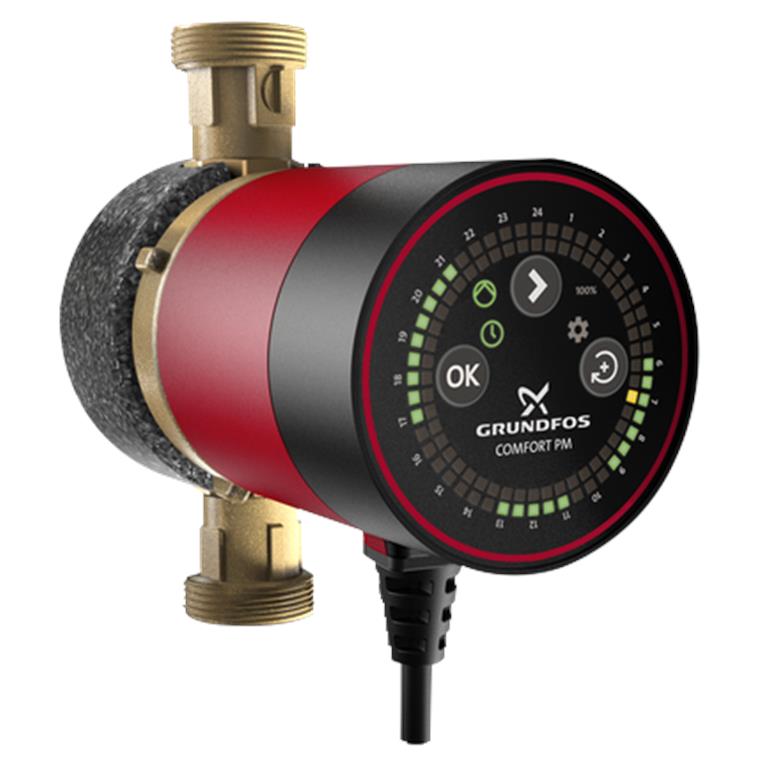

Grundfos COMFORT 15-14 BXDT PM 230V 140mm G1"

Always have hot water available throughout the house without waiting with the COMFORT range of pumps for hot water circulation systems in single and multi-family homes. The COMFORT range of energy-efficient pumps helps reduce energy consumption and water waste. COMFORT wet-running pumps are installed on the return line of the hot water circulation system and operate noiselessly. They ensure that hot water is available at the tap or shower at any time without waiting. This eliminates waiting time for hot water and the waste of cold water that has to be drained from the tap. See more

Technical Specifications

Maximum flow [l/min]
7.50
Maximum head [m]
1.10
Input voltage [V]
230
Power output - P2 [kW]
0.01

Show all Tech Specs

in stock 6 pcs

288.29 € VAT included

the price includes a recycling fee

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Circulator pumps
Product No.:
ZB00060936
Sale group:
CEGDF
EAN:
5713834895494
Manuf. No.:
99831281

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Port-to-port length
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos COMFORT 15-14B 230V 80mm Rp1/2" cable 1,5m

Product No.: ZB00002263 Sale group: CEGDF EAN: 5710626363766 Manuf. No.: 97916771

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

124.57 €

Maximum head [m]
1.40
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
1/2
Maximum current [A]
0.07
Maximum liquid temperature [°C]
95
Protection [IP]
44
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Port-to-port length
80

Grundfos COMFORT 15-14 BX 230V 140mm G1"

Product No.: ZB00002264 Sale group: CEGDF EAN: 5710626363773 Manuf. No.: 97916772

in stock
4 pcs
Product availability
  • central warehouse 4 pcs

217.87 €

Maximum head [m]
1.40
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1
Delivery port ["]
1
Maximum current [A]
0.07
Maximum liquid temperature [°C]
95
Protection [IP]
44
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
140

Grundfos COMFORT 15-14 BDT PM 230V 80mm Rp1/2"

Product No.: ZB00060935 Sale group: CEGDF EAN: 5713834634352 Manuf. No.: 99812350

in stock
9 pcs
Product availability
  • central warehouse 9 pcs

249.80 €

Maximum flow [l/min]
7.50
Maximum head [m]
1.15
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
3
Maximum current [A]
0.07
Protection [IP]
44
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
80

Grundfos COMFORT 15-14 B TDT 230V 80mm Rp1/2"

Product No.: ZB00073821 Sale group: CEGDF EAN: 5715467675740 Manuf. No.: 93093537

on demand
check availability
Product availability
  • central warehouse 0 pcs

291.18 €

Check availability

Maximum flow [l/min]
7.50
Maximum head [m]
1.15
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
3
Maximum current [A]
0.07
Protection [IP]
44
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
80

Grundfos COMFORT 15-14 BXDT PM 230V 140mm G1"

Product No.: ZB00060936 Sale group: CEGDF EAN: 5713834895494 Manuf. No.: 99831281

in stock
6 pcs
Product availability
  • central warehouse 6 pcs

288.29 €

Maximum flow [l/min]
7.50
Maximum head [m]
1.10
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
3
Maximum current [A]
0.07
Protection [IP]
44
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
140
You are viewing this variant

Grundfos COMFORT 15-14 BX TDT 230V 140mm G1"

Product No.: ZB00073822 Sale group: CEGDF EAN: 5715467677386 Manuf. No.: 93093665

on demand
check availability
Product availability
  • central warehouse 0 pcs

333.31 €

Check availability

Maximum flow [l/min]
7.50
Maximum head [m]
1.10
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
3
Maximum current [A]
0.07
Protection [IP]
44
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
140

Grundfos COMFORT 15-14 B TA 230V 80mm Rp1/2"AUTOADAPT

Product No.: ZB00002261 Sale group: CEGDF EAN: 5710626363506 Manuf. No.: 97916757

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

204.36 €

Maximum head [m]
1.40
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
1/2
Maximum current [A]
0.07
Maximum liquid temperature [°C]
95
Protection [IP]
44
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
80

Grundfos COMFORT 15-14 BX TA 230V 140mm G1" AUTOADAPT

Product No.: ZB00002265 Sale group: CEGDF EAN: 5710626363742 Manuf. No.: 97916749

in stock
4 pcs
Product availability
  • central warehouse 4 pcs

329.68 €

Maximum head [m]
1.40
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1
Delivery port ["]
1
Maximum current [A]
0.07
Maximum liquid temperature [°C]
95
Protection [IP]
44
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
140

Product description

Always have hot water available throughout the house without waiting with the COMFORT range of pumps for hot water circulation systems in single and multi-family homes. The COMFORT range of energy-efficient pumps helps reduce energy consumption and water waste. COMFORT wet-running pumps are installed on the return line of the hot water circulation system and operate noiselessly. They ensure that hot water is available at the tap or shower at any time without waiting. This eliminates waiting time for hot water and the waste of cold water that has to be drained from the tap.

Choose the best circulation pump for you

Each COMFORT Series pump is designed to provide maximum convenience while minimizing energy consumption. Making the right choice is simple, just determine which control mode suits your household requirements. Compared to continuous operation, different control modes can further reduce heat energy loss due to circulation.

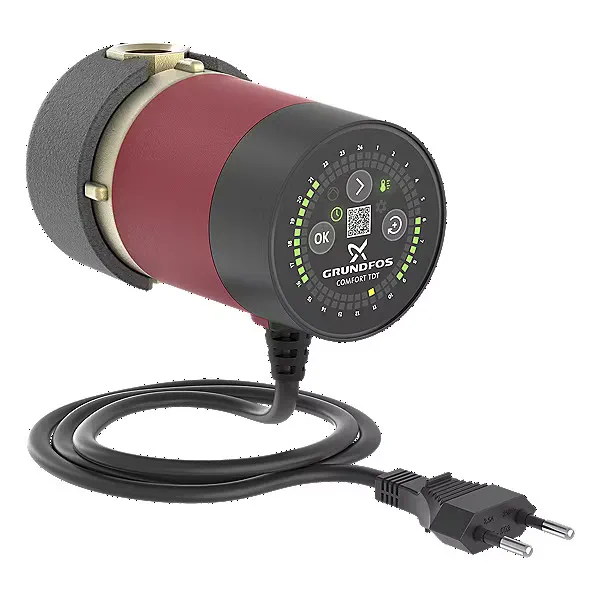

COMFORT TDT

Timer and temperature control: the best solution for households with a specific schedule and a desire to significantly reduce energy consumption. Requires manual timer setting.
Timer and temperature control mode significantly reduces the amount of heat energy consumed by the water heater and saves up to 56% heat energy compared to a continuously running pump.

Available in B TDT (with timer and temperature control mode; formerly known as COMFORT 15-14 BDT PM) and BX TDT (with timer and temperature control mode, package also includes shut-off valve and check valve; formerly known as COMFORT 15-14 BXDT PM).

Instructions

Technical Specifications

Maximum flow [l/min]
7.50
Maximum head [m]
1.10
Input voltage [V]
230
Power output - P2 [kW]
0.01
Suction port ["]
1/2
Delivery port ["]
3
Maximum current [A]
0.07
Protection [IP]
44
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
140
