Grundfos

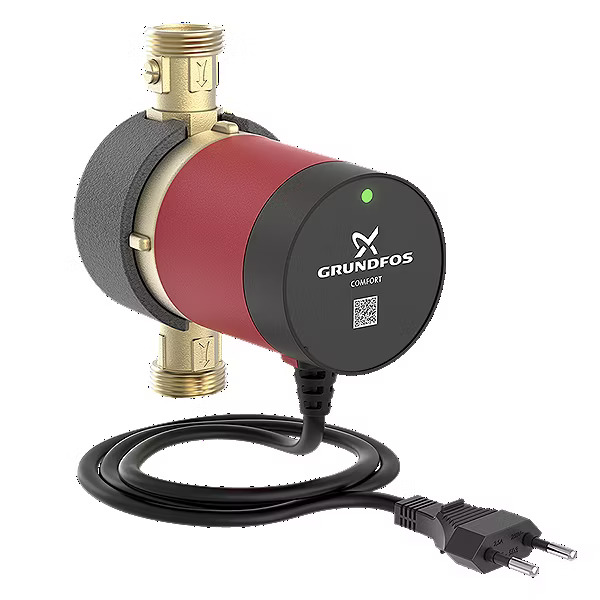

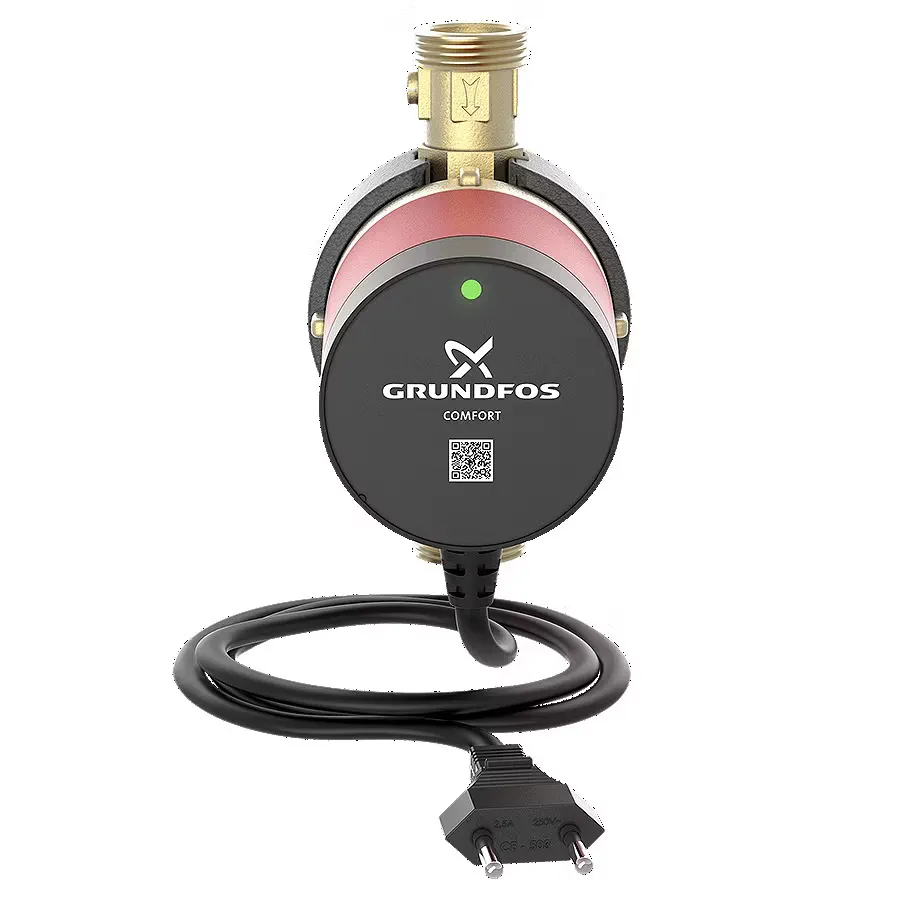

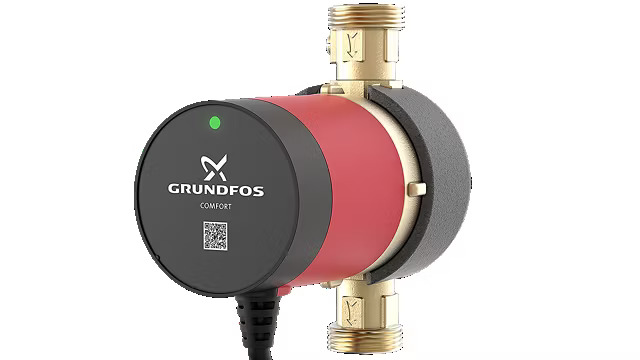

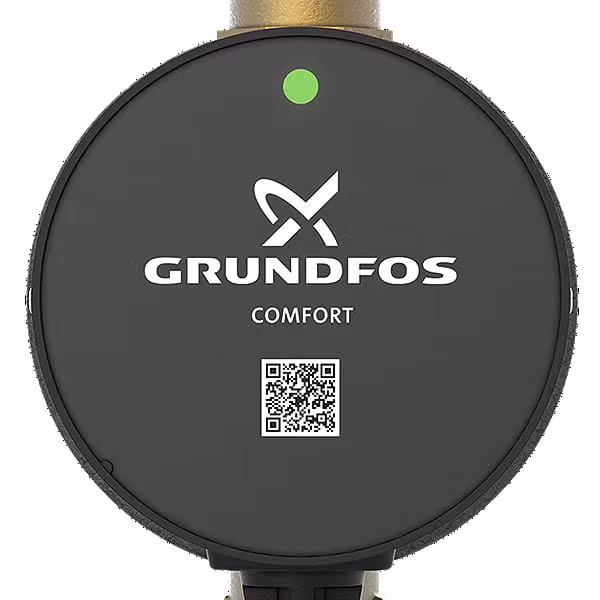

Grundfos COMFORT 15-14 B 230V 80mm Rp1/2" cable 1,5m
Always have hot water available throughout the house without waiting with the COMFORT range of pumps for hot water circulation systems in single and multi-family homes. The COMFORT range of energy-efficient pumps helps reduce energy consumption and water waste. COMFORT wet-running pumps are installed on the return line of the hot water circulation system and operate noiselessly. They ensure that hot water is available at the tap or shower at any time without waiting. This eliminates waiting time for hot water and the waste of cold water that has to be drained from the tap.
Technical Specifications
- Maximum head [m]
- 1.40
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.01
- Suction port ["]
- 1/2
- Brand:
- Grundfos
- Category:
- Circulator pumps
- Product No.:
- ZB00002263
- Sale group:
- CEGDF
- EAN:
- 5710626363766
- Manuf. No.:
- 97916771
Product variants
-
- Grundfos COMFORT 15-14 B 230V 80mm Rp1/2" cable 1,5m
- ZB00002263
- 1.40
- 230
- 0.01
- 1/2
- 1/2
- 0.07
- 95
- 44
- NO
- NO
- NO
- integrated
- noryl
- 80
-
Product availability
- central warehouse >100 pcs
- 124.57 €
-
- Grundfos COMFORT 15-14 BX 230V 140mm G1"
- ZB00002264
- 1.40
- 230
- 0.01
- 1
- 1
- 0.07
- 95
- 44
- NO
- NO
- YES
- integrated
- noryl
- 140
-
Product availability
- central warehouse 0 pcs
- 217.87 €
- Check availability
-
- Grundfos COMFORT 15-14 B T 230V 80mm Rp1/2"
- ZB00073823
- 7.50
- 0.90
- 230
- 0.01
- 1/2
- 1/2
- 0.07
- 95
- 44
- NO
- NO
- NO
- integrated
- noryl
- 80
-
Product availability
- central warehouse 0 pcs
- 222.95 €
- Check availability
-
- Grundfos COMFORT 15-14 BX T 230V 140mm G1"
- ZB00073824
- 5.50
- 0.90
- 230
- 0.01
- 1
- 1
- 0.07
- 95
- 44
- NO
- NO
- NO
- integrated
- noryl
- 140
-
Product availability
- central warehouse 0 pcs
- 256.35 €
- Check availability
-
- Grundfos COMFORT 15-14 BDT PM 230V 80mm Rp1/2"
- ZB00060935
- 7.50
- 1.15
- 230
- 0.01
- 1/2
- 3
- 0.07
- 44
- YES
- NO
- NO
- NO
- noryl
- Glandless pumps
- 80
-
Product availability
- central warehouse 6 pcs
- 249.80 €
-
- Grundfos COMFORT 15-14 B TDT 230V 80mm Rp1/2"
- ZB00073821
- 7.50
- 1.15
- 230
- 0.01
- 1/2
- 3
- 0.07
- 44
- YES
- NO
- NO
- NO
- noryl
- Glandless pumps
- 80
-
Product availability
- central warehouse 0 pcs
- 291.19 €
- Check availability
-
- Grundfos COMFORT 15-14 BXDT PM 230V 140mm G1"
- ZB00060936
- 7.50
- 1.10
- 230
- 0.01
- 1/2
- 3
- 0.07
- 44
- YES
- NO
- NO
- NO
- noryl
- Glandless pumps
- 140
-
Product availability
- central warehouse 5 pcs
- 288.29 €
-
- Grundfos COMFORT 15-14 BX TDT 230V 140mm G1"
- ZB00073822
- 7.50
- 1.10
- 230
- 0.01
- 1/2
- 3
- 0.07
- 44
- YES
- NO
- NO
- NO
- noryl
- Glandless pumps
- 140
-
Product availability
- central warehouse 0 pcs
- 333.31 €
- Check availability
-
- Grundfos COMFORT 15-14 B TA 230V 80mm Rp1/2"AUTOADAPT
- ZB00002261
- 1.40
- 230
- 0.01
- 1/2
- 1/2
- 0.07
- 95
- 44
- NO
- NO
- YES
- integrated
- noryl
- 80
-
Product availability
- central warehouse >10 pcs
- 204.36 €
-
- Grundfos COMFORT 15-14 BX TA 230V 140mm G1" AUTOADAPT
- ZB00002265
- 1.40
- 230
- 0.01
- 1
- 1
- 0.07
- 95
- 44
- NO
- NO
- YES
- integrated
- noryl
- 140
-
Product availability
- central warehouse 4 pcs
- 329.68 €
Variant Product No.
Availability
Price (VAT incl.)
Grundfos COMFORT 15-14 B 230V 80mm Rp1/2" cable 1,5m
Product No.: ZB00002263 Sale group: CEGDF EAN: 5710626363766 Manuf. No.: 97916771
124.57 €
- Maximum head [m]
- 1.40
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.01
- Suction port ["]
- 1/2
- Delivery port ["]
- 1/2
- Maximum current [A]
- 0.07
- Maximum liquid temperature [°C]
- 95
- Protection [IP]
- 44
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Impeller material
- noryl
- Port-to-port length
- 80
Grundfos COMFORT 15-14 BX 230V 140mm G1"
Product No.: ZB00002264 Sale group: CEGDF EAN: 5710626363773 Manuf. No.: 97916772
217.87 €
- Maximum head [m]
- 1.40
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.01
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum current [A]
- 0.07
- Maximum liquid temperature [°C]
- 95
- Protection [IP]
- 44
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- YES
- Capacitor
- integrated
- Impeller material
- noryl
- Port-to-port length
- 140
Grundfos COMFORT 15-14 B T 230V 80mm Rp1/2"
Product No.: ZB00073823 Sale group: CEGDF Manuf. No.: 93093854
222.95 €
- Maximum flow [l/min]
- 7.50
- Maximum head [m]
- 0.90
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.01
- Suction port ["]
- 1/2
- Delivery port ["]
- 1/2
- Maximum current [A]
- 0.07
- Maximum liquid temperature [°C]
- 95
- Protection [IP]
- 44
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Impeller material
- noryl
- Port-to-port length
- 80
Grundfos COMFORT 15-14 BX T 230V 140mm G1"
Product No.: ZB00073824 Sale group: CEGDF EAN: 5715467696189 Manuf. No.: 93094846
256.35 €
- Maximum flow [l/min]
- 5.50
- Maximum head [m]
- 0.90
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.01
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum current [A]
- 0.07
- Maximum liquid temperature [°C]
- 95
- Protection [IP]
- 44
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Impeller material
- noryl
- Port-to-port length
- 140
Grundfos COMFORT 15-14 BDT PM 230V 80mm Rp1/2"
Product No.: ZB00060935 Sale group: CEGDF EAN: 5713834634352 Manuf. No.: 99812350
249.80 €
- Maximum flow [l/min]
- 7.50
- Maximum head [m]
- 1.15
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.01
- Suction port ["]
- 1/2
- Delivery port ["]
- 3
- Maximum current [A]
- 0.07
- Protection [IP]
- 44
- Dry run protection
- YES
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Impeller material
- noryl
- Construction
- Glandless pumps
- Port-to-port length
- 80
Grundfos COMFORT 15-14 B TDT 230V 80mm Rp1/2"
Product No.: ZB00073821 Sale group: CEGDF EAN: 5715467675740 Manuf. No.: 93093537
291.19 €
- Maximum flow [l/min]
- 7.50
- Maximum head [m]
- 1.15
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.01
- Suction port ["]
- 1/2
- Delivery port ["]
- 3
- Maximum current [A]
- 0.07
- Protection [IP]
- 44
- Dry run protection
- YES
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Impeller material
- noryl
- Construction
- Glandless pumps
- Port-to-port length
- 80
Grundfos COMFORT 15-14 BXDT PM 230V 140mm G1"
Product No.: ZB00060936 Sale group: CEGDF EAN: 5713834895494 Manuf. No.: 99831281
288.29 €
- Maximum flow [l/min]
- 7.50
- Maximum head [m]
- 1.10
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.01
- Suction port ["]
- 1/2
- Delivery port ["]
- 3
- Maximum current [A]
- 0.07
- Protection [IP]
- 44
- Dry run protection
- YES
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Impeller material
- noryl
- Construction
- Glandless pumps
- Port-to-port length
- 140
Grundfos COMFORT 15-14 BX TDT 230V 140mm G1"
Product No.: ZB00073822 Sale group: CEGDF EAN: 5715467677386 Manuf. No.: 93093665
333.31 €
- Maximum flow [l/min]
- 7.50
- Maximum head [m]
- 1.10
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.01
- Suction port ["]
- 1/2
- Delivery port ["]
- 3
- Maximum current [A]
- 0.07
- Protection [IP]
- 44
- Dry run protection
- YES
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Impeller material
- noryl
- Construction
- Glandless pumps
- Port-to-port length
- 140
Grundfos COMFORT 15-14 B TA 230V 80mm Rp1/2"AUTOADAPT
Product No.: ZB00002261 Sale group: CEGDF EAN: 5710626363506 Manuf. No.: 97916757
204.36 €
- Maximum head [m]
- 1.40
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.01
- Suction port ["]
- 1/2
- Delivery port ["]
- 1/2
- Maximum current [A]
- 0.07
- Maximum liquid temperature [°C]
- 95
- Protection [IP]
- 44
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- YES
- Capacitor
- integrated
- Impeller material
- noryl
- Port-to-port length
- 80
Grundfos COMFORT 15-14 BX TA 230V 140mm G1" AUTOADAPT
Product No.: ZB00002265 Sale group: CEGDF EAN: 5710626363742 Manuf. No.: 97916749
329.68 €
- Maximum head [m]
- 1.40
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.01
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum current [A]
- 0.07
- Maximum liquid temperature [°C]
- 95
- Protection [IP]
- 44
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- YES
- Capacitor
- integrated
- Impeller material
- noryl
- Port-to-port length
- 140
Product description
Always have hot water available throughout the house without waiting with the COMFORT range of pumps for hot water circulation systems in single and multi-family homes. The COMFORT range of energy-efficient pumps helps reduce energy consumption and water waste. COMFORT wet-running pumps are installed on the return line of the hot water circulation system and operate noiselessly. They ensure that hot water is available at the tap or shower at any time without waiting. This eliminates waiting time for hot water and the waste of cold water that has to be drained from the tap.
Save water and energy by circulating hot water
Always have hot water available throughout the house without waiting with the COMFORT range of pumps for hot water circulation systems in single and multi-family homes. The COMFORT range of energy-efficient pumps helps reduce energy consumption and water waste.
The temperature control mode of the COMFORT T pump activates the pump when the internal temperature sensor detects the water temperature dropping below a certain level. The control mode automatically adjusts the on/off temperature based on the maximum temperature measured in the system. This saves up to 25% thermal energy compared to a continuously running pump. Thanks to the low noise permanent magnet motor, the pump power consumption is 5-7 W.
Energy saving with automatic temperature control
Thanks to the automatic shut-off when the maximum water temperature is reached, the COMFORT T significantly reduces the amount of thermal energy consumed by the water heater and saves up to 25% thermal energy compared to a continuously running circulator.
Reduced installation costs
The COMFORT T pump is delivered pre-assembled and ready for operation. There is no need to purchase and install an external control unit, external shut-off and check valves, dry-run protection or an external power lead and the double electrical insulation means there is no need to ground the pump.
Reliability
The COMFORT T pump is globally certified for use with potable water and is protected against dry running. The improved shaftless motor design allows the pump to run in water of any hardness, while the removable head and impeller ensure easy descaling if required.
Easy sizing
As the hot water circulation system requires a low flow rate, the COMFORT T pump is ideal for single or two-family houses. The optimum size keeps the water hot while preventing noise and increased degradation, such as holes in the pipes.
Technical Specifications
- Maximum head [m]
- 1.40
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.01
- Suction port ["]
- 1/2
- Delivery port ["]
- 1/2
- Maximum current [A]
- 0.07
- Maximum liquid temperature [°C]
- 95
- Protection [IP]
- 44
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Impeller material
- noryl
- Port-to-port length
- 80
