GRUNDFOS MAGNA1 circulator pump with flange

The simple option for a job well done. The product has an intuitive user interface, which is especially fit for replacement of older circulators. The ideal choice for basic functionality needs See more

Technical Specifications

Maximum flow [l/min]
125 - 1,183.33
Maximum head [m]
4 - 18
Input voltage [V]
230
Suction port ["]
DN32, DN40, DN50, DN65, DN80, DN100

Show all Tech Specs

in stock >10 pcs

from 621.80 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Heating pumps
Product No.:
MAS000470

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Suction port ["]
  • Delivery port ["]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Port-to-port length
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos MAGNA1 32-40F 220 230V PN6/10

Product No.: ZB00002374 Sale group: CEGK1 EAN: 5712608942365 Manuf. No.: 99221263

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

621.80 €

Maximum flow [l/min]
125
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
0,59
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 32-60F 220 230V PN6/10

Product No.: ZB00002376 Sale group: CEGK1 EAN: 5712608942426 Manuf. No.: 99221269

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

727.68 €

Maximum flow [l/min]
150
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
0,90
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 32-80F 220 230V PN6/10

Product No.: ZB00002377 Sale group: CEGK1 EAN: 5712608942488 Manuf. No.: 99221275

on demand
check availability
Product availability
  • central warehouse 0 pcs

765.79 €

Check availability

Maximum flow [l/min]
166,67
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
1,22
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 32-100F 220 230V PN6/10

Product No.: ZB00002335 Sale group: CEGK1 EAN: 5712608942105 Manuf. No.: 99221237

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

880.14 €

Maximum flow [l/min]
166,67
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
1,41
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 32-120 F 220 230V PN6/10

Product No.: ZB00002336 Sale group: CEGK1 EAN: 5712608942587 Manuf. No.: 99221285

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,048.22 €

Check availability

Maximum flow [l/min]
150
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
1,48
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 40-40F 220 230V PN6/10

Product No.: ZB00002337 Sale group: CEGK1 EAN: 5712608942648 Manuf. No.: 99221291

in stock
5 pcs
Product availability
  • central warehouse 5 pcs

774.40 €

Maximum flow [l/min]
200
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
0,72
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 40-60F 220 230V PN6/10

Product No.: ZB00002338 Sale group: CEGK1 EAN: 5712608942655 Manuf. No.: 99221292

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

850.02 €

Maximum flow [l/min]
266,67
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1,56
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 40-80F 220 230V PN6/10

Product No.: ZB00002325 Sale group: CEGK1 EAN: 5712608942761 Manuf. No.: 99221303

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

1,039.21 €

Maximum flow [l/min]
300
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1,18
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 40-100F 220 230V PN6/10

Product No.: ZB00002339 Sale group: CEGK1 EAN: 5712608942778 Manuf. No.: 99221304

in stock
5 pcs
Product availability
  • central warehouse 5 pcs

1,145.08 €

Maximum flow [l/min]
333,33
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1,65
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 40-120F 250 230V PN6/10

Product No.: ZB00002340 Sale group: CEGK1 EAN: 5712608942785 Manuf. No.: 99221305

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,270.91 €

Check availability

Maximum flow [l/min]
366,67
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
2,05
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
250

Grundfos MAGNA1 40-150F 250 230V PN6/10

Product No.: ZB00002341 Sale group: CEGK1 EAN: 5712608942792 Manuf. No.: 99221306

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,552.23 €

Check availability

Maximum flow [l/min]
400
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
2,71
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
250

Grundfos MAGNA1 40-180F 250 230V PN6/10

Product No.: ZB00002342 Sale group: CEGK1 EAN: 5712608942808 Manuf. No.: 99221307

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,786.37 €

Maximum flow [l/min]
400
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
2,71
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
250

Grundfos MAGNA1 50-60F 240 230V PN6/10

Product No.: ZB00002344 Sale group: CEGK1 EAN: 5712608943065 Manuf. No.: 99221333

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,349.04 €

Maximum flow [l/min]
400
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
1,15
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
240

Grundfos MAGNA1 50-80F 240 230V PN6/10

Product No.: ZB00002345 Sale group: CEGK1 EAN: 5712608943072 Manuf. No.: 99221334

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,483.96 €

Maximum flow [l/min]
433,33
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
1,48
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
240

Grundfos MAGNA1 50-100F 280 230V PN6/10

Product No.: ZB00002346 Sale group: CEGK1 EAN: 5712608943089 Manuf. No.: 99221335

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,571.71 €

Maximum flow [l/min]
466,67
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
1,90
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA1 50-120F 280 230V PN6/10

Product No.: ZB00002347 Sale group: CEGK1 EAN: 5712608943096 Manuf. No.: 99221336

in stock
4 pcs
Product availability
  • central warehouse 4 pcs

1,659.44 €

Maximum flow [l/min]
500
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
2,37
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA1 50-150F 280 230V PN6/10

Product No.: ZB00002348 Sale group: CEGK1 EAN: 5712608943102 Manuf. No.: 99221337

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,911.78 €

Maximum flow [l/min]
500
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
2,87
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA1 50-180F 280 230V PN6/10

Product No.: ZB00002349 Sale group: CEGK1 EAN: 5712608943119 Manuf. No.: 99221338

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

2,241.51 €

Maximum flow [l/min]
583,33
Maximum head [m]
18
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
3,40
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA1 65-40F 340 230V PN6/10

Product No.: ZB00002350 Sale group: CEGK1 EAN: 5712608943546 Manuf. No.: 99221382

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,436.96 €

Check availability

Maximum flow [l/min]
466,67
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
0,90
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA1 65-60F 340 230V PN6/10

Product No.: ZB00002351 Sale group: CEGK1 EAN: 5712608943430 Manuf. No.: 99221371

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

1,639.64 €

Maximum flow [l/min]
583,33
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
1,64
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA1 65-80F 340 230V PN6/10

Product No.: ZB00002352 Sale group: CEGK1 EAN: 5712608943447 Manuf. No.: 99221372

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,786.71 €

Maximum flow [l/min]
583,33
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
2,11
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA1 65-100F 340 230V PN6/10

Product No.: ZB00002353 Sale group: CEGK1 EAN: 5712608943454 Manuf. No.: 99221373

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,884.11 €

Maximum flow [l/min]
666,67
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
2,73
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA1 65-120F 340 230V PN6/10

Product No.: ZB00002354 Sale group: CEGK1 EAN: 5712608943461 Manuf. No.: 99221374

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

2,019.63 €

Maximum flow [l/min]
750
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
3,42
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA1 65-150F 340 230V PN6/10

Product No.: ZB00002355 Sale group: CEGK1 EAN: 5712608943478 Manuf. No.: 99221375

in stock
5 pcs
Product availability
  • central warehouse 5 pcs

2,326.57 €

Maximum flow [l/min]
833,33
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
5,53
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA1 80-60F 360 230V PN6

Product No.: ZB00002356 Sale group: CEGK1 EAN: 5712608943782 Manuf. No.: 99221406

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,892.91 €

Maximum flow [l/min]
666,67
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
2,37
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 80-80F 360 230V PN6

Product No.: ZB00002357 Sale group: CEGK1 EAN: 5712608943799 Manuf. No.: 99221407

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,039.46 €

Not sellable online

Maximum flow [l/min]
750
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
3,14
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 80-100F 360 230V PN6

Product No.: ZB00030082 Sale group: CEGK1 EAN: 5712608943805 Manuf. No.: 99221408

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

2,221.62 €

Not sellable online

Maximum flow [l/min]
833,33
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
4,45
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 80-120F 360 230V PN6

Product No.: ZB00002358 Sale group: CEGK1 EAN: 5712608943812 Manuf. No.: 99221409

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

2,493.27 €

Not sellable online

Maximum flow [l/min]
916,67
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
5,59
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 80-60F 360 230V PN10

Product No.: ZB00030084 Sale group: CEGK1 EAN: 5712608943829 Manuf. No.: 99221410

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,986.67 €

Check availability

Maximum flow [l/min]
666,67
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
2,37
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 80-80F 360 230V PN10

Product No.: ZB00002362 Sale group: CEGK1 EAN: 5712608943836 Manuf. No.: 99221411

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,141.68 €

Not sellable online

Maximum flow [l/min]
750
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
3,14
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 80-100F 360 230V PN10

Product No.: ZB00002363 Sale group: CEGK1 EAN: 5712608943843 Manuf. No.: 99221412

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,332.32 €

Not sellable online

Maximum flow [l/min]
833,33
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
4,45
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 80-120F 360 230V PN10

Product No.: ZB00002364 Sale group: CEGK1 EAN: 5712608943850 Manuf. No.: 99221413

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

2,617.88 €

Not sellable online

Maximum flow [l/min]
916,67
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
5,59
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 100-40F 450 230V PN6

Product No.: ZB00030070 Sale group: CEGK1 EAN: 5712608944109 Manuf. No.: 99221438

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,020.39 €

Not sellable online

Maximum flow [l/min]
750
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
2.32
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 100-60F 450 230V PN6

Product No.: ZB00002359 Sale group: CEGK1 EAN: 5712608944116 Manuf. No.: 99221439

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,204.92 €

Not sellable online

Maximum flow [l/min]
866,67
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
3,13
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 100-80F 450 230V PN6

Product No.: ZB00002360 Sale group: CEGK1 EAN: 5712608944123 Manuf. No.: 99221440

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,386.48 €

Not sellable online

Maximum flow [l/min]
1 016,67
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
4,71
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 100-100F 450 230V PN6

Product No.: ZB00030066 Sale group: CEGK1 EAN: 5712608944130 Manuf. No.: 99221441

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,601.26 €

Not sellable online

Maximum flow [l/min]
1 183,33
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
6,23
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 100-120F 450 230V PN6

Product No.: ZB00030068 Sale group: CEGK1 EAN: 5712608944147 Manuf. No.: 99221442

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,947.92 €

Not sellable online

Maximum flow [l/min]
1 183,33
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
6,73
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 100-40F 450 230V PN10

Product No.: ZB00030069 Sale group: CEGK1 EAN: 5712608944154 Manuf. No.: 99221443

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,120.20 €

Not sellable online

Maximum flow [l/min]
750
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
2,32
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 100-60F 450 230V PN10

Product No.: ZB00030071 Sale group: CEGK1 EAN: 5712608944161 Manuf. No.: 99221444

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,313.80 €

Not sellable online

Maximum flow [l/min]
866,67
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
3,13
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 100-80F 450 230V PN10

Product No.: ZB00030072 Sale group: CEGK1 EAN: 5712608944178 Manuf. No.: 99221445

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,505.64 €

Not sellable online

Maximum flow [l/min]
1 016,67
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
4,71
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Product description

MAGNA1 is a cost-efficient circulator pump that gets the simpler jobs done

MAGNA1 is a canned rotor circulator pump, which is a cost-efficient solution for any jobs that do not require highly-advanced intelligent communication and control. The pump offers a fault relay output and a digital start/stop input, enabling integration with simple building management systems. MAGNA1 is designed to circulate liquids in a wide range of applications including heating, cooling, and domestic hot water systems, to name a few. Based on the tried and tested MAGNA technology of its predecessors, it is a reliable, cost-efficient and user-friendly circulator.

Best-in-class efficiency

MAGNA1 offers best-in-class efficiency, resulting in significant energy savings.

Easy operation

MAGNA1 is characterised by simplicity and can be commissioned just by the push of a button.

Simple connectivity

Its fault relay output and digital start/stop input allows for simple connectivity to external monitoring systems.

Tested to the limit

MAGNA1 is built on tried and tested MAGNA technology, which is your guarantee for a long-lasting pump.

Instructions

Technical Specifications

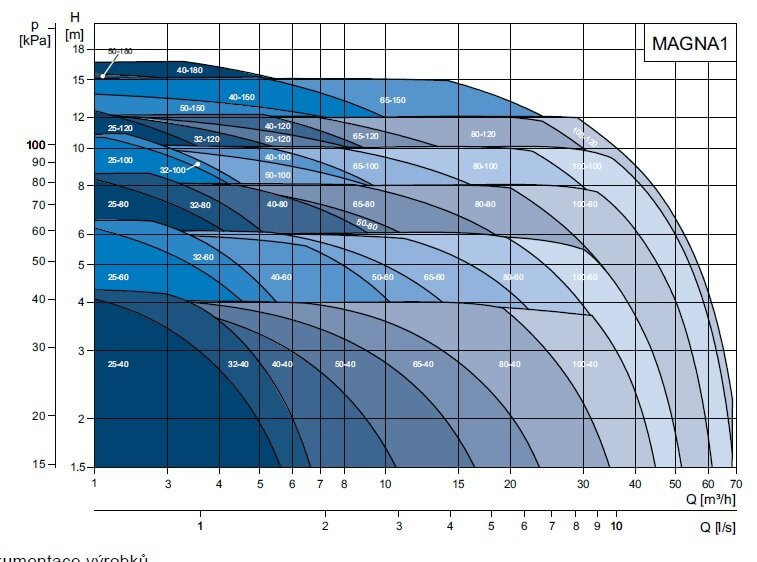

Maximum flow [l/min]
125 - 1,183.33
Maximum head [m]
4 - 18
Input voltage [V]
230
Suction port ["]
DN32, DN40, DN50, DN65, DN80, DN100
Delivery port ["]
DN32, DN40, DN50, DN65, DN80, DN100
Maximum current [A]
0.59 - 6.73
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
NO
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220, 250, 240, 280, 340, 360, 450
