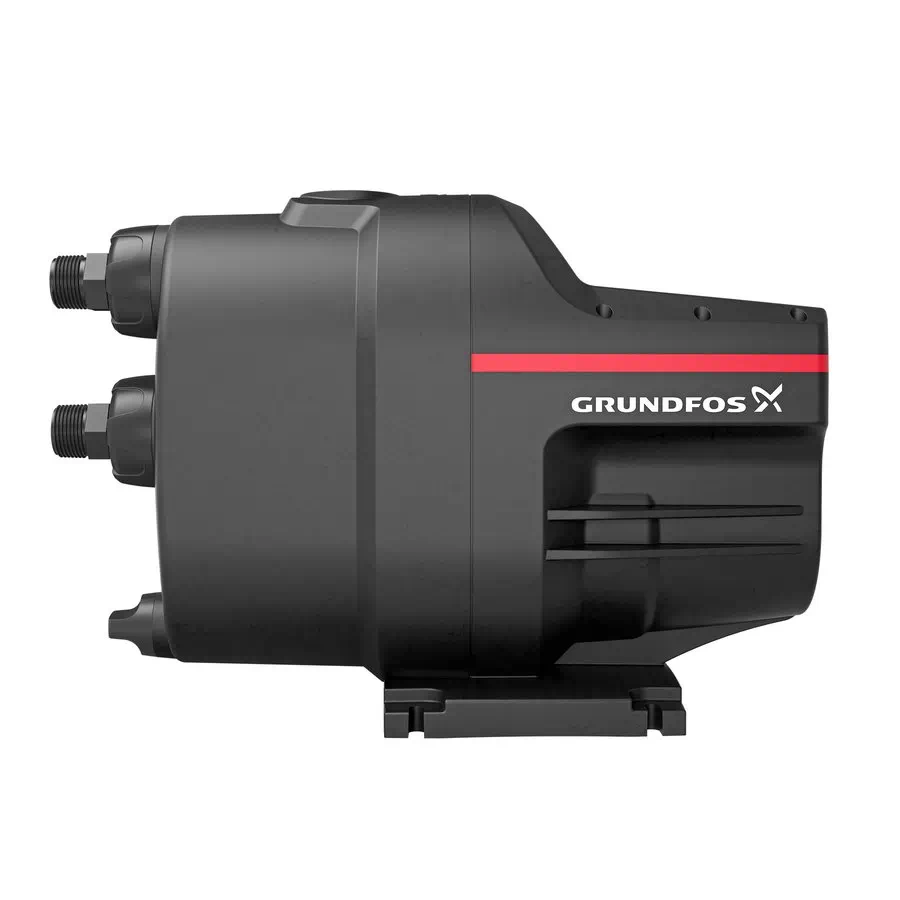

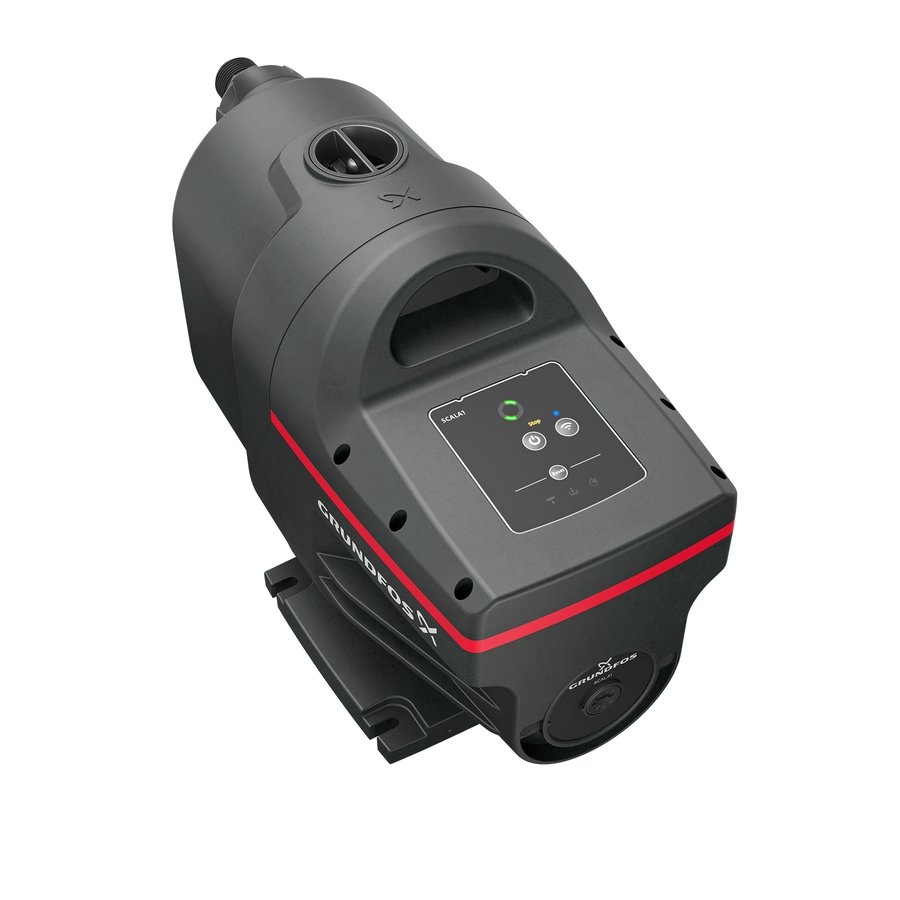

GRUNDFOS SCALA1 pressure booster pump

Grundfos SCALA1 is a compact self-priming domestic waterworks with an integrated control unit for automatic operation, a pressure vessel and a built-in non-return valve.
It is an all-in-one waterworks, which greatly facilitates its installation and commissioning.
The SCALA1 is made of high-quality and robust materials and is equipped with smart functions.
It is suitable for pumping water from shallow wells with a depth of up to 8 m, pumping water from reservoirs and boosting pressure from the water supply line.
The pump is supplied with a 1.5m cable terminated with a 230V plug. See more

Technical Specifications

Maximum flow [l/min]
91.50 - 120
Maximum head [m]
44 - 52
Input voltage [V]
230
Power output - P2 [kW]
0.58 - 0.78

Show all Tech Specs

in stock >10 pcs

from 467.22 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Automatic pressure booster pumps
Product No.:
MAS000994

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Start pressure [bar]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos SCALA1 3-45 1x230V 50Hz SCHUKO

Product No.: ZB00056410 Sale group: CEGJ EAN: 5713830591598 Manuf. No.: 99530405

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

467.22 €

Maximum flow [l/min]
91.50
Maximum head [m]
44
Input voltage [V]
230
Power output - P2 [kW]
0.58
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
YES
Maximum current [A]
4.10
Maximum liquid temperature [°C]
45
Start pressure [bar]
2,2
Protection [IP]
X4D
Automatic thermal protection
YES
Dry run protection
YES
Off switch
YES
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
fully intergrated, compact pressure booster

Grundfos SCALA1 5-55 1x230V 50Hz SCHUKO

Product No.: ZB00056411 Sale group: CEGJ EAN: 5713830592410 Manuf. No.: 99530407

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

532.65 €

Maximum flow [l/min]
120
Maximum head [m]
52
Input voltage [V]
230
Power output - P2 [kW]
0.78
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
YES
Maximum current [A]
5.38
Maximum liquid temperature [°C]
45
Start pressure [bar]
2,8
Protection [IP]
X4D
Automatic thermal protection
YES
Dry run protection
YES
Off switch
YES
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
fully intergrated, compact pressure booster

Product description

Grundfos SCALA1 is an all-in-one pressure boosting unit with a high-efficiency motor and hydraulics with low noise operation for domestic water supply and light commercial applications. Built-in Bluetooth communication gives you complete control over the ​pump using the Grundfos GO REMOTE, also for twin pump operation.

Therefore installation and commissioning is easy. The Grundfos GO REMOTE app shows alarm status and get easy pump diagnostics. You can create and email reports onsite and access hard-to-reach installations remotely from the app. ​

Application
Designed for pressure boosting in domestic installations. Use SCALA1 for:

  • pumping from a roof tank, break tank or ground tank
  • water supply from shallow wells (less than 8 m.)
  • pressure boosting from city mains water.

For domestic pressure boosting, you get water on demand for:

  • taps and showers in the home
  • garden and lawn irrigation.

In addition, SCALA1 is the perfect pressure boosting solution for light commercial applications as greenhouses, irrigation, car wash and produce (fruit and vegetable) section in supermarkets.​

If greater flow is required, this is easily done in a twin pump setup with the available accessories (including baseplate, cable and inlet and outlet manifolds).

Instructions

Technical Specifications

Maximum flow [l/min]
91.50 - 120
Maximum head [m]
44 - 52
Input voltage [V]
230
Power output - P2 [kW]
0.58 - 0.78
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
YES
Maximum current [A]
4.10 - 5.38
Maximum liquid temperature [°C]
45
Start pressure [bar]
2,2, 2,8
Protection [IP]
X4D
Automatic thermal protection
YES
Dry run protection
YES
Off switch
YES
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
fully intergrated, compact pressure booster
