GRUNDFOS SOLOLIFT 2 CWC-3 automatic lifting stations

previous next
GRUNDFOS SOLOLIFT 2 CWC-3 automatic lifting stations

Grundfos SOLOLIFT2 are small, compact, ready-to-install automatic lifting stations with integrated powerful cutter systems. Suitable for pumping wastewater with feces from private dwellings. The unit is designed according to EN 12050-3 See more

Technical Specifications

Maximum flow [l/min]
137
Maximum head [m]
8.50
Input voltage [V]
230
Power output - P2 [kW]
0.42

Show all Tech Specs

in stock 2 pcs

544.83 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Sewage lifting stations
Product No.:
MAS000520

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Power input - P1 [kW]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos Sololift2 CWC-3 230V 0,62kW lifting station for wastewater with feces

Product No.: ZB00002622 Sale group: CEGJ EAN: 5710624187258 Manuf. No.: 97775316

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

544.83 €

Maximum flow [l/min]
137
Maximum head [m]
8,50
Input voltage [V]
230
Power output - P2 [kW]
0,42
Power input - P1 [kW]
0,62
Drinking water certificate
NO
Maximum current [A]
3
Maximum liquid temperature [°C]
50
Cable length [m]
1,20
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
with centrifugal pumps
Grinder
YES

Product description

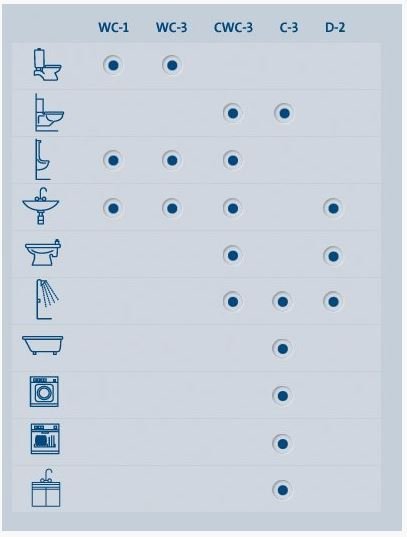

Sololift2 CWC-3 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope. Sololift2 CWC-3 is typically used for:

  • wall-hung toilets, cabinet showers and washbasins in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.

Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor. Sololift2 CWC-3 is suitable for installation in a hollow space behind a wall-hung toilet. This lifting station is only suitable for pumping wastewater from a cabinet shower and a washbasin as well as sewage water from a toilet containing toilet paper and faeces. The pumping of liquids containing other material may cause faults and limit the scope of our guarantee. The compact lifting station is equipped with

  • Cable with or without plug (see technical data)
  • Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm
  • integrated non return valve
  • Dry and high performance motor unit incl. thermal protection, pressure switch and controller
  • DN100 toilet connection hose
  • Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
  • Slot for an alarm board with buzzer (accessory)
  • Manual anti clogging function and separate drain connection for service
  • Venting valve with overflow protection
  • Uplift fixation clips

Design according to EN12050-3 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.

Instructions

Technical Specifications

Maximum flow [l/min]
137
Maximum head [m]
8.50
Input voltage [V]
230
Power output - P2 [kW]
0.42
Power input - P1 [kW]
0.62
Drinking water certificate
NO
Maximum current [A]
3
Maximum liquid temperature [°C]
50
Cable length [m]
1.20
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
with centrifugal pumps
Grinder
YES
