Grundfos SP 2A-13 0,55kW 400V submersible groundwater pump with 30m cable

Grundfos SP are submersible borehole pumps, designed for pumping groundwater. Grundfos SP are all stainless-steel pumps, and they are available in 3 material grades. The pumps are suitable for boreholes in sizes ranging from 4" over 6" and 8" to 10". The motor sizes for the pumps are available in 0.37-250 kW See more

Technical Specifications

Maximum flow [l/min]
43
Maximum head [m]
75
Input voltage [V]
3x400
Power output - P2 [kW]
0,55

Show all Tech Specs

in stock 3 pcs

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us by email [email protected]

1,249.95 € VAT included

Not sellable online

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Submersible borehole pumps
Product No.:
ZB00002568
Sale group:
CEGJ1
EAN:
5712605900702
Manuf. No.:
99055178

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos SP 2A-13 0,55kW 400V submersible groundwater pump with 30m cable

Product No.: ZB00002568 Sale group: CEGJ1 EAN: 5712605900702 Manuf. No.: 99055178

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

1,249.95 €

Not sellable online

Maximum flow [l/min]
43
Maximum head [m]
75
Input voltage [V]
3x400
Power output - P2 [kW]
0,55
Rated flow [l/m]
28
Rated head [m]
49
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
2,20
Maximum liquid temperature [°C]
40
Cable length [m]
30
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal
You are viewing this variant

Grundfos SP 2A-18 0,75kW 400V submersible groundwater pump with 30m cable

Product No.: ZB00002494 Sale group: CEGJ1 EAN: 5712605900696 Manuf. No.: 99055177

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

1,333.10 €

Not sellable online

Maximum flow [l/min]
43
Maximum head [m]
110
Input voltage [V]
3x400
Power output - P2 [kW]
0,75
Rated flow [l/m]
28
Rated head [m]
72
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
2,30
Maximum liquid temperature [°C]
40
Cable length [m]
30
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-17 1,5kW 400V submersible groundwater pump with 30m cable

Product No.: ZB00002501 Sale group: CEGJ1 EAN: 5712605900740 Manuf. No.: 99055180

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,471.11 €

Not sellable online

Maximum flow [l/min]
106
Maximum head [m]
110
Input voltage [V]
3x400
Power output - P2 [kW]
1,50
Rated flow [l/m]
68
Rated head [m]
72
Delivery port ["]
6/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
4,20
Maximum liquid temperature [°C]
40
Cable length [m]
30
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Product description

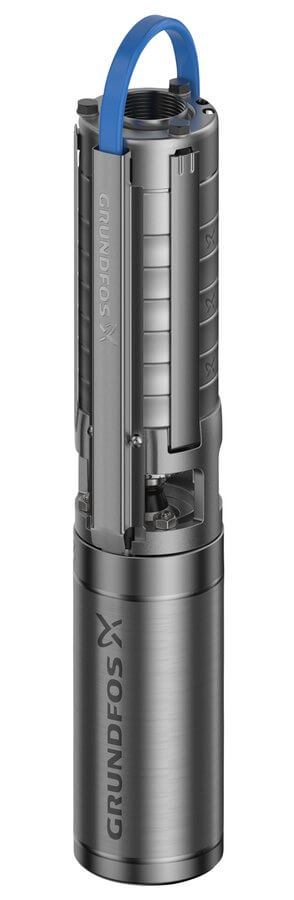

The Grundfos SP submersible pump is a highly durable pump made of high-quality stainless steel.

Thanks to the optimized hydraulic design, SP provides optimal efficiency and low operating costs and high operational reliability. These pumps are suitable for various applications such as groundwater pumping in water management, irrigation, groundwater level reduction, pressure boosting and industrial applications.

Corrosion resistant

High-quality AISI 304 stainless steel, inside and out, makes the SP pump extremely corrosion-resistant.

Right solution

The SP submersible pump is available in many variants and sizes and can be adapted to the specific application.

Reverse throttle valve

Its built-in non-return valve minimizes the risk of water shock damage.

Instructions

Technical Specifications

Maximum flow [l/min]
43
Maximum head [m]
75
Input voltage [V]
3x400
Power output - P2 [kW]
0,55
Rated flow [l/m]
28
Rated head [m]
49
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
2,20
Maximum liquid temperature [°C]
40
Cable length [m]
30
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal
