GRUNDFOS SP 5A 4 "submersible pumps 400V

Drinking water certificate Stainless steel

previous next
GRUNDFOS SP 5A 4 "submersible pumps 400V

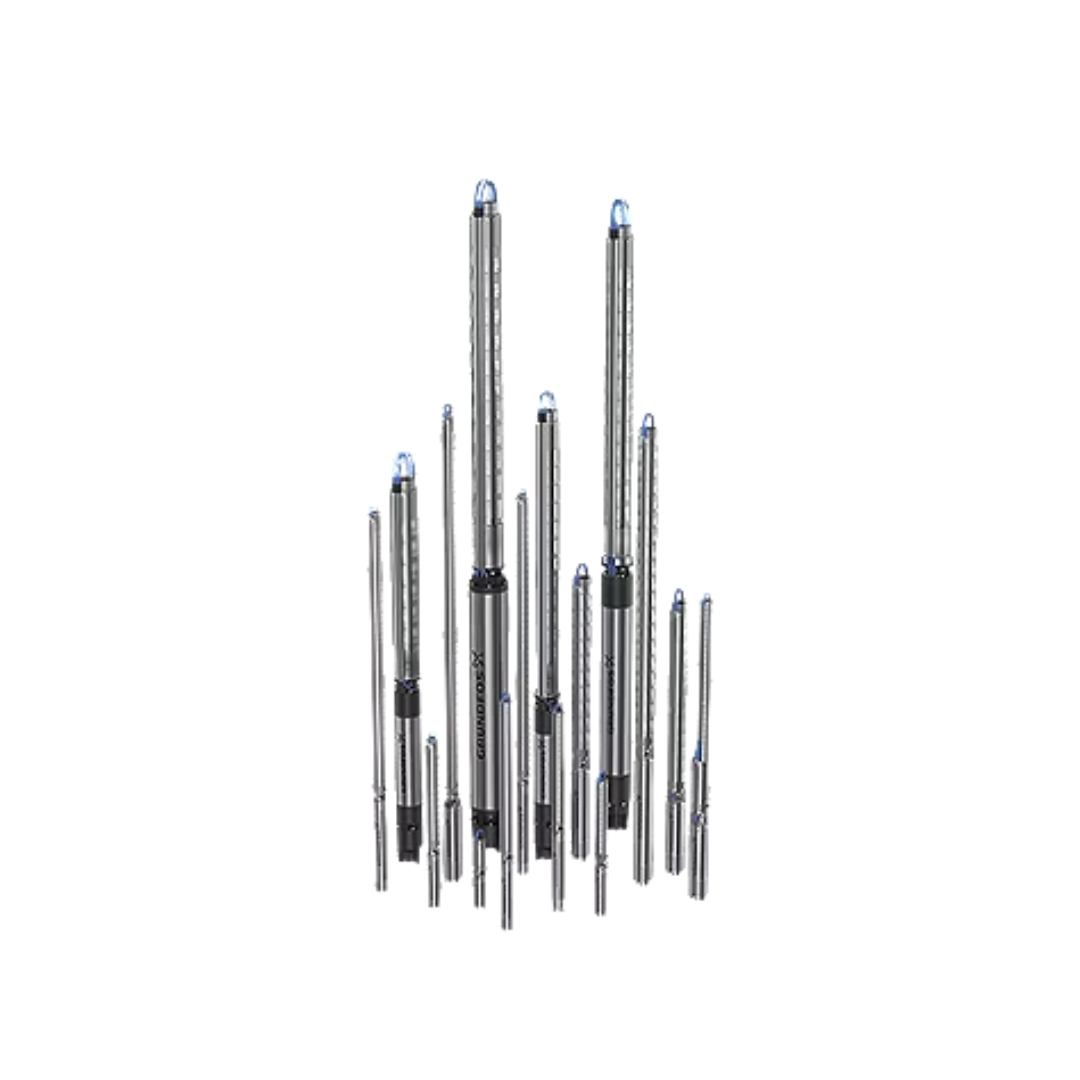

Grundfos SP are submersible borehole pumps, designed for pumping groundwater. Grundfos SP are all stainless-steel pumps, and they are available in 3 material grades. The pumps are suitable for boreholes in sizes ranging 4". The motor sizes for the pumps are available in 0.37-250 kW See more

Technical Specifications

Maximum flow [l/min]
108
Maximum head [m]
25 - 540
Input voltage [V]
3x400
Power output - P2 [kW]
0.37 - 7.50

Show all Tech Specs

in stock 6 pcs

from 753.95 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Submersible borehole pumps
Product No.:
MAS001471

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos SP 5A-4 0.37kW 400V Rp6 / 4 "submersible pump

Product No.: ZB00012223 Sale group: CEGWH EAN: 5708601051456 Manuf. No.: 05001K04

on demand
check availability
Product availability
  • central warehouse 0 pcs

753.95 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
25
Input voltage [V]
3x400
Power output - P2 [kW]
0.37
Rated flow [l/m]
70
Rated head [m]
16
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
1.40
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-6 0.55kW 400V Rp6 / 4 "submersible pump

Product No.: ZB00014797 Sale group: CEGWH EAN: 5708601051463 Manuf. No.: 05001K06

on demand
check availability
Product availability
  • central warehouse 0 pcs

784.33 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
38
Input voltage [V]
3x400
Power output - P2 [kW]
0.55
Rated flow [l/m]
70
Rated head [m]
25
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
2.20
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-8 0.75kW 400V Rp6 / 4 "submersible pump

Product No.: ZB00014765 Sale group: CEGWH EAN: 5708601051470 Manuf. No.: 05001K08

on demand
check availability
Product availability
  • central warehouse 0 pcs

856.35 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
51
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Rated flow [l/m]
70
Rated head [m]
33
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
2.30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-12 1.1kW 400V Rp6 / 4 "submersible pump

Product No.: ZB00002430 Sale group: CEGWH EAN: 5708601051487 Manuf. No.: 05001K12

on demand
check availability
Product availability
  • central warehouse 0 pcs

967.76 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
76
Input voltage [V]
3x400
Power output - P2 [kW]
1.10
Rated flow [l/m]
70
Rated head [m]
49
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
3.40
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-17 1.5kW 400V Rp6 / 4 "submersible pump

Product No.: ZB00002431 Sale group: CEGWH EAN: 5708601051494 Manuf. No.: 05001K17

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,097.17 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
108
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Rated flow [l/m]
68
Rated head [m]
72
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
4.20
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-21 2,2kW 400V submersible groundwater pump

Product No.: ZB00002450 Sale group: CEGWH EAN: 5708601059315 Manuf. No.: 05001K21

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

1,258.09 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
135
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Rated flow [l/m]
70
Rated head [m]
88
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
5.50
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-25 2,2kW 400V submersible groundwater pump

Product No.: ZB00014798 Sale group: CEGWH EAN: 5708601059322 Manuf. No.: 05001K25

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,310.97 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
160
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Rated flow [l/m]
70
Rated head [m]
104
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
5.50
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-33 3,0kW 400V submersible groundwater pump

Product No.: ZB00014799 Sale group: CEGWH EAN: 5708601059339 Manuf. No.: 05001K33

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

1,736.34 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
210
Input voltage [V]
3x400
Power output - P2 [kW]
3
Rated flow [l/m]
70
Rated head [m]
137
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
7.85
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-38 4,0kW 400V submersible groundwater pump

Product No.: ZB00014800 Sale group: CEGWH EAN: 5708601059346 Manuf. No.: 05101K38

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,178.97 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
250
Input voltage [V]
3x400
Power output - P2 [kW]
4
Rated flow [l/m]
70
Rated head [m]
163
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
9.60
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-44 4.0kW 400V Rp6 / 4 "submersible pump

Product No.: ZB00014801 Sale group: CEGWH EAN: 5708601059353 Manuf. No.: 05101K44

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,435.54 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
280
Input voltage [V]
3x400
Power output - P2 [kW]
4
Rated flow [l/m]
70
Rated head [m]
182
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
9.60
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-52 5.5kW 400V Rp6 / 4 "submersible pump

Product No.: ZB00030705 Sale group: CEGWH EAN: 5700391119668 Manuf. No.: 05171K52

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,293.02 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
333
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Rated flow [l/m]
70
Rated head [m]
216
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
13
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-60 5.5kW 400V Rp6 / 4 "submersible pump

Product No.: ZB00030706 Sale group: CEGWH EAN: 5700391119705 Manuf. No.: 05171K60

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,635.11 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
383
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Rated flow [l/m]
70
Rated head [m]
249
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
13
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-75 7.5kW 400V Rp6 / 4 "submersible pump

Product No.: ZB00067426 Sale group: CEGWH EAN: 5700390243968 Manuf. No.: 5301975

on demand
check availability
Product availability
  • central warehouse 0 pcs

8,901.12 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
480
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Rated flow [l/m]
70
Rated head [m]
312
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
17.20
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Grundfos SP 5A-85 7.5kW 400V Rp6 / 4 "submersible pump

Product No.: ZB00067427 Sale group: CEGWH EAN: 5700390244026 Manuf. No.: 5301985

on demand
check availability
Product availability
  • central warehouse 0 pcs

9,658.45 €

Not sellable online

Maximum flow [l/min]
108
Maximum head [m]
540
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Rated flow [l/m]
70
Rated head [m]
351
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
17.20
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal

Product description

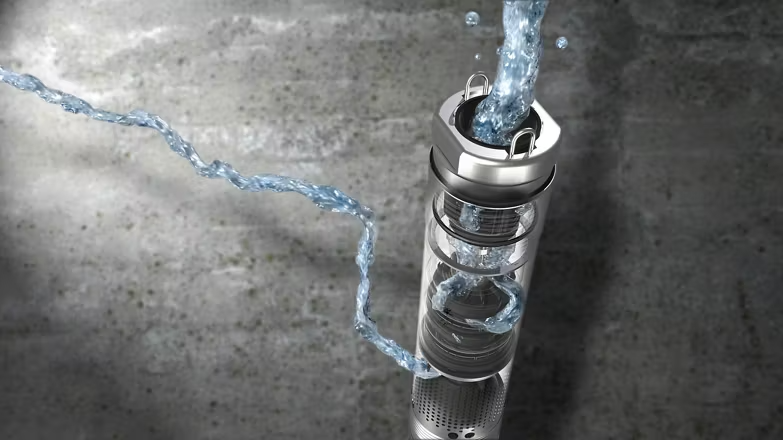

The Grundfos SP submersible pump is a highly durable pump made of high-quality stainless steel.

Thanks to the optimized hydraulic design, SP provides optimal efficiency and low operating costs and high operational reliability. These pumps are suitable for various applications such as groundwater pumping in water management, irrigation, groundwater level reduction, pressure boosting and industrial applications.

Corrosion resistant

High-quality AISI 304 stainless steel, inside and out, makes the SP pump extremely corrosion-resistant.

Right solution

The SP submersible pump is available in many variants and sizes and can be adapted to the specific application.

Reverse throttle valve

Its built-in non-return valve minimizes the risk of water shock damage.

Instructions

Technical Specifications

Maximum flow [l/min]
108
Maximum head [m]
25 - 540
Input voltage [V]
3x400
Power output - P2 [kW]
0.37 - 7.50
Rated flow [l/m]
68 - 70
Rated head [m]
16 - 351
Delivery port ["]
6/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
1.40 - 17.20
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
101
Impeller material
stainless steel
Construction
centrifugal
