GRUNDFOS SQ 3 submersible groundwater pumps

Grundfos SQ pumps are compact submersible pumps, designed for domestic groundwater supply for private housing, small waterworks, and small irrigation systems See more

Technical Specifications

Maximum flow [l/min]
66
Maximum head [m]
35 - 145
Input voltage [V]
230
Power output - P2 [kW]
0.70 - 1.85

Show all Tech Specs

in stock >50 pcs

from 879.19 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Submersible borehole pumps
Product No.:
MAS000540

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos SQ3-30 230V 3" submersible groundwater pump

Product No.: ZB00030756 Sale group: CEGWJ EAN: 5700396504261 Manuf. No.: 96510204

on demand
check availability
Product availability
  • central warehouse 0 pcs

879.19 €

Check availability

Maximum flow [l/min]
66
Maximum head [m]
35
Input voltage [V]
230
Power output - P2 [kW]
0,70
Rated flow [l/m]
42
Rated head [m]
23
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
5,20
Maximum liquid temperature [°C]
35
Cable length [m]
1,50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
74
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-40 230V 3" submersible groundwater pump

Product No.: ZB00014780 Sale group: CEGWJ EAN: 5700396504278 Manuf. No.: 96510205

on demand
check availability
Product availability
  • central warehouse 0 pcs

930.01 €

Check availability

Maximum flow [l/min]
66
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
0,70
Rated flow [l/m]
42
Rated head [m]
36
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
5,20
Maximum liquid temperature [°C]
35
Cable length [m]
1,50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
74
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-55 230V 3" submersible groundwater pump

Product No.: ZB00014781 Sale group: CEGWJ EAN: 5700396504285 Manuf. No.: 96510206

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,075.93 €

Maximum flow [l/min]
66
Maximum head [m]
70
Input voltage [V]
230
Power output - P2 [kW]
1,15
Rated flow [l/m]
42
Rated head [m]
46
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
8,40
Maximum liquid temperature [°C]
35
Cable length [m]
1,50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
74
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-65 230V 3" submersible groundwater pump

Product No.: ZB00002440 Sale group: CEGWJ EAN: 5700396504308 Manuf. No.: 96510207

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

1,204.43 €

Maximum flow [l/min]
66
Maximum head [m]
90
Input voltage [V]
230
Power output - P2 [kW]
1,15
Rated flow [l/m]
42
Rated head [m]
59
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
8,40
Maximum liquid temperature [°C]
35
Cable length [m]
1,50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
74
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-65 230V " submersible groundwater pump, 30m cable

Product No.: ZB00040228 Sale group: CEGJ1 EAN: 5700396929996 Manuf. No.: 96524439

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

1,327.96 €

Maximum flow [l/min]
66
Maximum head [m]
90
Input voltage [V]
230
Power output - P2 [kW]
1,15
Rated flow [l/m]
42
Rated head [m]
59
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
8,40
Maximum liquid temperature [°C]
35
Cable length [m]
30
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
74
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-65 230V 3" submersible groundwater pump + 30m cable 3x1,5 with drinking water certificate

Product No.: ZB00060612 Sale group: CEGSQ EAN: 8596455034698 Manuf. No.: 96510207 + TEKADRINK

in stock
1 pcs
Product availability
  • central warehouse 1 pcs
  • available within 5 working days >10 pcs

1,127.29 €

Maximum flow [l/min]
66
Maximum head [m]
90
Input voltage [V]
230
Power output - P2 [kW]
1,15
Rated flow [l/m]
42
Rated head [m]
59
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
8,40
Cable length [m]
30
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-65 230V 3" submersible groundwater pump + 35m cable 3x1,5 with drinking water certificate

Product No.: ZB00060613 Sale group: CEGSQ EAN: 8596455034704 Manuf. No.: 96510207 + TEKADRINK

in stock
1 pcs
Product availability
  • central warehouse 1 pcs
  • available within 5 working days >10 pcs

1,137.44 €

Maximum flow [l/min]
66
Maximum head [m]
90
Input voltage [V]
230
Power output - P2 [kW]
1,15
Rated flow [l/m]
42
Rated head [m]
59
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
8,40
Cable length [m]
35
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-65 230V 3" submersible groundwater pump + 40m cable 3x1,5 with drinking water certificate

Product No.: ZB00060614 Sale group: CEGSQ EAN: 8596455034711 Manuf. No.: 96510207 + TEKADRINK

in stock
1 pcs
Product availability
  • central warehouse 1 pcs
  • available within 5 working days >10 pcs

1,147.76 €

Maximum flow [l/min]
66
Maximum head [m]
90
Input voltage [V]
230
Power output - P2 [kW]
1,15
Rated flow [l/m]
42
Rated head [m]
59
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
8,40
Cable length [m]
40
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-65 230V 3" submersible groundwater pump + 45m cable 3x1,5 with drinking water certificate

Product No.: ZB00060615 Sale group: CEGSQ EAN: 8596455034728 Manuf. No.: 96510207 + TEKADRINK

in stock
2 pcs
Product availability
  • central warehouse 2 pcs
  • available within 5 working days >10 pcs

1,157.96 €

Maximum flow [l/min]
66
Maximum head [m]
90
Input voltage [V]
230
Power output - P2 [kW]
1,15
Rated flow [l/m]
42
Rated head [m]
59
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
8,40
Cable length [m]
45
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-65 230V 3" submersible groundwater pump + 50m cable 3x2,5 with drinking water certificate

Product No.: ZB00060616 Sale group: CEGSQ EAN: 8596455034735 Manuf. No.: 96510207 + TEKADRINK

in stock
1 pcs
Product availability
  • central warehouse 1 pcs
  • available within 5 working days >10 pcs

1,168.10 €

Maximum flow [l/min]
66
Maximum head [m]
90
Input voltage [V]
230
Power output - P2 [kW]
1,15
Rated flow [l/m]
42
Rated head [m]
59
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
8,40
Cable length [m]
50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-80 230V " submersible groundwater pump

Product No.: ZB00002441 Sale group: CEGWJ EAN: 5700396504315 Manuf. No.: 96510208

in stock
5 pcs
Product availability
  • central warehouse 5 pcs

1,493.38 €

Maximum flow [l/min]
66
Maximum head [m]
105
Input voltage [V]
230
Power output - P2 [kW]
1,55
Rated flow [l/m]
42
Rated head [m]
68
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
11,20
Maximum liquid temperature [°C]
35
Cable length [m]
1,50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
74
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-80 230V 3" submersible groundwater pump + 40m cable 3x1,5 with drinking water certificate

Product No.: ZB00060617 Sale group: CEGSQ EAN: 8596455034742 Manuf. No.: 96510208 + TEKADRINK

available in 5 working days
5 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 5 pcs

1,433.56 €

Maximum flow [l/min]
66
Maximum head [m]
105
Input voltage [V]
230
Power output - P2 [kW]
1,55
Rated flow [l/m]
42
Rated head [m]
68
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
11,20
Cable length [m]
40
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-80 230V 3" submersible groundwater pump + 50m cable 3x2,5 with drinking water certificate

Product No.: ZB00060618 Sale group: CEGSQ EAN: 8596455034759 Manuf. No.: 96510208 + TEKADRINK

available in 5 working days
5 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 5 pcs

1,448.89 €

Maximum flow [l/min]
66
Maximum head [m]
105
Input voltage [V]
230
Power output - P2 [kW]
1,55
Rated flow [l/m]
42
Rated head [m]
68
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
11,20
Cable length [m]
50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-80 230V 3" submersible groundwater pump + 60m cable 3x2,5 with drinking water certificate

Product No.: ZB00060619 Sale group: CEGSQ EAN: 8596455034766 Manuf. No.: 96510208 + TEKADRINK

available in 5 working days
5 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 5 pcs

1,469.32 €

Maximum flow [l/min]
66
Maximum head [m]
105
Input voltage [V]
230
Power output - P2 [kW]
1,55
Rated flow [l/m]
42
Rated head [m]
68
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
11,20
Cable length [m]
60
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-95 230V 3" submersible groundwater pump

Product No.: ZB00002419 Sale group: CEGWJ EAN: 5700396504322 Manuf. No.: 96510209

in stock
7 pcs
Product availability
  • central warehouse 7 pcs

1,547.11 €

Maximum flow [l/min]
66
Maximum head [m]
125
Input voltage [V]
230
Power output - P2 [kW]
1,55
Rated flow [l/m]
42
Rated head [m]
81
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
11,20
Maximum liquid temperature [°C]
35
Cable length [m]
1,50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
74
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-95 230V 3" submersible groundwater pump + 40m cable 3x1,5 with drinking water certificate

Product No.: ZB00060620 Sale group: CEGSQ EAN: 8596455034773 Manuf. No.: 96510209 + TEKADRINK

available in 5 working days
7 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 7 pcs

1,611.20 €

Maximum flow [l/min]
66
Maximum head [m]
125
Input voltage [V]
230
Power output - P2 [kW]
1,55
Rated flow [l/m]
42
Rated head [m]
81
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
11,20
Cable length [m]
40
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-95 230V 3" submersible groundwater pump + 50m cable 3x2,5 with drinking water certificate

Product No.: ZB00060621 Sale group: CEGSQ EAN: 8596455034780 Manuf. No.: 96510209 + TEKADRINK

available in 5 working days
7 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 7 pcs

1,621.35 €

Maximum flow [l/min]
66
Maximum head [m]
125
Input voltage [V]
230
Power output - P2 [kW]
1,55
Rated flow [l/m]
42
Rated head [m]
81
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
11,20
Cable length [m]
50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-95 230V 3" submersible groundwater pump + 60m cable 3x2,5 with drinking water certificate

Product No.: ZB00060622 Sale group: CEGSQ EAN: 8596455034797 Manuf. No.: 96510209 + TEKADRINK

available in 5 working days
7 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 7 pcs

1,631.50 €

Maximum flow [l/min]
66
Maximum head [m]
125
Input voltage [V]
230
Power output - P2 [kW]
1,55
Rated flow [l/m]
42
Rated head [m]
81
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
11,20
Cable length [m]
60
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-105 230V 3" submersible groundwater pump

Product No.: ZB00002446 Sale group: CEGWJ EAN: 5700396504339 Manuf. No.: 96510210

in stock
6 pcs
Product availability
  • central warehouse 6 pcs

1,597.93 €

Maximum flow [l/min]
66
Maximum head [m]
145
Input voltage [V]
230
Power output - P2 [kW]
1,85
Rated flow [l/m]
42
Rated head [m]
94
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
12,30
Maximum liquid temperature [°C]
35
Cable length [m]
1,50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
74
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-105 230V 3" submersible groundwater pump + 60m cable 3x4 with drinking water certificate

Product No.: ZB00060623 Sale group: CEGSQ EAN: 8596455034803 Manuf. No.: 96510210 + TEKADRINK

available in 5 working days
6 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 6 pcs

1,742.01 €

Maximum flow [l/min]
66
Maximum head [m]
145
Input voltage [V]
230
Power output - P2 [kW]
1,85
Rated flow [l/m]
42
Rated head [m]
94
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
12,30
Cable length [m]
60
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-105 230V 3" submersible groundwater pump + 70m cable 3x4 with drinking water certificate

Product No.: ZB00060624 Sale group: CEGSQ EAN: 8596455034810 Manuf. No.: 96510210 + TEKADRINK

available in 5 working days
6 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 6 pcs

1,767.62 €

Maximum flow [l/min]
66
Maximum head [m]
145
Input voltage [V]
230
Power output - P2 [kW]
1,85
Rated flow [l/m]
42
Rated head [m]
94
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
12,30
Cable length [m]
70
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-105 230V 3" submersible groundwater pump + 80m cable 3x4 with drinking water certificate

Product No.: ZB00060625 Sale group: CEGSQ EAN: 8596455034827 Manuf. No.: 96510210 + TEKADRINK

available in 5 working days
6 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 6 pcs

1,793.15 €

Maximum flow [l/min]
66
Maximum head [m]
145
Input voltage [V]
230
Power output - P2 [kW]
1,85
Rated flow [l/m]
42
Rated head [m]
94
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
12,30
Cable length [m]
80
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Grundfos SQ3-105 230V 3" submersible groundwater pump + 90m cable 3x6 H07 BB-F with drinking water certificate

Product No.: ZB00060626 Sale group: CEGSQ EAN: 8596455034834 Manuf. No.: 96510210 + KABEL BBF

available in 5 working days
2 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 2 pcs

1,818.80 €

Maximum flow [l/min]
66
Maximum head [m]
145
Input voltage [V]
230
Power output - P2 [kW]
1,85
Rated flow [l/m]
42
Rated head [m]
94
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
12,30
Cable length [m]
90
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
noryl
Construction
centrifugal

Product description

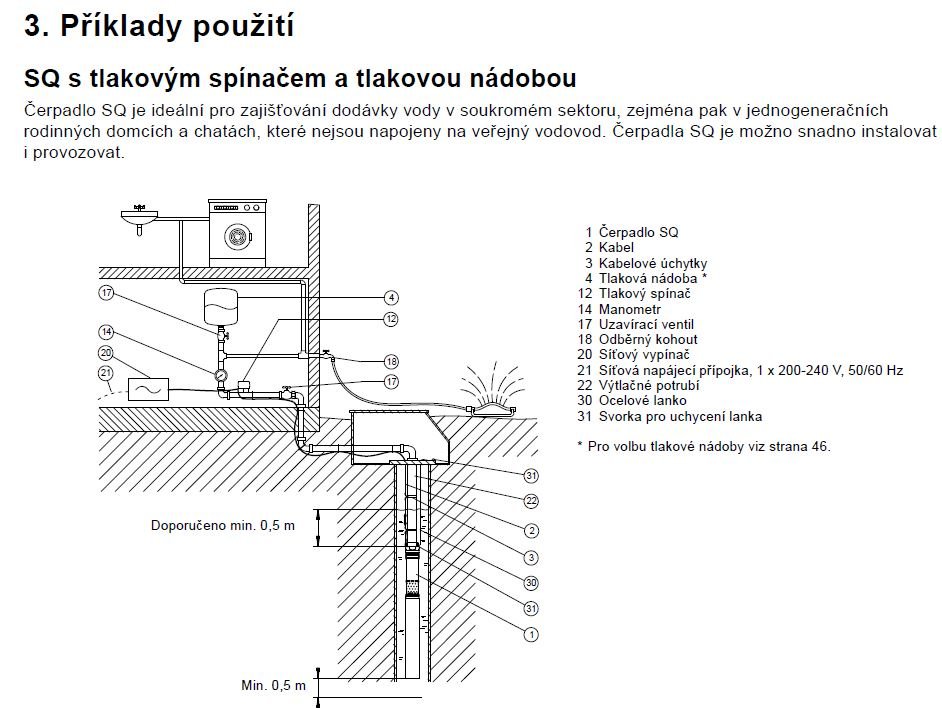

3" multi-stage, submersible pump designed for domestic water supply, liquid transfer in tanks, irrigation and environmental applications. The pump has "floating" impellers, each with its own tungsten carbide/ceramic bearing.

The pump features soft starting and protection against dry-running, upthrust, overvoltage, undervoltage, overload and overtemperature.

The motor is a single-phase motor of the permanent magnet rotor type ensuring optimum efficiency within a wide load range. The motor is fitted with a replaceable end cover with socket.

Instructions

Technical Specifications

Maximum flow [l/min]
66
Maximum head [m]
35 - 145
Input voltage [V]
230
Power output - P2 [kW]
0.70 - 1.85
Rated flow [l/m]
42
Rated head [m]
23 - 94
Delivery port ["]
5/4
Pump diameter ["]
3
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
5.20 - 12.30
Maximum liquid temperature [°C]
35
Cable length [m]
1.50 - 90
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
74
Impeller material
noryl
Construction
centrifugal
