GWS Max high pressure maintenance free pressure tanks

From skyscrapers, high-rise commercial and residential buildings to large-scale irrigation and industrial systems, Max tanks are the #1 choice of engineers, designers, consultants and specifiers worldwide. Max™ tanks feature the same quality, maintenance-free construction as the PressureWave™ series and are made of stronger steel to handle even the most demanding high-pressure applications. See more

Technical Specifications

Drinking water certificate
YES
Vessel volume [l]
8, 12, 18, 24, 35, 60, 80, 100
Maximum liquid temperature [°C]
90
Maximum pressure [bar]
16 - 16

Show all Tech Specs

in stock >10 pcs

from 137.94 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
Global Water Solutions
Category:
Expansion vessels for cold water
Product No.:
MAS001607

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Vessel volume [l]
  • Maximum liquid temperature [°C]
  • Maximum pressure [bar]
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Product description

From skyscrapers, high-rise commercial and residential buildings to large-scale irrigation and industrial systems, Max tanks are the #1 choice of engineers, designers, consultants and specifiers worldwide. Max™ tanks feature the same quality, maintenance-free construction as the PressureWave™ series and are made of stronger steel to handle even the most demanding high-pressure applications.

USE

  • high pressure water supply
  • high pressure flushing
  • Pressure control in fire pumps and sprinkler systems
  • protection against pressure surges caused by hydraulic surges and water surges
  • High-rise buildings, agriculture, hotels, hospitals, schools and universities

TECHNICAL PARAMETERS

  • Maximum volume: 2 - 100 l
  • Maximum operating pressure: 16 bar
  • factory pressure: 4 bar
  • maximum working temperature 90 °C
  • connection dimension: 1″

ADVANTAGES

The number 1 choice for high pressure tanks!

Industry experts agree that Max tanks are the best solution for applications where high pressure tanks are needed. Whether it's for high pressure water supply, high pressure flushing, pressure control in fire pumps and sprinkler systems or protection against pressure surges caused by hydraulic shocks and water hammer.

Maintenance-free

Max™ tanks feature the same high-quality, maintenance-free design as the PressureWave™ range

High-strength steel construction

Tanks are made of stronger steel to handle even the most demanding high pressure applications.

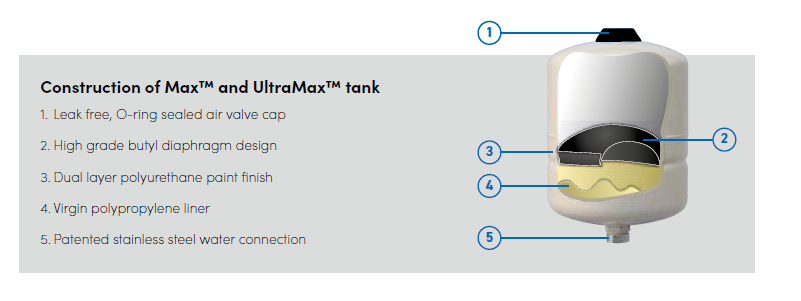

High quality design and comprehensive testing

  • High quality butyl membrane
  • Patented stainless steel water connection
  • Virgin polypropylene liner
  • Dual layer polyurethane paint finish
  • Leak-free, O-ring sealed air valve cap

Replaceable tank base

Extended warranty

All MAX containers come with a 5-year extended warranty.

Instructions

Technical Specifications

Drinking water certificate
YES
Vessel volume [l]
8, 12, 18, 24, 35, 60, 80, 100
Maximum liquid temperature [°C]
90
Maximum pressure [bar]
16 - 16
Construction
membrane
