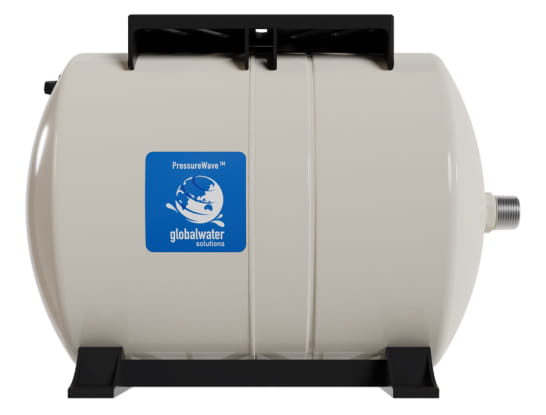

GWS PressureWave PWB-LH maintenance free horizontal expansion vessels

Drinking water certificate Extended warranty

previous next
GWS PressureWave PWB-LH maintenance free horizontal expansion vessels

The PressureWave™ series are superior quality, versatile pressure tanks.  Models are available from 2 to 150 liters, with a maximum working pressure of 10 bar, making them ideal for a range  of applications. See more

Technical Specifications

Drinking water certificate
YES
Vessel volume [l]
8, 12, 20, 24, 35, 60, 80, 110
Maximum liquid temperature [°C]
90
Maximum pressure [bar]
10 - 10

Show all Tech Specs

in stock >100 pcs

from 116.16 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
Global Water Solutions
Category:
Expansion vessels for cold water
Product No.:
MAS000455

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Vessel volume [l]
  • Maximum liquid temperature [°C]
  • Maximum pressure [bar]
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Product description

  • Capacity: 2 - 150 liter / 0.5 - 40 gallon
  • Maximum working pressure: 10 bar / 150 psi
  • Factory pre-charge: 1.9 bar / 28 psi
  • Maximum operating temperature: 90° C / 194° F

PressureWave™ tanks are superior quality, versatile pressure vessels suitable for a range of applications including:

  • Booster systems
  • Well systems
  • Irrigation systems
  • Thermal expansion
  • Hydronic heating expansion
  • Hydraulic hammer arresting
  • Clean water backwash for Ultra-Filtration systems
  • PressureWave™ tanks undergo rigorous testing and inspection throughout the production process to ensure optimum structural integrity and to ensure they meet the highest standard in terms of performance and material certifications.

PressureWave™ tanks are the number one selling tanks in the industry and are the top choice for the world’s leading pump manufacturers and distributors.

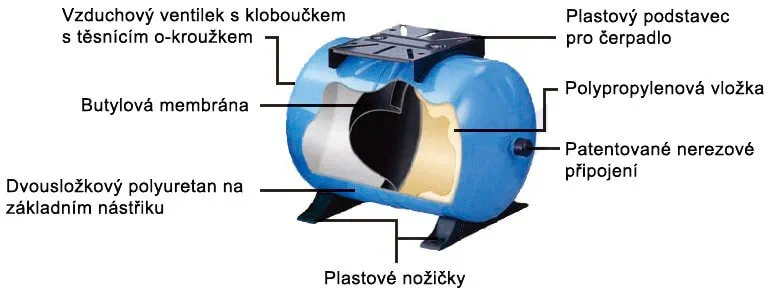

Features & Benefits

  • Maintenance Free
  • Diaphragm design
  • Patented stainless steel water connection
  • Virgin polypropylene liner
  • Two-part polyurethane, epoxy primed paint finish
  • Leak-free, O-ring sealed air valve cap
  • Inline models equipped with reinforced connection plate (RCP)

Instructions

Technical Specifications

Drinking water certificate
YES
Vessel volume [l]
8, 12, 20, 24, 35, 60, 80, 110
Maximum liquid temperature [°C]
90
Maximum pressure [bar]
10 - 10
Construction
membrane
