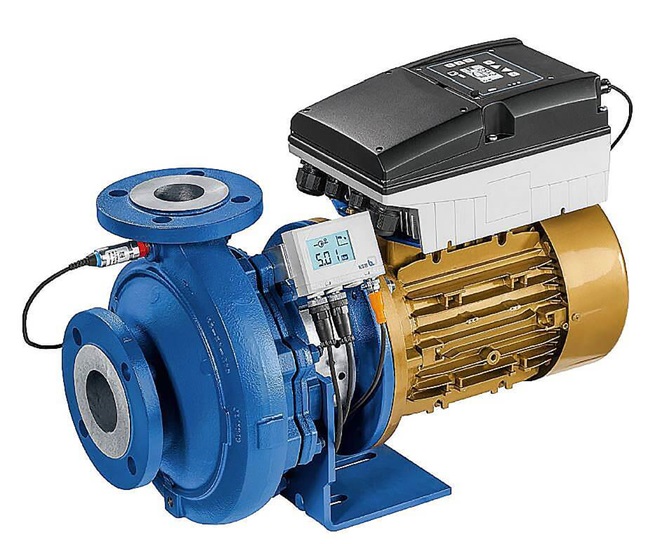

KSB Etabloc PumpDrive 2 close-coupled single-stage volute casing pump with frequency converter

Single-stage close-coupled volute casing pump, with ratings to EN 733, with replaceable shaft sleeve and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available. See more

on demand check availability

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us by email marketing@pumpa.cz

Not sellable online

Delivery accross EU within 3-7 business days %

Brand:
KSB
Category:
Horizontal surface pumps
Product No.:
MAS000634

Product description

Benefits

  • Improved efficiency and NPSHreq by experimentally verified hydraulic design of impellers (vanes)
  • Operating costs reduced by trimming the nominal impeller diameter to match the specified duty point
  • Little wear, low vibration levels and excellent smooth running characteristics thanks to good suction performance and virtually cavitation-free operation across a wide operating range
  • Casing sealed reliably – even in varying operating conditions – by confined casing gasket
  • Optimum match of pump to fluid handled by a large choice of materials for many applications as standard
  • Extended selection chart with additional pump sizes for small flow rates
  • Easy to dismantle using forcing screws at the interface of casing cover and drive lantern

Instructions
