Leo LDW-6-55-1100E 4" submersible automatic 230V 1,1kW, cable 22m

Powerful multi-stage 4" LEO LDW submersible pump for pumping clean water without abrasive particles from wells and reservoirs, for irrigation systems in the garden, for supplying water to smaller objects. We are the exclusive distributor of LEO pumps for the Czech Republic. See more

Technical Specifications

Maximum flow [l/min]
100
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
1,10

Show all Tech Specs

in stock >100 pcs

286.53 € VAT included

Delivery accross EU within 3-7 business days %

Brand:
LEO
Category:
Submersible pumps
Product No.:
ZB00055418
Sale group:
CELEO
EAN:
8596455001577
Manuf. No.:
LDW-6-55-1100E

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Power input - P1 [kW]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Leo LDW-6-55-1100E 4" submersible automatic 230V 1,1kW, cable 22m

Product No.: ZB00055418 Sale group: CELEO EAN: 8596455001577 Manuf. No.: LDW-6-55-1100E

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

286.53 €

Maximum flow [l/min]
100
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
1,10
Power input - P1 [kW]
1,10
Delivery port ["]
1
Pump diameter ["]
4
Maximum immersion depth [m]
19
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
5,40
Maximum liquid temperature [°C]
35
Cable length [m]
22
Maximum particle size [mm]
1
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
fully intergrated, compact pressure booster
You are viewing this variant

Leo LDW-6-55-1100EL 4" submersible garden automatic pump 230V 1,1kW, cable 22m, side suction 5/4"

Product No.: ZB00068344 Sale group: CELEO EAN: 8596455038573 Manuf. No.: LDW-6-55-1100E -SIDE

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

298.14 €

Maximum flow [l/min]
100
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
1,10
Suction port ["]
5/4
Power input - P1 [kW]
1,10
Delivery port ["]
1
Pump diameter ["]
4
Maximum immersion depth [m]
19
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
5,40
Maximum liquid temperature [°C]
35
Cable length [m]
22
Maximum particle size [mm]
1
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
fully intergrated, compact pressure booster

Product description

USING the LDW pump

  • for pumping clean water without abrasive particles
  • pumping water from wells and reservoirs
  • suitable for smaller irrigation systems

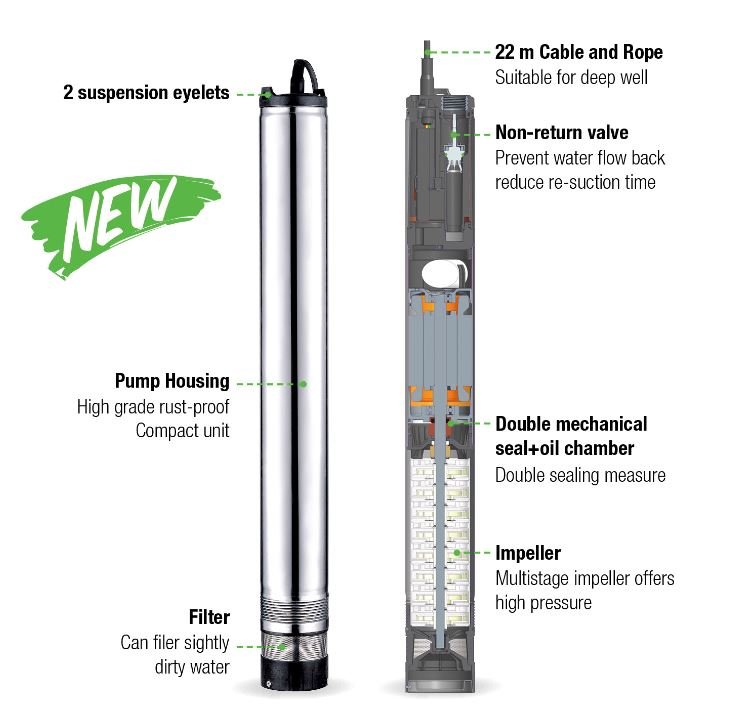

ADVANTAGES of the LDW pump

  • Built-in intelligent control device for automatic operation - on / off
  • Integrated protection against dry running and non-return valve
  • Long service life thanks to high-quality mechanical seal and stainless steel pump body
  • High working pressure thanks to the multi-stage impeller

We offer variants with bottom suction and side suction.

Instructions

Technical Specifications

Maximum flow [l/min]
100
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
1,10
Power input - P1 [kW]
1,10
Delivery port ["]
1
Pump diameter ["]
4
Maximum immersion depth [m]
19
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
5,40
Maximum liquid temperature [°C]
35
Cable length [m]
22
Maximum particle size [mm]
1
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
98
Impeller material
noryl
Construction
fully intergrated, compact pressure booster
