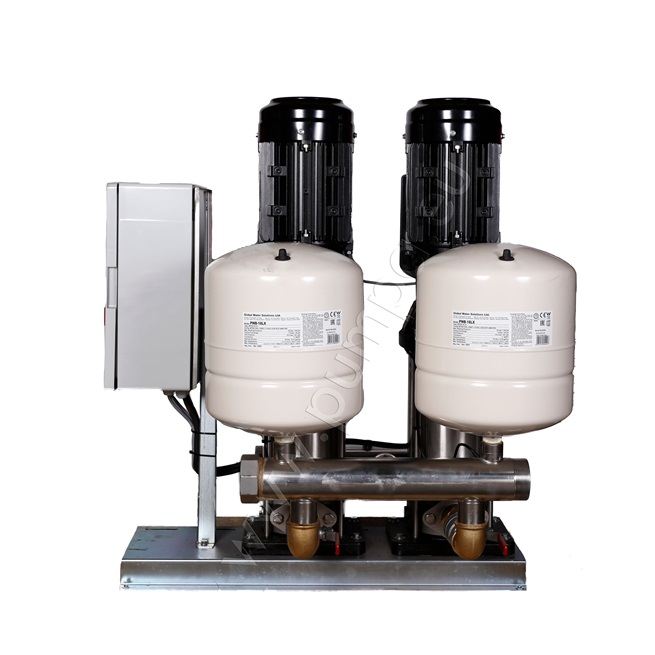

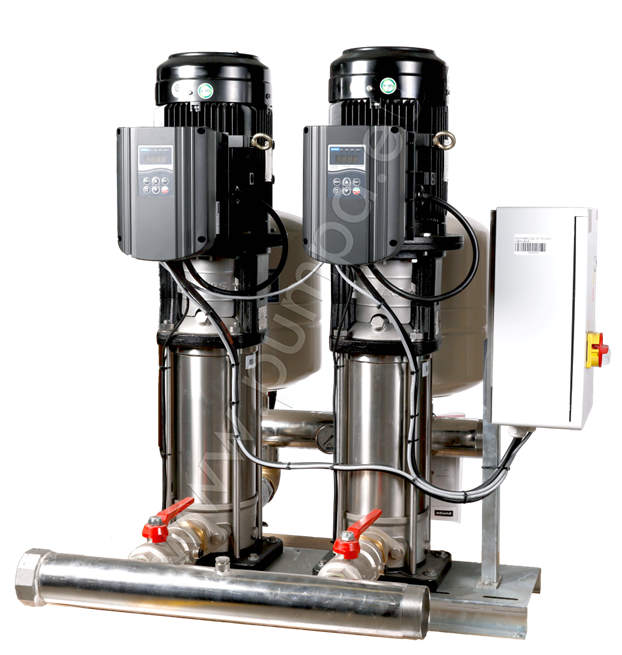

PUMPA ATS line 2 SBI(P) booster set with vertical pumps with frequency converter PUMPA DRIVE

Drinking water certificate Czech product

previous next

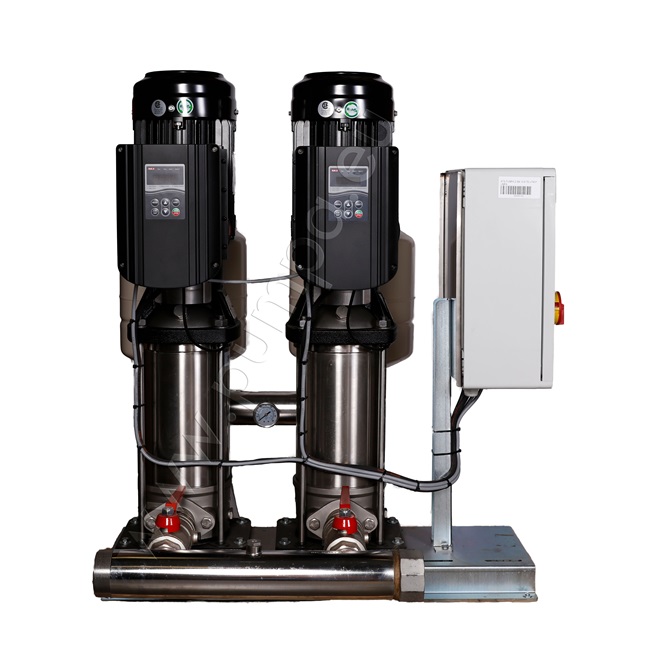

PUMPA ATS line 2 SBI(P) booster set with vertical pumps with frequency converter PUMPA DRIVE

Automatic pressure stations of the brand Pumpa are designed for pumping and increasing the pressure of clean water. See more

Technical Specifications

Maximum flow [l/min]
280 - 950
Maximum head [m]
39 - 142
Input voltage [V]
3x400
Power output - P2 [kW]
1.10 - 7.50

Show all Tech Specs

available in 5 working days >10 pcs

from 5,971.17 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Pressure booster sets - vertical
Product No.:
MAS001216

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Vessel volume [l]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

ATS PUMPA 2 SBIP 5-8 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00064969 Sale group: ATSP EAN: 8596455035893

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,971.17 €

Not sellable online

Maximum flow [l/min]
280
Maximum head [m]
51
Input voltage [V]
3x400
Power output - P2 [kW]
1,10
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x12
Maximum current [A]
2,90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 2 SBIP 5-10 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00064970 Sale group: ATSP EAN: 8596455035909

available in 5 working days
5 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 5 pcs

6,321.68 €

Not sellable online

Maximum flow [l/min]
280
Maximum head [m]
65
Input voltage [V]
3x400
Power output - P2 [kW]
1,50
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x12
Maximum current [A]
3,70
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

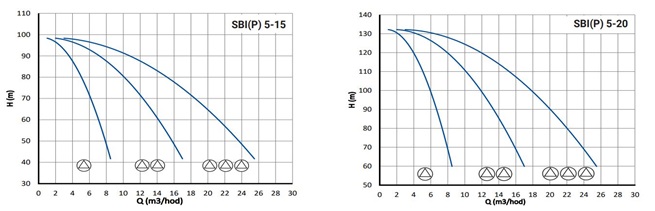

ATS PUMPA 2 SBIP 5-15 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00064971 Sale group: ATSP EAN: 8596455035916

available in 5 working days
3 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 3 pcs

6,645.85 €

Not sellable online

Maximum flow [l/min]
280
Maximum head [m]
100
Input voltage [V]
3x400
Power output - P2 [kW]
2,20
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x12
Maximum current [A]
5,30
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 2 SBIP 5-20 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00064972 Sale group: ATSP EAN: 8596455035923

on demand
check availability
Product availability
  • central warehouse 0 pcs

7,726.86 €

Not sellable online

Maximum flow [l/min]
280
Maximum head [m]
135
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x18
Maximum current [A]
7
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

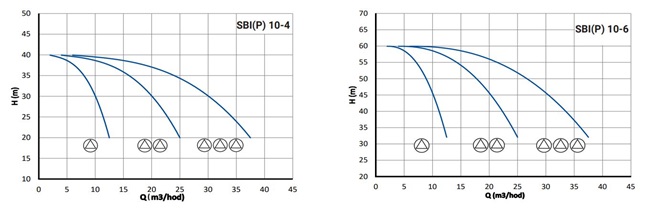

Automatic pressure station ATS PUMPA 2 SBIP 10-4 TE 400V, version with PUMPA DRIVE frequency converters

Product No.: ZB00069540 Sale group: ATSP

available in 5 working days
2 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 2 pcs

7,312.45 €

Not sellable online

Maximum flow [l/min]
433,20
Maximum head [m]
39
Input voltage [V]
3x400
Power output - P2 [kW]
1,50
Suction port ["]
2 1/2
Delivery port ["]
2 1/2
Maximum suction lift [m]
8
Vessel volume [l]
2x18
Maximum current [A]
3,70
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 2 SBIP 10-6 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00064959 Sale group: ATSP EAN: 8596455035794

available in 5 working days
1 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 1 pcs

7,915.80 €

Not sellable online

Maximum flow [l/min]
433,20
Maximum head [m]
59
Input voltage [V]
3x400
Power output - P2 [kW]
2,20
Suction port ["]
2 1/2
Delivery port ["]
2 1/2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x18
Maximum current [A]
4,90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

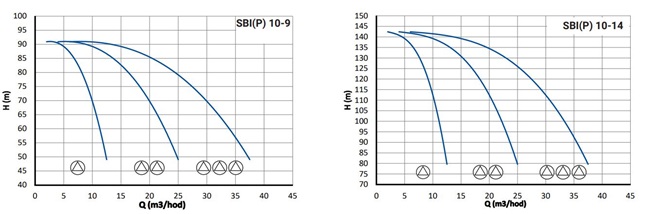

ATS PUMPA 2 SBIP 10-9 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00064960 Sale group: ATSP EAN: 8596455035800

available in 5 working days
2 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 2 pcs

8,596.08 €

Not sellable online

Maximum flow [l/min]
433,20
Maximum head [m]
90
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
2 1/2
Delivery port ["]
2 1/2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x18
Maximum current [A]
7
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

PUMPA ATS line 2 SBI(P) booster set with vertical pumps ATS PUMPA 2 SBIP 10-12 TE 400V with frequency converter PUMPA DRIVE

Product No.: ZB00073231 Sale group: ATSP EAN: 8596455042624

on demand
check availability
Product availability
  • central warehouse 0 pcs

8,883.42 €

Not sellable online

Maximum flow [l/min]
433,20
Maximum head [m]
120
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
6/4
Delivery port ["]
6/4
Maximum suction lift [m]
7,50
Drinking water certificate
YES
Vessel volume [l]
2x18
Maximum current [A]
8,80
Maximum liquid temperature [°C]
60
Protection [IP]
55
Automatic thermal protection
YES
Dry run protection
YES
Off switch
YES
Speed ​​control
YES
Capacitor
NO
Pump design
vertical
Impeller material
stainless steel
Construction
multi-stage

ATS PUMPA 2 SBIP 10-14 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00064961 Sale group: ATSP EAN: 8596455035817

on demand
check availability
Product availability
  • central warehouse 0 pcs

10,562.85 €

Not sellable online

Maximum flow [l/min]
433,20
Maximum head [m]
142
Input voltage [V]
3x400
Power output - P2 [kW]
5,50
Suction port ["]
2 1/2
Delivery port ["]
2 1/2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x18
Maximum current [A]
11,30
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

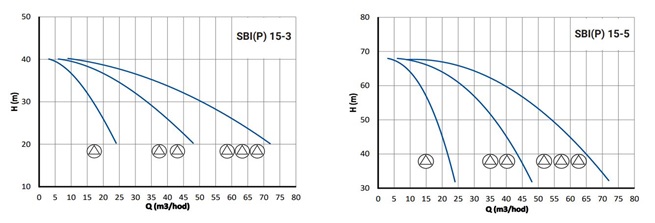

ATS PUMPA 2 SBIP 15-3 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00064962 Sale group: ATSP EAN: 8596455035824

available in 5 working days
1 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 1 pcs

8,402.77 €

Not sellable online

Maximum flow [l/min]
780
Maximum head [m]
40
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
3
Delivery port ["]
3
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x24
Maximum current [A]
7
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 2 SBIP 15-5 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00064963 Sale group: ATSP EAN: 8596455035831

available in 5 working days
1 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 1 pcs

9,294.63 €

Not sellable online

Maximum flow [l/min]
780
Maximum head [m]
68
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
3
Delivery port ["]
3
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x24
Maximum current [A]
8,80
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

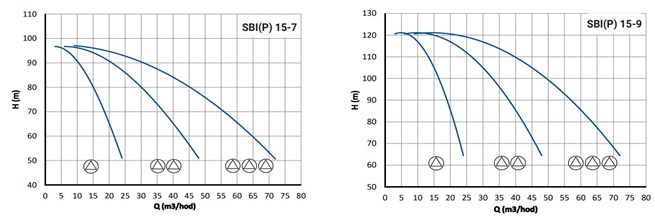

ATS PUMPA 2 SBIP 15-7 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00052383 Sale group: ATSP EAN: 8596455034322

available in 5 working days
1 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 1 pcs

10,123.89 €

Not sellable online

Maximum flow [l/min]
780
Maximum head [m]
97
Input voltage [V]
3x400
Power output - P2 [kW]
5,50
Suction port ["]
3
Delivery port ["]
3
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x24
Maximum current [A]
10,90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 2 SBI 15-9 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00064965 Sale group: ATSP EAN: 8596455035855

on demand
check availability
Product availability
  • central warehouse 0 pcs

10,700.26 €

Not sellable online

Maximum flow [l/min]
780
Maximum head [m]
124
Input voltage [V]
3x400
Power output - P2 [kW]
7,50
Suction port ["]
3
Delivery port ["]
3
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x24
Maximum current [A]
14,90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 2 SBIP 20-5 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00064966 Sale group: ATSP EAN: 8596455035862

on demand
check availability
Product availability
  • central warehouse 0 pcs

10,462.63 €

Not sellable online

Maximum flow [l/min]
950
Maximum head [m]
70
Input voltage [V]
3x400
Power output - P2 [kW]
5,50
Suction port ["]
3
Delivery port ["]
3
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x24
Maximum current [A]
10,90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 2 SBIP 20-7 TE 400V booster set with frequency converters PUMPA DRIVE

Product No.: ZB00064967 Sale group: ATSP EAN: 8596455035879

on demand
check availability
Product availability
  • central warehouse 0 pcs

10,910.84 €

Not sellable online

Maximum flow [l/min]
950
Maximum head [m]
100
Input voltage [V]
3x400
Power output - P2 [kW]
7,50
Suction port ["]
3
Delivery port ["]
3
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
2x24
Maximum current [A]
14,90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

Product description

Use

  • waterworks
  • housing estate type residential buildings
  • hotels
  • industrial plants
  • hospitals, schools, etc.

Advantages

  • long service life of the pumping system
  • energy saving
  • high reliability
  • wide area of application
  • The ATS is equipped with one output relay that can be used for fault monitoring for each pump
  • the operating state of the automatic pressure station is displayed on the display of the frequency converter using code states
  • On the display of frequency converters, it is possible to display the set pressure, frequency, current and current pressure

Technical Specifications

Maximum flow [l/min]
280 - 950
Maximum head [m]
39 - 142
Input voltage [V]
3x400
Power output - P2 [kW]
1.10 - 7.50
Suction port ["]
2, 2 1/2, 6/4, 3
Delivery port ["]
2, 2 1/2, 6/4, 3
Maximum suction lift [m]
7.50 - 8
Drinking water certificate
YES
Vessel volume [l]
2x12, 2x18, 2x24
Maximum current [A]
2.90 - 14.90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Automatic thermal protection
YES
Dry run protection
NO, YES
Off switch
YES
Speed ​​control
YES
Capacitor
NO
Pump design
vertical
Impeller material
stainless steel
Construction
multi-stage
