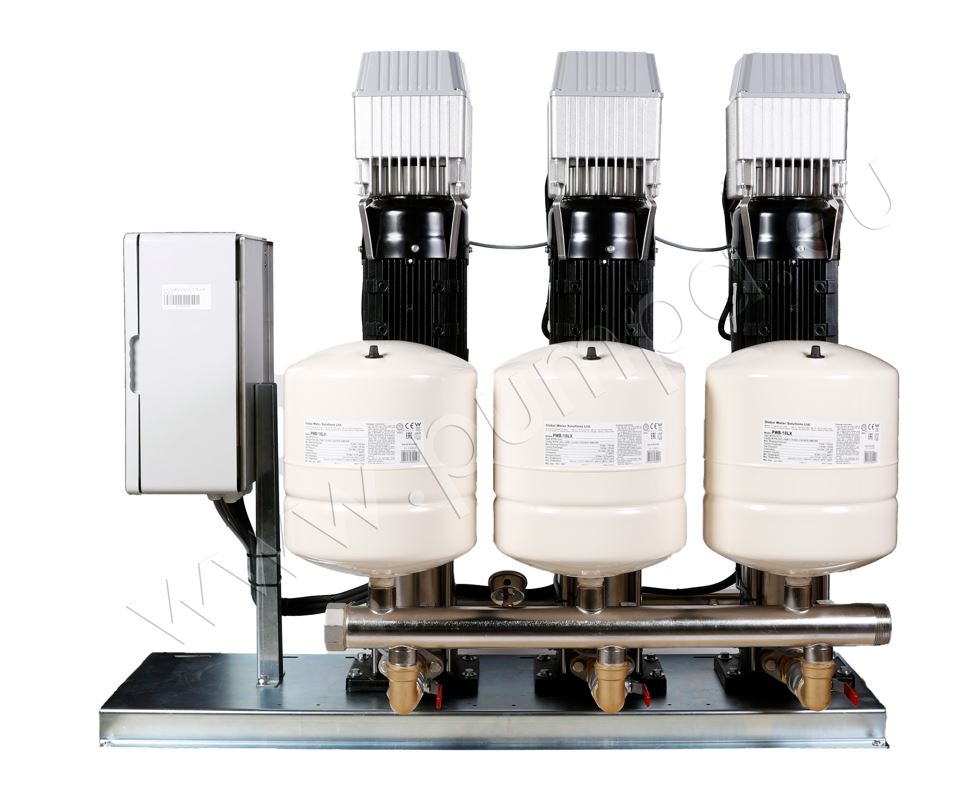

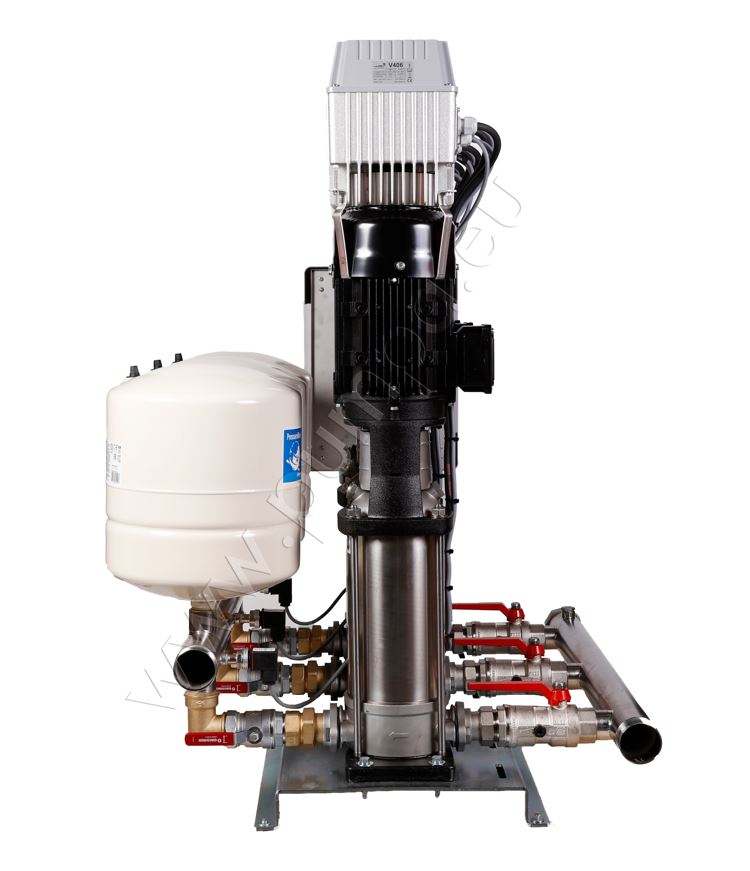

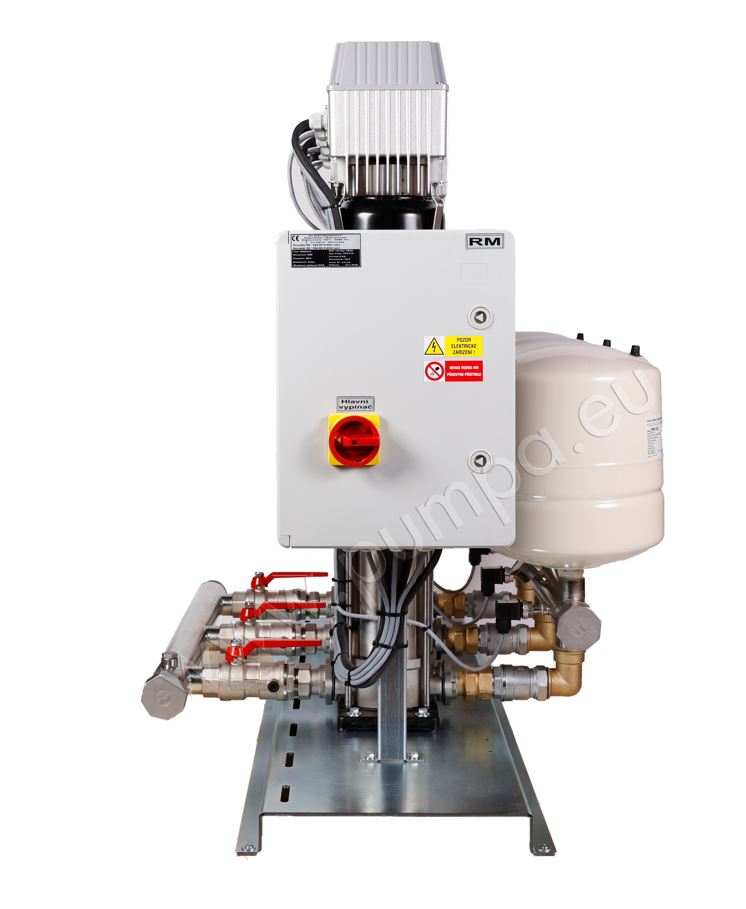

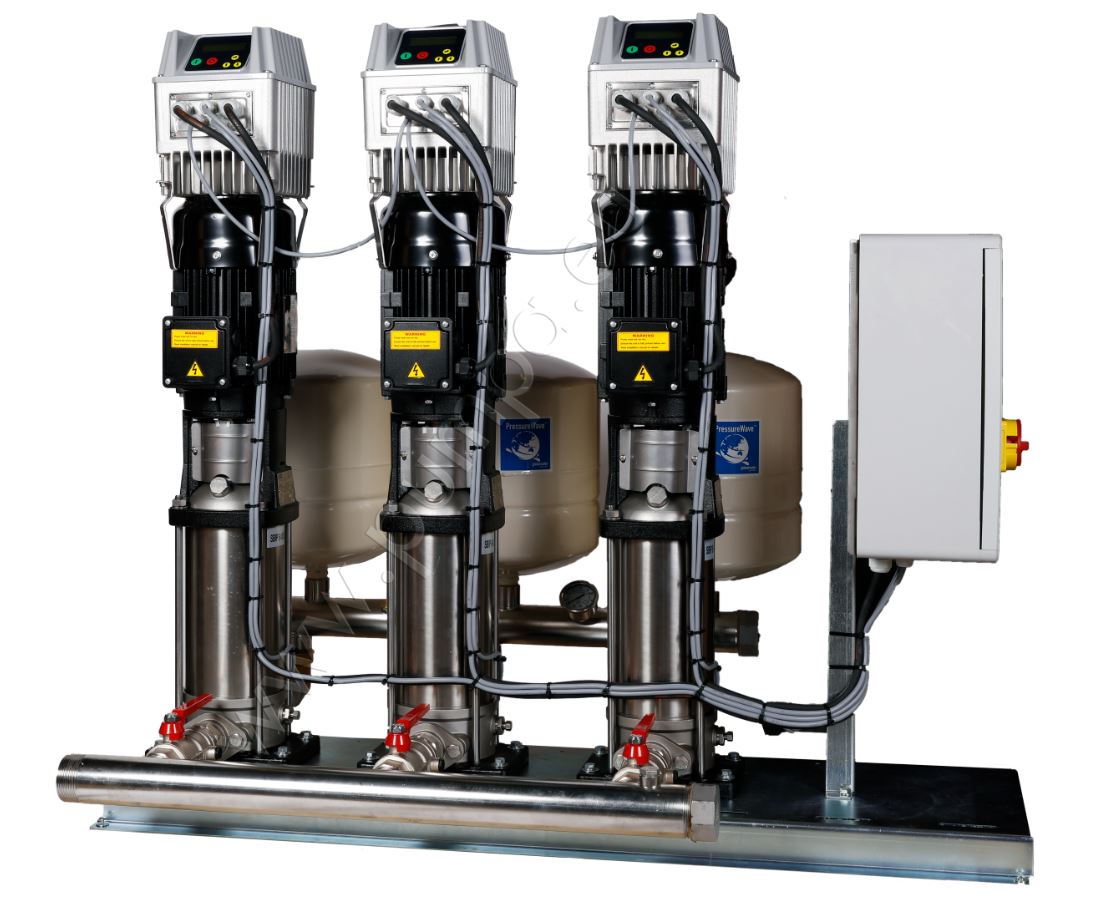

PUMPA ATS line 3 SBI(P) booster set with vertical pumps with frequency converter VASCO

ATS line SBI is an automatic pressure station with vertical pumps with a frequency converter. Automatic pressure stations PUMPA are designed for pumping and increasing the pressure of clean water. They are mainly used in the following applications: waterworks, housing estates, hotels, industrial plants, hospitals, schools, etc. See more

Technical Specifications

Maximum flow [l/min]
420 - 1,425
Maximum head [m]
39 - 142
Input voltage [V]
3x400
Power output - P2 [kW]
1.10 - 7.50

Show all Tech Specs

available in 5 working days 4 pcs

from 12,433.72 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Pressure booster sets with frequency converter - vertical
Product No.:
MAS001345

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Vessel volume [l]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

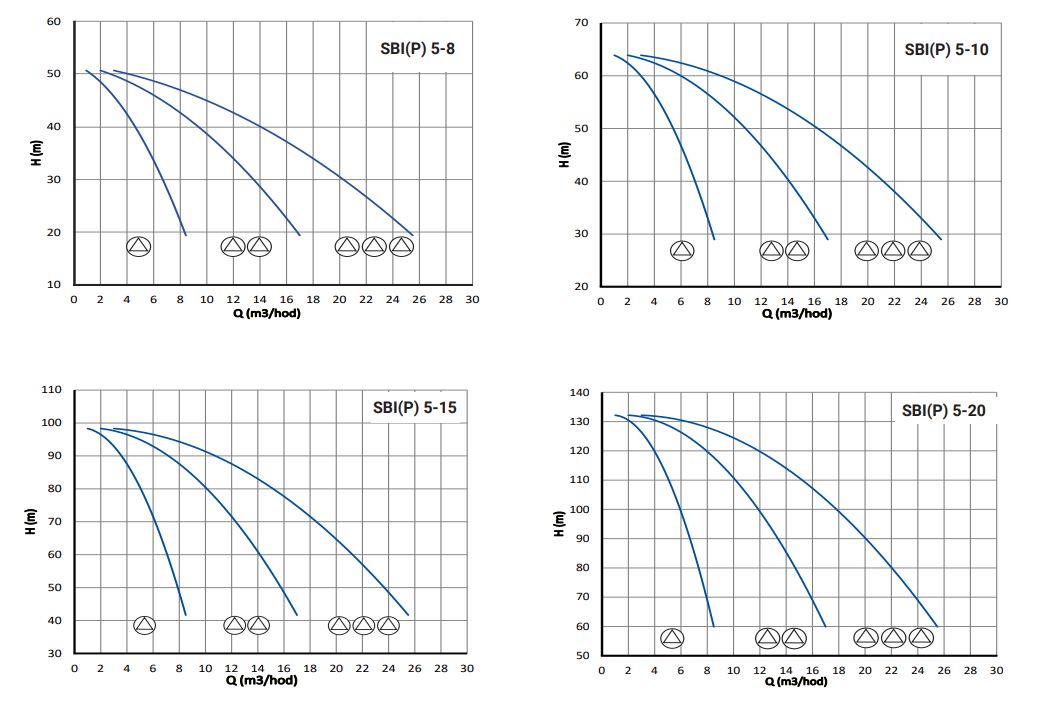

ATS PUMPA 3 SBIP 5-8 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050649 Sale group: ATSP EAN: 8596455024873

on demand
check availability
Product availability
  • central warehouse 0 pcs

12,433.72 €

Not sellable online

Maximum flow [l/min]
420
Maximum head [m]
51
Input voltage [V]
3x400
Power output - P2 [kW]
1.10
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x12
Maximum current [A]
2.90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 3 SBIP 5-10 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050650 Sale group: ATSP EAN: 8596455024866

on demand
check availability
Product availability
  • central warehouse 0 pcs

12,645.92 €

Not sellable online

Maximum flow [l/min]
420
Maximum head [m]
65
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x12
Maximum current [A]
3.70
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 3 SBIP 5-15 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050651 Sale group: ATSP EAN: 8596455024859

on demand
check availability
Product availability
  • central warehouse 0 pcs

13,348.64 €

Not sellable online

Maximum flow [l/min]
420
Maximum head [m]
100
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x12
Maximum current [A]
5.30
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 3 SBIP 5-20 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050652 Sale group: ATSP EAN: 8596455024842

on demand
check availability
Product availability
  • central warehouse 0 pcs

16,386.29 €

Not sellable online

Maximum flow [l/min]
420
Maximum head [m]
135
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x18
Maximum current [A]
7
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

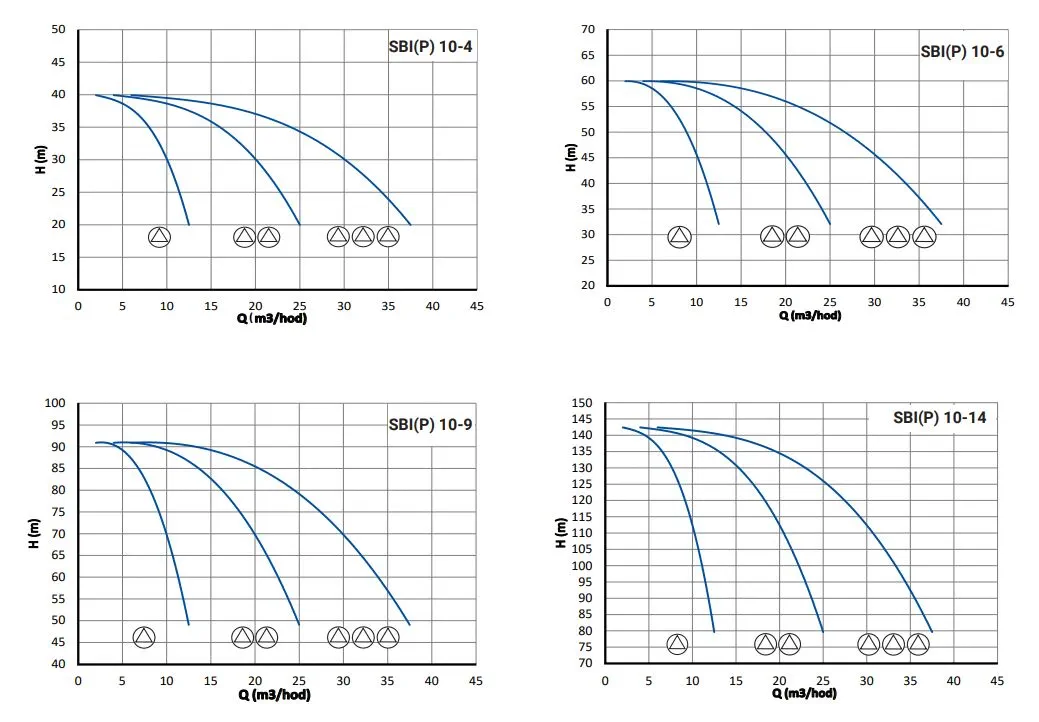

ATS PUMPA 3 SBIP 10-4 TE 400V booster set with frequency converters VASCO

Product No.: ZB00072028 Sale group: ATSP EAN: 8596455041320

on demand
check availability
Product availability
  • central warehouse 0 pcs

15,290.99 €

Not sellable online

Maximum flow [l/min]
649.80
Maximum head [m]
39
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Suction port ["]
2 1/2
Delivery port ["]
2 1/2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x18
Maximum current [A]
3.70
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 3 SBIP 10-6 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050654 Sale group: ATSP EAN: 8596455024828

on demand
check availability
Product availability
  • central warehouse 0 pcs

14,314.42 €

Not sellable online

Maximum flow [l/min]
649.80
Maximum head [m]
59
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Suction port ["]
2 1/2
Delivery port ["]
2 1/2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x18
Maximum current [A]
4.90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 3 SBIP 10-9 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050655 Sale group: ATSP EAN: 8596455024811

available in 5 working days
1 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 1 pcs

17,376.43 €

Not sellable online

Maximum flow [l/min]
649.80
Maximum head [m]
90
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
2 1/2
Delivery port ["]
2 1/2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x18
Maximum current [A]
7
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

PUMPA ATS line 3 SBIP 10-12 TE 400V booster set with vertical pumps with frequency converter VASCO

Product No.: ZB00073234 Sale group: ATSP EAN: 8596455042655

on demand
check availability
Product availability
  • central warehouse 0 pcs

19,197.38 €

Not sellable online

Maximum flow [l/min]
649.80
Maximum head [m]
120
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
6/4
Delivery port ["]
6/4
Maximum suction lift [m]
7.50
Drinking water certificate
YES
Vessel volume [l]
3x18
Maximum current [A]
8.80
Maximum liquid temperature [°C]
60
Protection [IP]
55
Automatic thermal protection
YES
Dry run protection
YES
Off switch
YES
Speed ​​control
YES
Capacitor
NO
Pump design
vertical
Impeller material
stainless steel
Construction
multi-stage

ATS PUMPA 3 SBIP 10-14 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050656 Sale group: ATSP EAN: 8596455024804

on demand
check availability
Product availability
  • central warehouse 0 pcs

20,310.79 €

Not sellable online

Maximum flow [l/min]
649.80
Maximum head [m]
142
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Suction port ["]
2 1/2
Delivery port ["]
2 1/2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x18
Maximum current [A]
11.30
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

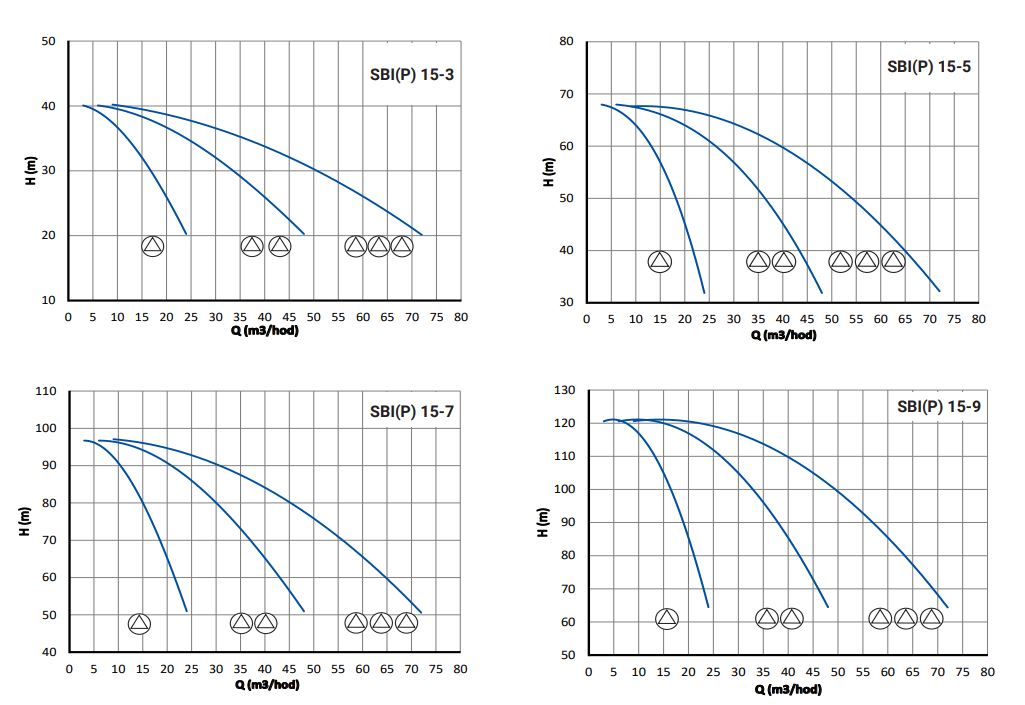

ATS PUMPA 3 SBIP 15-3 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050657 Sale group: ATSP EAN: 8596455024798

available in 5 working days
1 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 1 pcs

17,552.87 €

Not sellable online

Maximum flow [l/min]
1,170
Maximum head [m]
40
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
3
Delivery port ["]
3
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x24
Maximum current [A]
7
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 3 SBIP 15-5 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050658 Sale group: ATSP EAN: 8596455024781

available in 5 working days
1 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 1 pcs

18,209.57 €

Not sellable online

Maximum flow [l/min]
1,170
Maximum head [m]
68
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
3
Delivery port ["]
3
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x24
Maximum current [A]
8.80
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 3 SBIP 15-7 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050659 Sale group: ATSP EAN: 8596455024774

available in 5 working days
1 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 1 pcs

20,738.81 €

Not sellable online

Maximum flow [l/min]
1,170
Maximum head [m]
97
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Suction port ["]
3
Delivery port ["]
3
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x24
Maximum current [A]
10.90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 3 SBI 15-9 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050660 Sale group: ATSP EAN: 8596455024767

on demand
check availability
Product availability
  • central warehouse 0 pcs

24,164.67 €

Not sellable online

Maximum flow [l/min]
1,170
Maximum head [m]
124
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Suction port ["]
3
Delivery port ["]
3
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x24
Maximum current [A]
14.90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

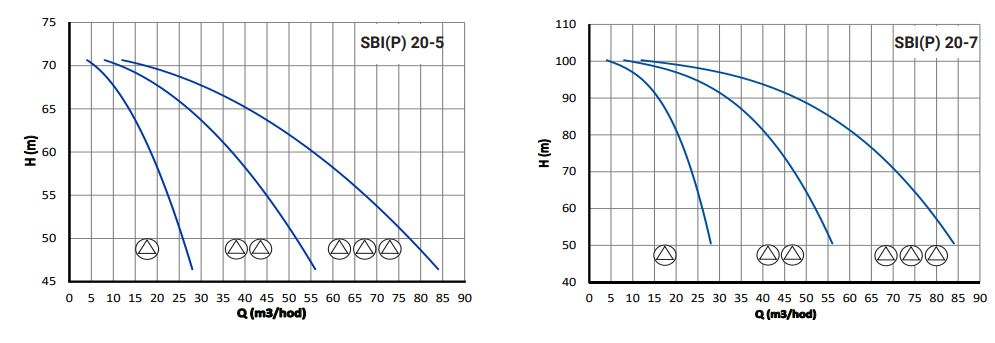

ATS PUMPA 3 SBIP 20-5 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050661 Sale group: ATSP EAN: 8596455024750

on demand
check availability
Product availability
  • central warehouse 0 pcs

23,096.23 €

Not sellable online

Maximum flow [l/min]
1,425
Maximum head [m]
70
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Suction port ["]
3
Delivery port ["]
3
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x24
Maximum current [A]
10.90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

ATS PUMPA 3 SBIP 20-7 TE 400V booster set with frequency converters VASCO

Product No.: ZB00050662 Sale group: ATSP EAN: 8596455024743

on demand
check availability
Product availability
  • central warehouse 0 pcs

24,007.95 €

Not sellable online

Maximum flow [l/min]
1,425
Maximum head [m]
100
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Suction port ["]
3
Delivery port ["]
3
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
3x24
Maximum current [A]
14.90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

Product description

Use

  • waterworks
  • residential buildings of the housing estate type
  • hotels
  • industrial plants
  • hospitals, schools, etc.

Advantages

  • long service life of the pumping system
  • energy saving
  • high reliability
  • wide area of application
  • monitoring input current and supply voltage
  • recording of moto hours and archiving of errors

Composition of the ATS report

  • 3 vertical stainless steel centrifugal pumps connected in parallel mounted on a common base frame
  • AISI 304 stainless steel hydraulic pump casing
  • AISI 304 stainless steel pump impeller
  • SiC/carbon/EPDM pump mechanical seal
  • control unit with frequency converter located on the electric motor as part of each pump
  • output for displaying instantaneous frequency or pressure 0-10V or 4-20mA
  • pressure vessel with membrane / rubber bag
  • stainless steel suction and discharge pipes
  • all-stainless steel manometer filled with glycerin
  • main switchboard – protection IP 65
  • shut-off valve with check valve on the suction side
  • shut-off valve on the discharge side
  • For sizes ATS PUMP SBI 5, 10, 15, 20, the corresponding number of pressure vessels is part of the delivery. In the mentioned variants, the pressure vessels are installed directly on the ATS discharge pipe.

We will prepare all the stations for you within 10 days.

Technical Specifications

Maximum flow [l/min]
420 - 1,425
Maximum head [m]
39 - 142
Input voltage [V]
3x400
Power output - P2 [kW]
1.10 - 7.50
Suction port ["]
2, 2 1/2, 6/4, 3
Delivery port ["]
2, 2 1/2, 6/4, 3
Maximum suction lift [m]
7.50 - 8
Drinking water certificate
YES
Vessel volume [l]
3x12, 3x18, 3x24
Maximum current [A]
2.90 - 14.90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Automatic thermal protection
YES
Dry run protection
NO, YES
Off switch
YES
Speed ​​control
YES
Capacitor
NO
Pump design
vertical
Impeller material
stainless steel
Construction
multi-stage
