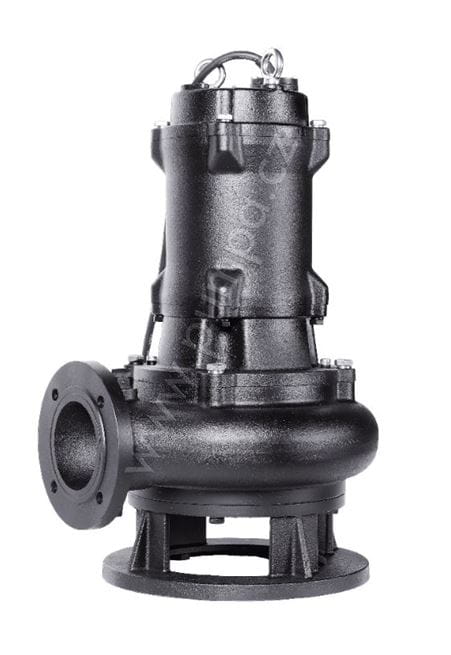

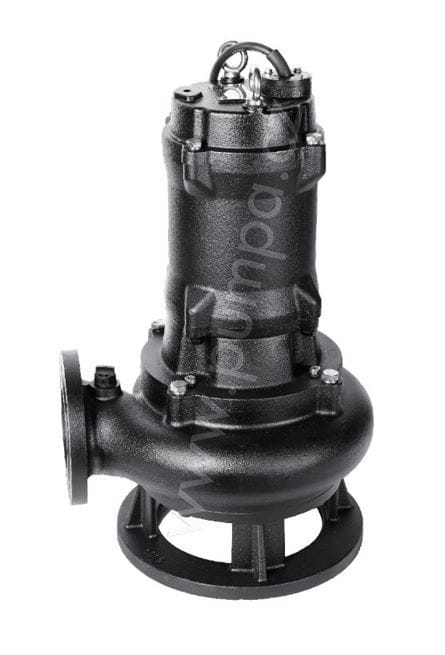

PUMPA black line 100BLK43.7 400V 3,7kW, sewage pump, channel impeller, max. particle size 50mm, cable 15m

Sewage pump with circulating channel wheel. Suitable for pumping wastewater containing coarse impurities. See more

Technical Specifications

Maximum flow [l/min]
2,167
Maximum head [m]
17
Input voltage [V]
3x400
Power output - P2 [kW]
3.70

Show all Tech Specs

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us by email [email protected]

1,326.14 VAT included

Not sellable online

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Wastewater pumps
Product No.:
ZB00065217
Sale group:
CEBKP
EAN:
8596455036319

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Maximum immersion depth [m]
  • Float switch
  • Maximum current [A]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Maximum flow [l/min]
1,217
Maximum head [m]
12
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Delivery port ["]
DN80
Maximum immersion depth [m]
20
Float switch
NO
Maximum current [A]
5
Cable length [m]
15
Maximum particle size [mm]
50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
NO
Maximum flow [l/min]
1,500
Maximum head [m]
17
Input voltage [V]
3x400
Power output - P2 [kW]
3.70
Delivery port ["]
DN80
Maximum immersion depth [m]
20
Float switch
NO
Maximum current [A]
8.50
Cable length [m]
15
Maximum particle size [mm]
50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
NO
Maximum flow [l/min]
1,667
Maximum head [m]
12
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Delivery port ["]
DN100
Maximum immersion depth [m]
20
Float switch
NO
Maximum current [A]
5
Cable length [m]
8
Maximum particle size [mm]
50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
NO
Maximum flow [l/min]
2,167
Maximum head [m]
17
Input voltage [V]
3x400
Power output - P2 [kW]
3.70
Delivery port ["]
DN100
Maximum immersion depth [m]
20
Float switch
NO
Maximum current [A]
8.50
Cable length [m]
8
Maximum particle size [mm]
50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
NO
Maximum flow [l/min]
2,167
Maximum head [m]
17
Input voltage [V]
3x400
Power output - P2 [kW]
3.70
Delivery port ["]
DN100
Maximum immersion depth [m]
20
Float switch
NO
Maximum current [A]
8.50
Cable length [m]
15
Maximum particle size [mm]
50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
NO
You are viewing this variant
Maximum flow [l/min]
2,500
Maximum head [m]
19
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Delivery port ["]
DN100
Maximum immersion depth [m]
20
Float switch
NO
Maximum current [A]
11.70
Cable length [m]
15
Maximum particle size [mm]
50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
NO
Maximum flow [l/min]
2,833
Maximum head [m]
24
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Delivery port ["]
DN100
Maximum immersion depth [m]
20
Float switch
NO
Maximum current [A]
15.70
Cable length [m]
15
Maximum particle size [mm]
50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
NO
Maximum flow [l/min]
3,333
Maximum head [m]
16
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Delivery port ["]
DN150
Maximum immersion depth [m]
20
Float switch
NO
Maximum current [A]
11.70
Cable length [m]
15
Maximum particle size [mm]
55
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
NO

Product description

Description

Slurry pump with circulating channel wheel. Suitable for pumping wastewater containing coarse impurities.

Use

  • wastewater pumping
  • drainage water pumping
  • rainwater pumping
  • industrial applications
  • gas stations, sewage treatment plants

Technical Specifications

Maximum flow [l/min]
2,167
Maximum head [m]
17
Input voltage [V]
3x400
Power output - P2 [kW]
3.70
Delivery port ["]
DN100
Maximum immersion depth [m]
20
Float switch
NO
Maximum current [A]
8.50
Cable length [m]
15
Maximum particle size [mm]
50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Impeller material
cast iron
Construction
submersible
Grinder
NO
