PUMPA blue line PFC-505 pool pump

Pool pump with prefilter. Suitable for private pools. See more

Technical Specifications

Maximum flow [l/min]
175
Maximum head [m]
10
Input voltage [V]
230
Power output - P2 [kW]
0.32

Show all Tech Specs

on demand check availability

125.28 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Swimming pool pumps
Product No.:
MAS000032

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Power input - P1 [kW]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA blue line PFC-505 230V pool pump

Product No.: ZB00046840 Sale group: CEBL EAN: 8596455001379

on demand
check availability
Product availability
  • central warehouse 0 pcs

125.28 €

Check availability

Maximum flow [l/min]
175
Maximum head [m]
10
Input voltage [V]
230
Power output - P2 [kW]
0.32
Suction port ["]
6/4
Power input - P1 [kW]
0.50
Delivery port ["]
6/4
Maximum suction lift [m]
3
Drinking water certificate
NO
Maximum current [A]
2.30
Maximum liquid temperature [°C]
35
Cable length [m]
1.60
Protection [IP]
X5
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl

Product description

Use of the pump PUMPA blue line PFC-505

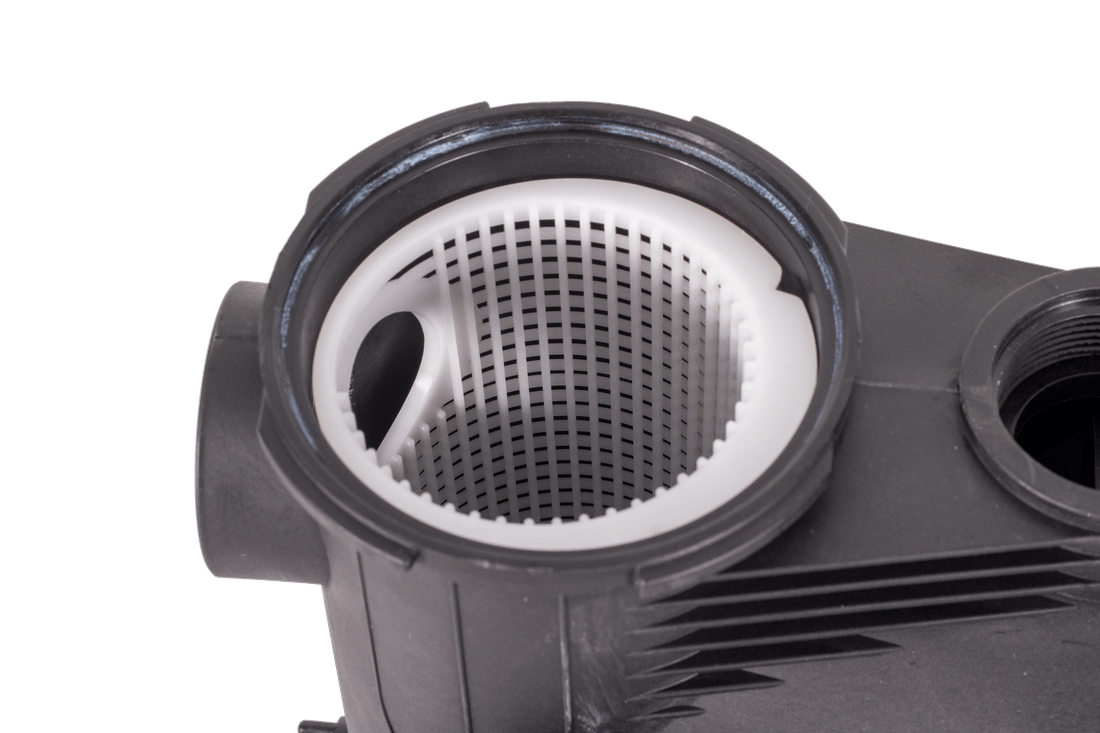

  • Self-priming pool pump with integrated plastic pre-filter
  • Suitable for private pools
  • Plastic impeller
  • Also suitable for saltwater pools

Instructions

Technical Specifications

Maximum flow [l/min]
175
Maximum head [m]
10
Input voltage [V]
230
Power output - P2 [kW]
0.32
Suction port ["]
6/4
Power input - P1 [kW]
0.50
Delivery port ["]
6/4
Maximum suction lift [m]
3
Drinking water certificate
NO
Maximum current [A]
2.30
Maximum liquid temperature [°C]
35
Cable length [m]
1.60
Protection [IP]
X5
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl
