PUMPA blue line PMC1004P.1 multistage submersible pump

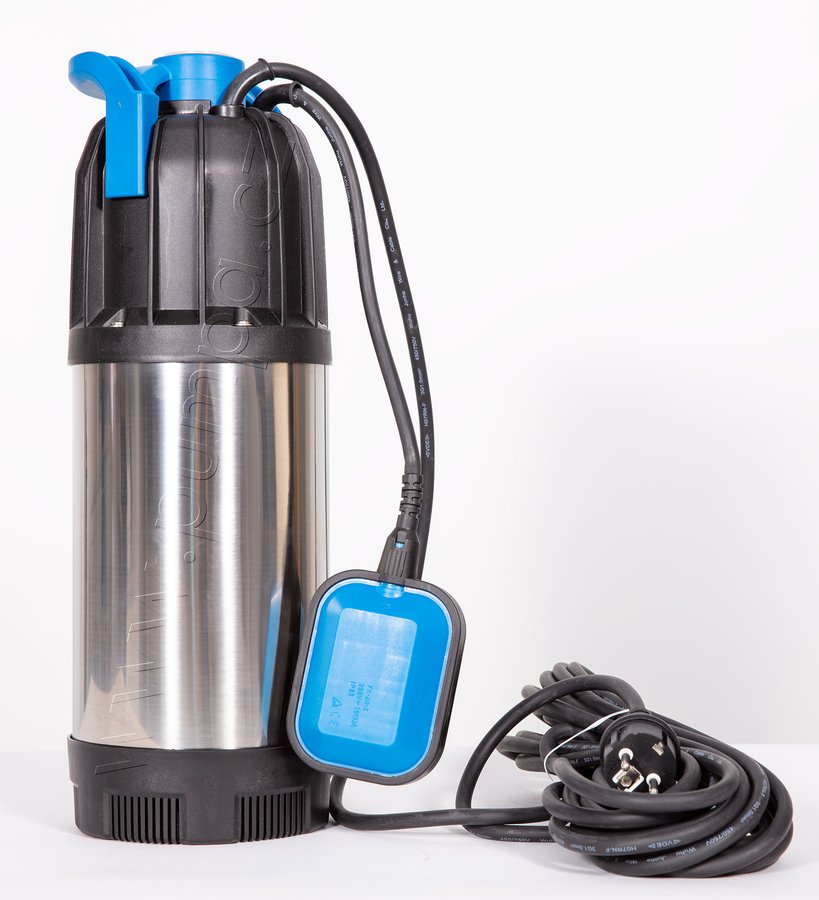

Plastic multistage submersible pump PUMPA blue line PMC1004P.1 with stainless steel jacket and float switch. It is designed for pumping clean or slightly contaminated drainage water from barrels and tanks, for irrigation or pumping storage tanks. Capability to pump water 50 mm from the bottom. For convenient placement we supply with a 10 m cable. The pump provides maximum delivery height up to 40 m. See more

Technical Specifications

Maximum flow [l/min]
108
Maximum head [m]
40
Input voltage [V]
230
Power output - P2 [kW]
0.60

Show all Tech Specs

in stock >100 pcs

135.68 € VAT included

the price includes a recycling fee

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible pumps
Product No.:
ZB00055042
Sale group:
CEBL
EAN:
8596455000419

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Power input - P1 [kW]
  • Delivery port ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA blue line PMC1004P.1 multistage submersible pump

Product No.: ZB00055042 Sale group: CEBL EAN: 8596455000419

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

135.68 €

Maximum flow [l/min]
108
Maximum head [m]
40
Input voltage [V]
230
Power output - P2 [kW]
0.60
Power input - P1 [kW]
1
Delivery port ["]
1
Maximum immersion depth [m]
7
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
5
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
1
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
140
Impeller material
noryl
Construction
centrifugal
You are viewing this variant

Product description

PUMPA blue line PMC1004P.1 Pump Application

  • for pumping clean or slightly contaminated drainage water
  • for irrigation and pumping from tanks and reservoirs
  • for draining pools
  • pumping storage tanks

Instructions

Technical Specifications

Maximum flow [l/min]
108
Maximum head [m]
40
Input voltage [V]
230
Power output - P2 [kW]
0.60
Power input - P1 [kW]
1
Delivery port ["]
1
Maximum immersion depth [m]
7
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
5
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
1
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
140
Impeller material
noryl
Construction
centrifugal
