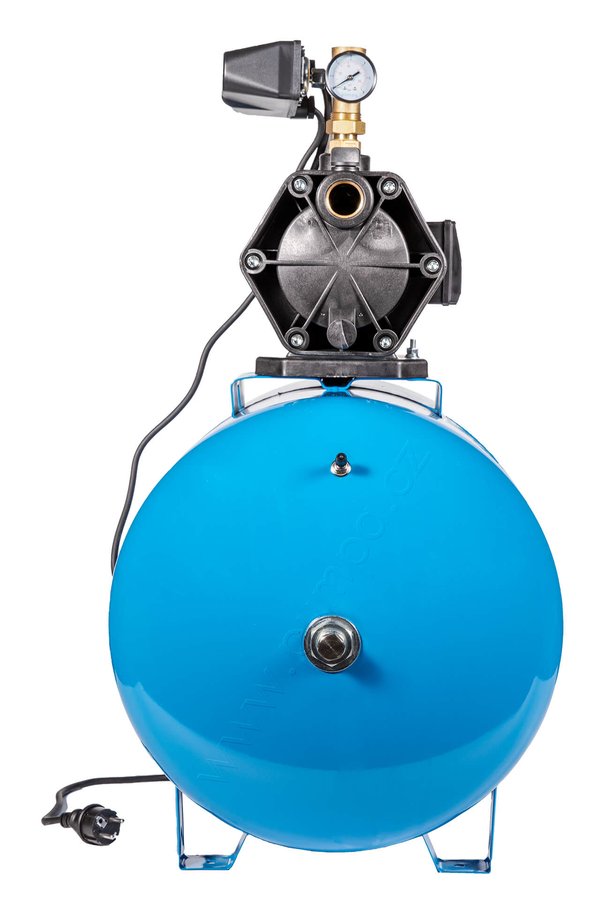

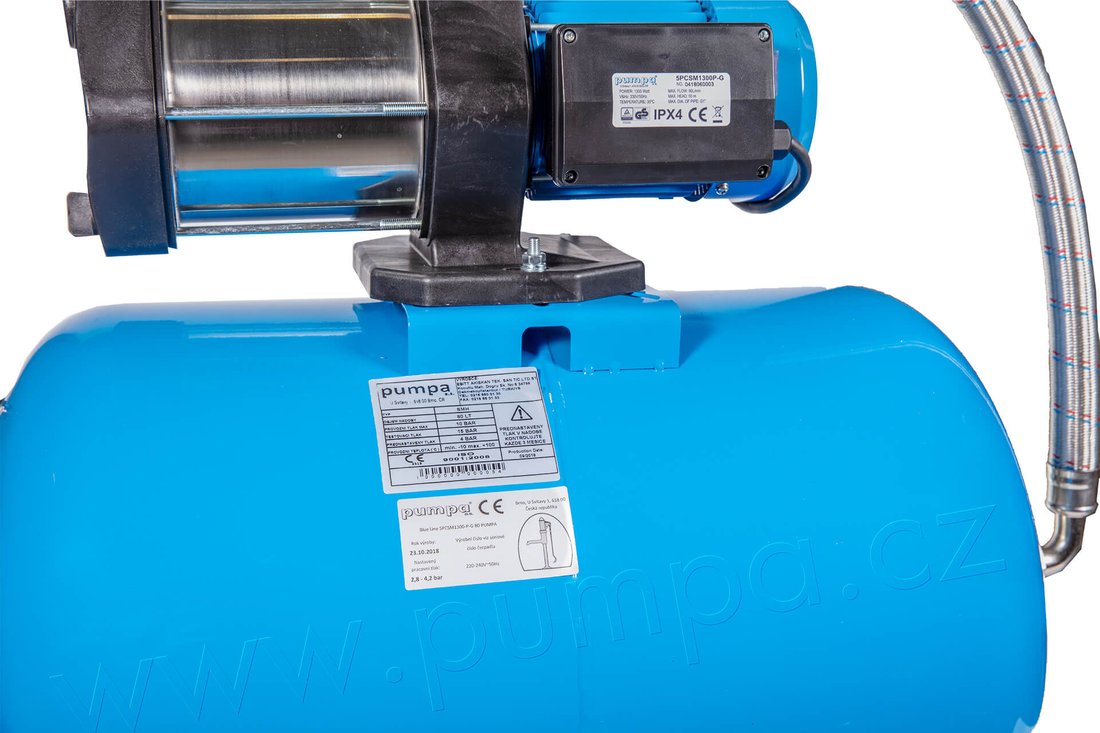

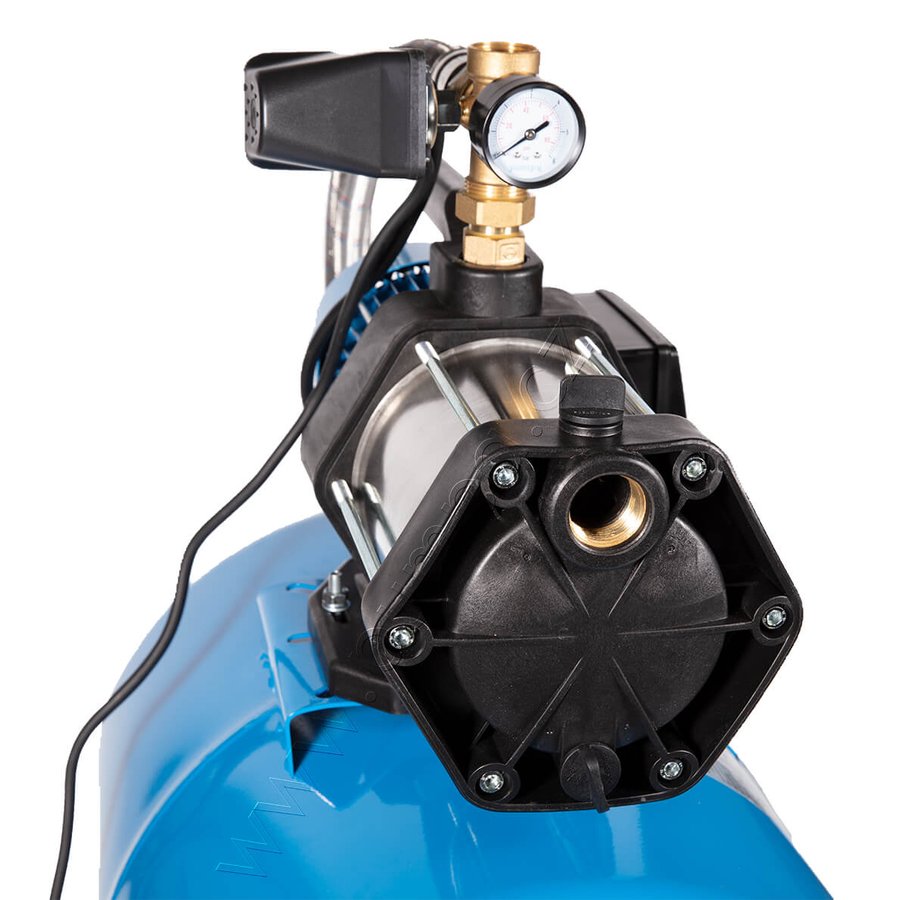

PUMPA blue line pressure booster pump 5PCSM1300P-G PUMPA 80 horizontal 2,8-4,2bar

Home automatic waterworks with Pump tank. For water supply from wells, for use in recreational facilities, in gardens and for irrigation. Maximum suction capacity 8 m. See more

Technical Specifications

Maximum flow [l/min]
90
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
0,90

Show all Tech Specs

in stock 2 pcs

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us by email [email protected]

440.97 € VAT included

Not sellable online

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Pressure booster pumps with expansion vessel for domestic use
Product No.:
ZB00001301
Sale group:
CEBL
EAN:
8596455002109

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Power input - P1 [kW]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Vessel volume [l]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Start pressure [bar]
  • Stop pressure [bar]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA blue line pressure booster pump 5PCSM1300P-G PUMPA 24 horizontal 2,8-4,2bar

Product No.: ZB00001299 Sale group: CEBL EAN: 8596455002086

in stock
3 pcs
Product availability
  • central warehouse 3 pcs
  • available within 5 working days >10 pcs

338.36 €

Not sellable online

Maximum flow [l/min]
90
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
0,90
Suction port ["]
1
Power input - P1 [kW]
1,30
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
24
Maximum current [A]
5,50
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,8
Stop pressure [bar]
4,2
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
with expansion vessel

PUMPA blue line pressure booster pump 5PCSM1300P-G PUMPA 50 horizontal 2,8-4,2bar

Product No.: ZB00001300 Sale group: CEBL EAN: 8596455002093

in stock
1 pcs
Product availability
  • central warehouse 1 pcs
  • available within 5 working days 5 pcs

372.25 €

Not sellable online

Maximum flow [l/min]
90
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
0,90
Suction port ["]
1
Power input - P1 [kW]
1,30
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
50
Maximum current [A]
5,50
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,8
Stop pressure [bar]
4,2
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
with expansion vessel

PUMPA blue line pressure booster pump 5PCSM1300P-G PUMPA 80 horizontal 2,8-4,2bar

Product No.: ZB00001301 Sale group: CEBL EAN: 8596455002109

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

440.97 €

Not sellable online

Maximum flow [l/min]
90
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
0,90
Suction port ["]
1
Power input - P1 [kW]
1,30
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
80
Maximum current [A]
5,50
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,8
Stop pressure [bar]
4,2
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
with expansion vessel
You are viewing this variant

Product description

Instructions

Technical Specifications

Maximum flow [l/min]
90
Maximum head [m]
55
Input voltage [V]
230
Power output - P2 [kW]
0,90
Suction port ["]
1
Power input - P1 [kW]
1,30
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
80
Maximum current [A]
5,50
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,8
Stop pressure [bar]
4,2
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
with expansion vessel
