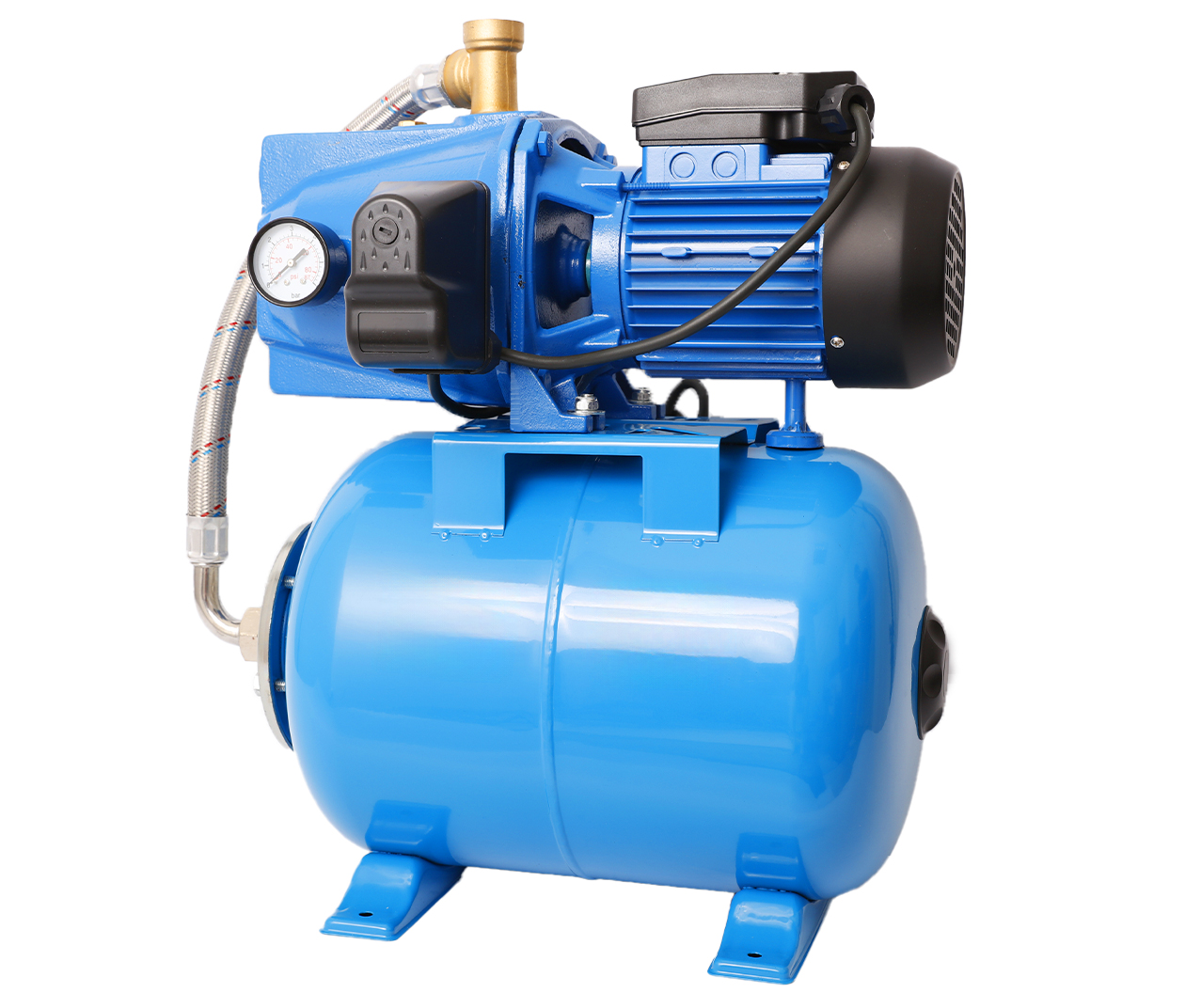

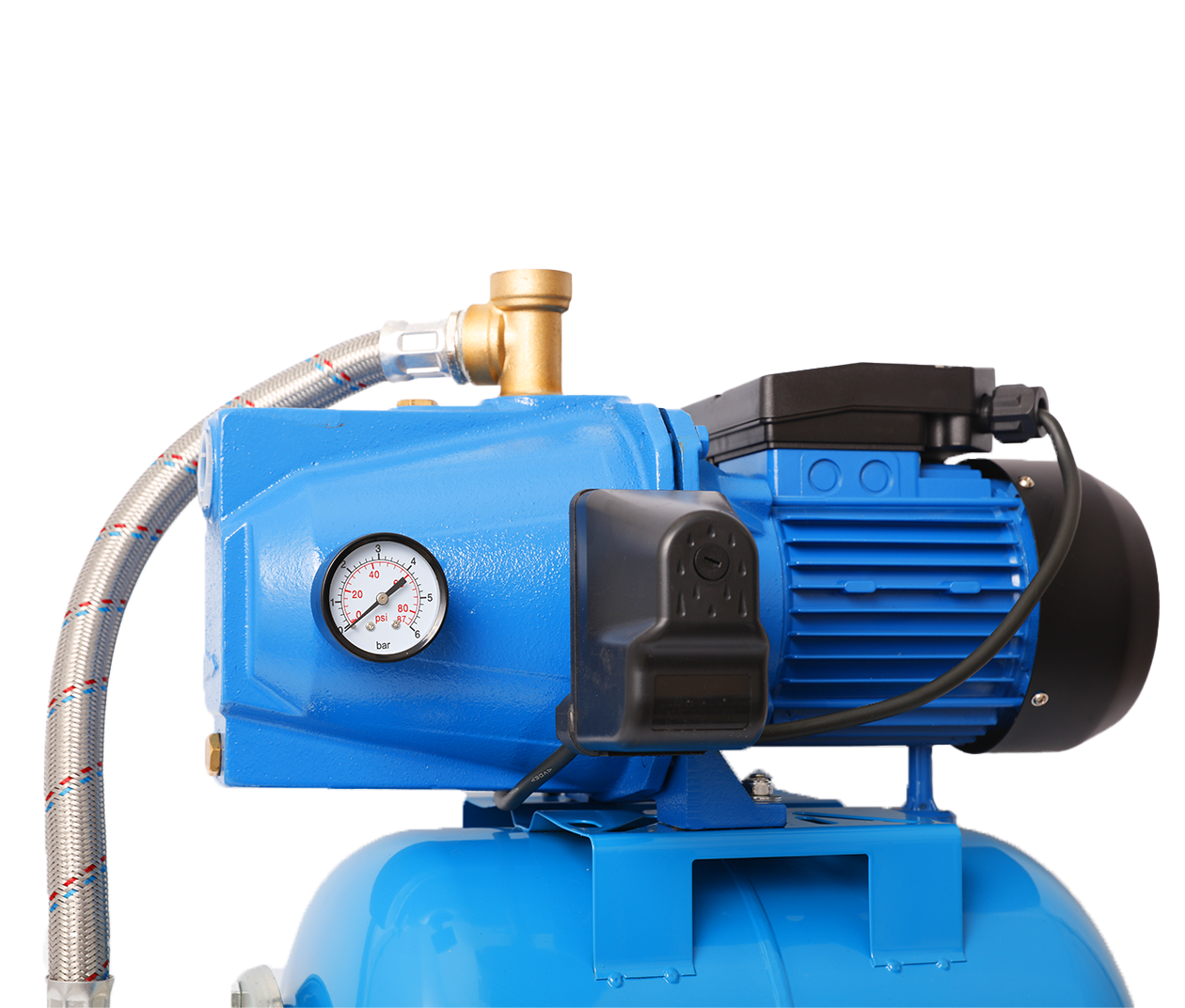

PUMPA blue line pressure booster pump PJM100L PUMPA 24l horizontal 230V 2,1-3,5bar

Home automatic waterworks with Pump tank. For water supply from wells, for use in recreational facilities, in gardens and for irrigation. Maximum suction capacity 8 m. See more

Technical Specifications

Maximum flow [l/min]
50
Maximum head [m]
45
Input voltage [V]
230
Power output - P2 [kW]
0.75

Show all Tech Specs

in stock >100 pcs

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us by email [email protected]

177.25 € VAT included

Not sellable online

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Pressure booster pumps with expansion vessel for domestic use
Product No.:
ZB00001275
Sale group:
CEBL
EAN:
8596455001973

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Vessel volume [l]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Start pressure [bar]
  • Stop pressure [bar]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA blue line pressure booster pump PJM100L PUMPA 24l horizontal 230V 2,1-3,5bar

Product No.: ZB00001275 Sale group: CEBL EAN: 8596455001973

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs
  • available within 5 working days >10 pcs

177.25 €

Not sellable online

Maximum flow [l/min]
50
Maximum head [m]
45
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
24
Maximum current [A]
5.10
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,1
Stop pressure [bar]
3,5
Cable length [m]
1.20
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
brass
Construction
with expansion vessel
You are viewing this variant

PUMPA blue line pressure booster pump PJM100L PUMPA 36l horizontal 230V 2,1-3,5bar

Product No.: ZB00071785 Sale group: CEBL EAN: 8596455041139

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

208.92 €

Not sellable online

Maximum flow [l/min]
50
Maximum head [m]
45
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
36
Maximum current [A]
5.10
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,1
Stop pressure [bar]
3,5
Cable length [m]
1.20
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
brass
Construction
with expansion vessel

PUMPA blue line pressure booster pump PJM100L PUMPA 50l horizontal 230V 2,1-3,5bar

Product No.: ZB00001277 Sale group: CEBL EAN: 8596455001997

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs
  • available within 5 working days >50 pcs

290.44 €

Not sellable online

Maximum flow [l/min]
50
Maximum head [m]
45
Input voltage [V]
230
Power output - P2 [kW]
0,75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
50
Maximum current [A]
5,10
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,1
Stop pressure [bar]
3,5
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
brass
Construction
with expansion vessel

PUMPA blue line pressure booster pump PJM100L PUMPA 80l horizontal 230V 2,1-3,5bar

Product No.: ZB00001276 Sale group: CEBL EAN: 8596455001980

on demand
check availability
Product availability
  • central warehouse 0 pcs

359.58 €

Not sellable online

Maximum flow [l/min]
50
Maximum head [m]
45
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
80
Maximum current [A]
5.10
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,1
Stop pressure [bar]
3,5
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
brass
Construction
with expansion vessel

Product description

Instructions

Technical Specifications

Maximum flow [l/min]
50
Maximum head [m]
45
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
24
Maximum current [A]
5.10
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,1
Stop pressure [bar]
3,5
Cable length [m]
1.20
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
brass
Construction
with expansion vessel
