PUMPA blue line PSDR plastic submersible pump for barrel

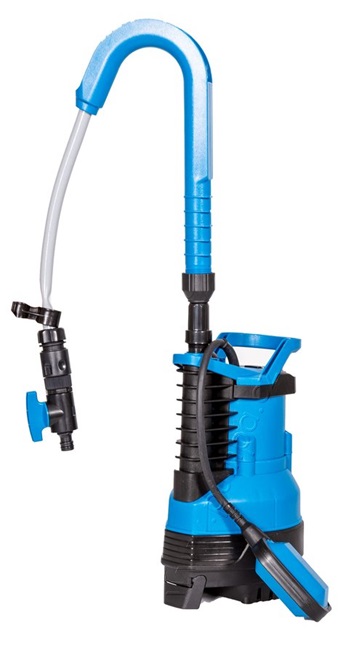

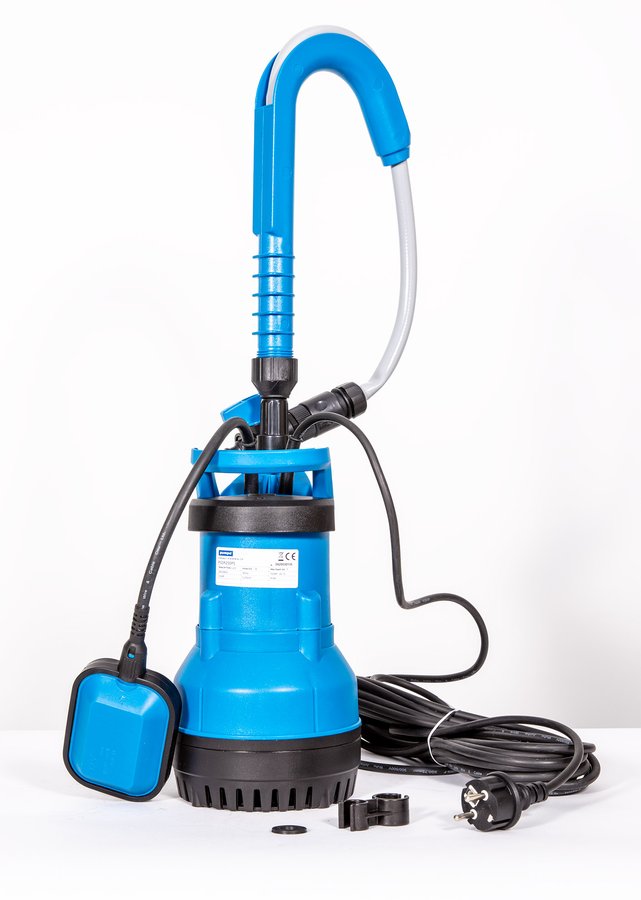

Plastic submersible pump PUMPA blue line PSDR250PS and PSDR550PS with flexible tube and float switch. It is designed for pumping clean or slightly contaminated drainage water from barrels and tanks, for irrigation or pumping storage tanks. Capability to pump water 28 mm from the bottom. For convenient positioning we provide with 10m cable. The pump reaches a maximum delivery height up to 9 / 20 m. See more

Technical Specifications

Maximum flow [l/min]
42 - 83
Maximum head [m]
9 - 20
Input voltage [V]
230
Power output - P2 [kW]
0.10 - 0.27

Show all Tech Specs

in stock >50 pcs

from 60.89 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible pumps for barrels
Product No.:
MAS001007

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Power input - P1 [kW]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Speed ​​control
  • Capacitor
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

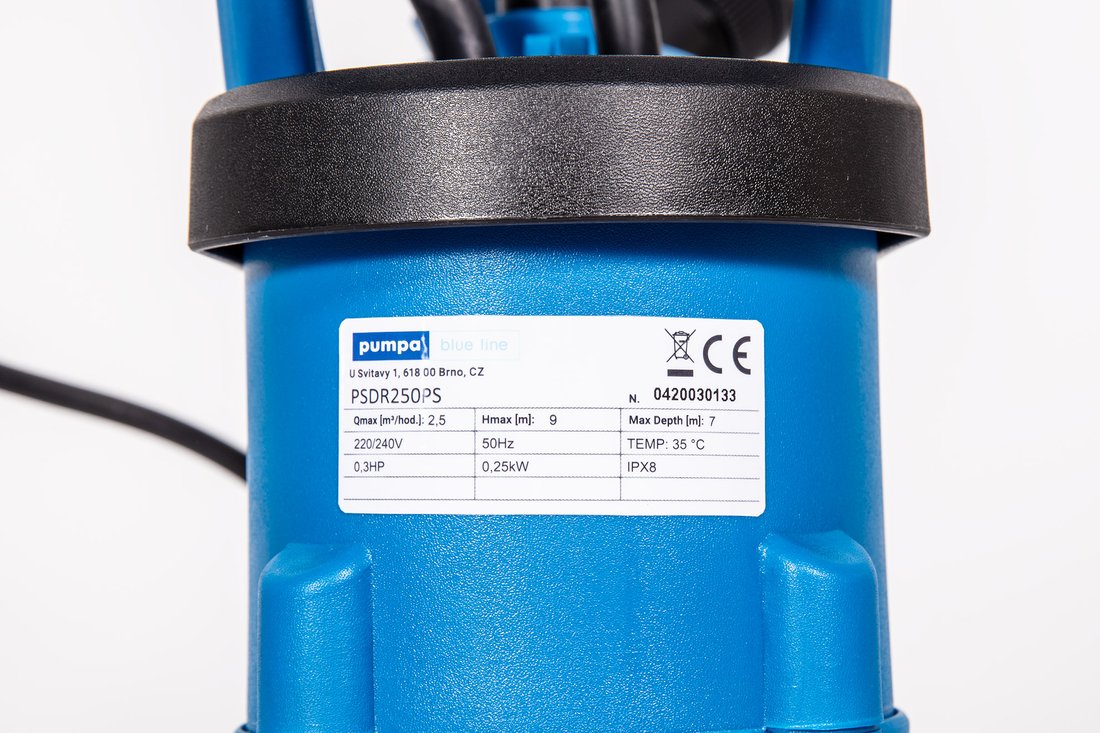

PUMPA blue line PSDR250PS plastic submersible pump for barrel

Product No.: ZB00055046 Sale group: CEBL EAN: 8596455000457

on demand
check availability
Product availability
  • central warehouse 0 pcs

60.89 €

Check availability

Maximum flow [l/min]
42
Maximum head [m]
9
Input voltage [V]
230
Power output - P2 [kW]
0.10
Power input - P1 [kW]
0.25
Maximum immersion depth [m]
7
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
1.30
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
0.50
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Construction
centrifugal
Grinder
NO

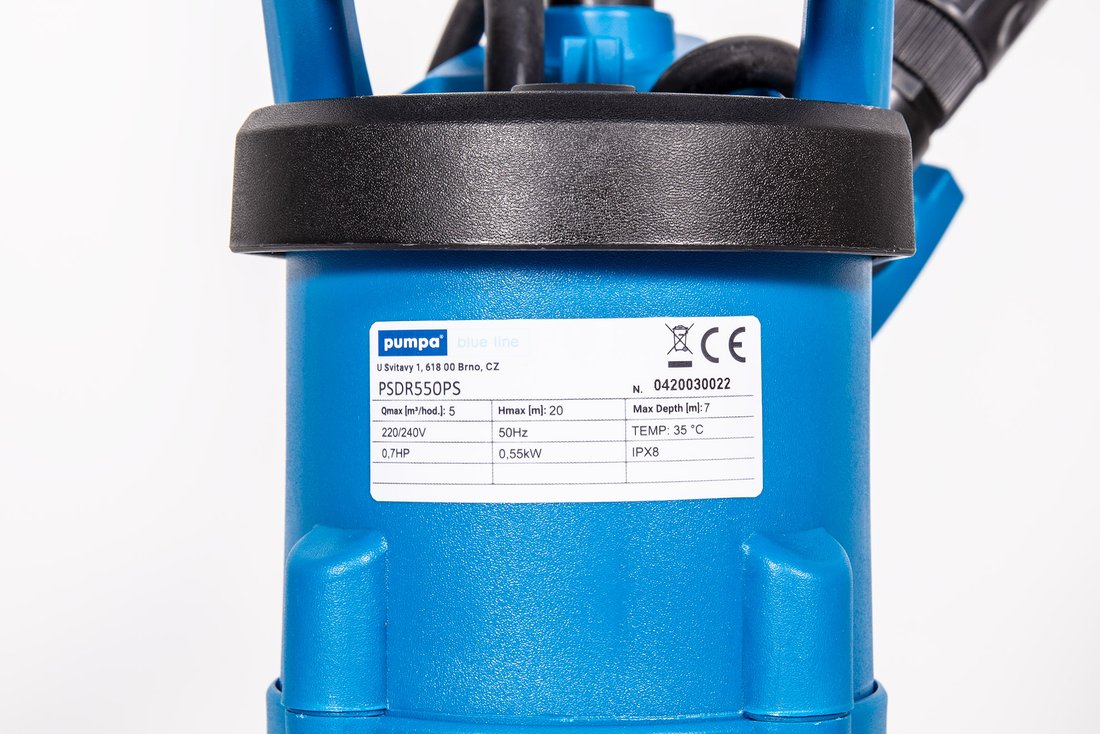

PUMPA blue line PSDR550PS plastic submersible pump for barrel

Product No.: ZB00055047 Sale group: CEBL EAN: 8596455000464

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

84.69 €

Maximum flow [l/min]
83
Maximum head [m]
20
Input voltage [V]
230
Power output - P2 [kW]
0.27
Power input - P1 [kW]
0.55
Maximum immersion depth [m]
7
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
2.30
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
0.50
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Construction
centrifugal
Grinder
NO

Product description

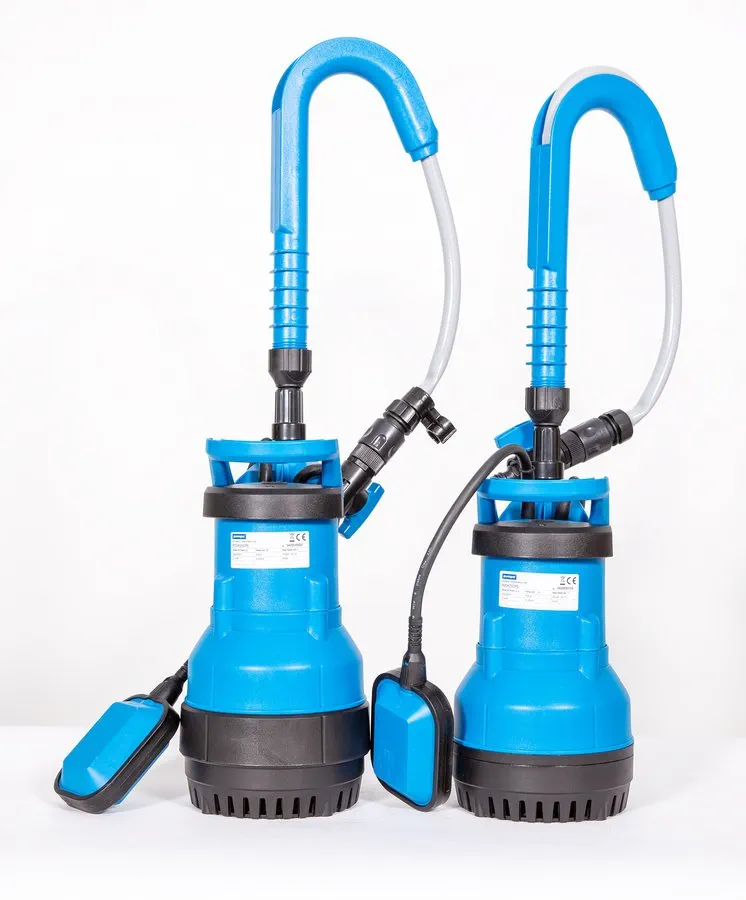

PUMPA Blue Line PSDR250PS and PSDR550PS Pump Application

  • for pumping clean or slightly contaminated drainage water up to 0.5 mm
  • for irrigation in the immediate vicinity of the garden and pumping tanks and reservoirs
  • for pumping water from barrels

Dimensions

  • PSDR 550PS - 32 x 19 x 11 cm
  • PSDR 250PS - 28 x 18.5 x 18 cm

Instructions

Technical Specifications

Maximum flow [l/min]
42 - 83
Maximum head [m]
9 - 20
Input voltage [V]
230
Power output - P2 [kW]
0.10 - 0.27
Power input - P1 [kW]
0.25 - 0.55
Maximum immersion depth [m]
7
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
1.30 - 2.30
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
0.50
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Construction
centrifugal
Grinder
NO
