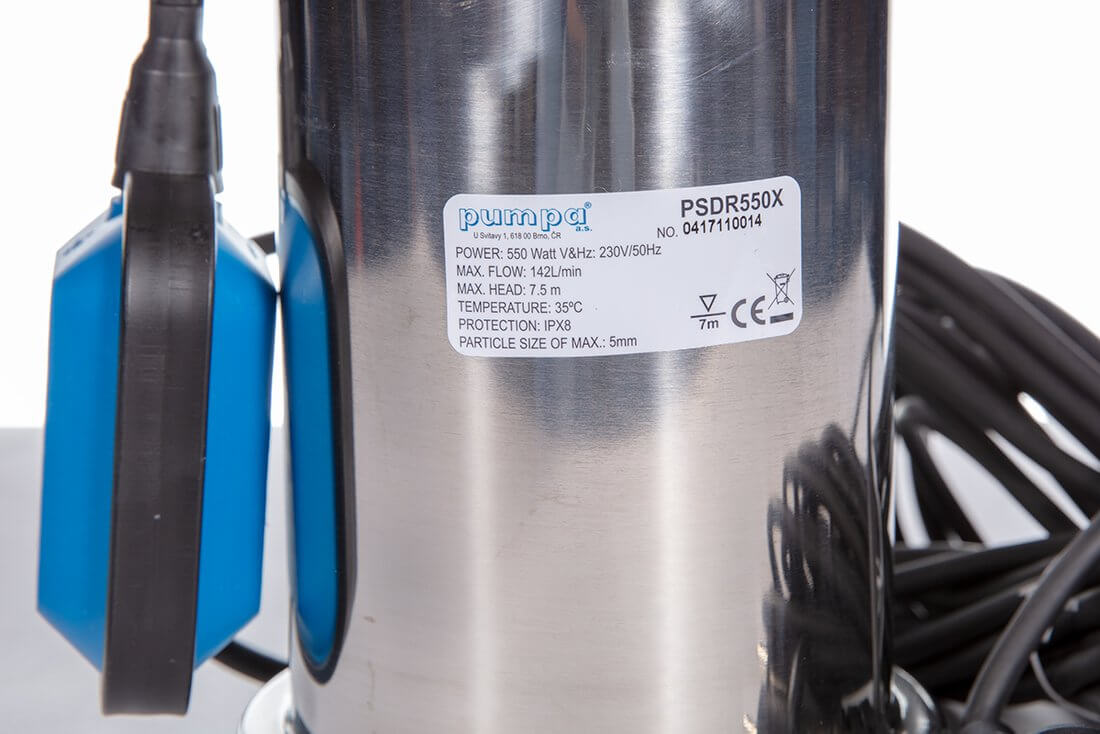

PUMPA blue line PSDR550X submersible pump with float switch

previous next
PUMPA blue line PSDR550X submersible pump with float switch

Submersible pump BLUE LINE PSDR550X designed for pumping clean or slightly contaminated drainage water from cellars and tanks, for irrigation and draining pools. Maximum dirt diameter up to 5 mm. Able to draw water from a depth of up to 8 m. We supply it with a 10 m cable for more convenient placement. See more

Technical Specifications

Maximum flow [l/min]
142
Maximum head [m]
7.50
Input voltage [V]
230
Power output - P2 [kW]
0.27

Show all Tech Specs

in stock >100 pcs

94.88 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Wastewater pumps
Product No.:
MAS000023

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Power input - P1 [kW]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Speed ​​control
  • Capacitor
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA blue line PSDR550X 230V submersible pump with float switch, st. steel, cable 10m

Product No.: ZB00001234 Sale group: CEBL EAN: 8596455001874

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

94.88 €

Maximum flow [l/min]
142
Maximum head [m]
7.50
Input voltage [V]
230
Power output - P2 [kW]
0.27
Power input - P1 [kW]
0.55
Maximum immersion depth [m]
7
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
2.10
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
5
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Construction
submersible
Grinder
NO

Product description

Use of the pump PUMPA blue line PSDR550X

  • for draining clean or slightly contaminated water
  • for irrigation
  • for draining pools

Benefits

  • with a float

Instructions

Technical Specifications

Maximum flow [l/min]
142
Maximum head [m]
7.50
Input voltage [V]
230
Power output - P2 [kW]
0.27
Power input - P1 [kW]
0.55
Maximum immersion depth [m]
7
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
2.10
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
5
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Construction
submersible
Grinder
NO
