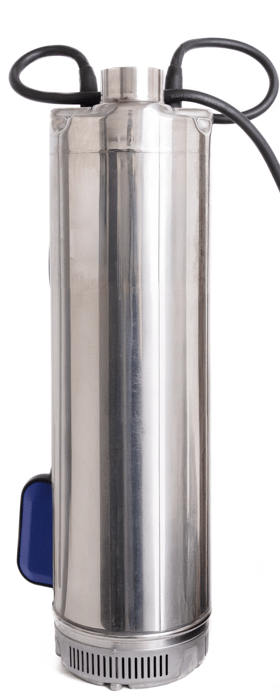

PUMPA blue line PXSM 3xx 5-inch submersible pump

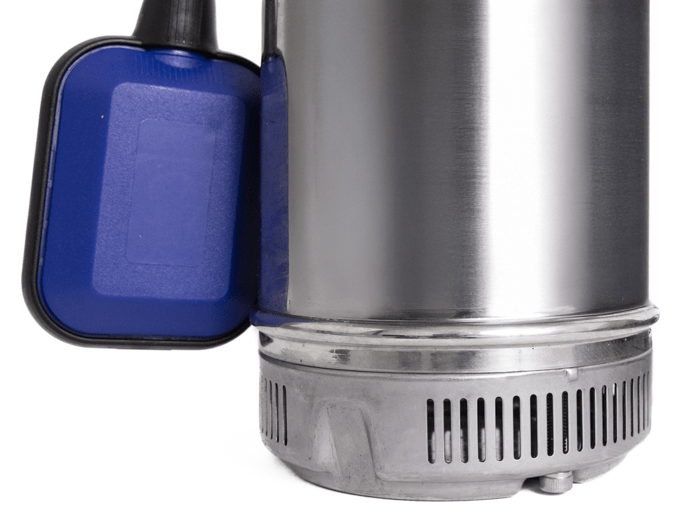

Submersible 5 "pump for wells, tanks, perfect for IBC containers. Designed for clean water supply of households and lodges or garden irrigation. See more

Technical Specifications

Maximum flow [l/min]
83
Maximum head [m]
49 - 84
Input voltage [V]
230
Power output - P2 [kW]
0.60 - 1.10

Show all Tech Specs

in stock >100 pcs

from 259.73 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible pumps for domestic use
Product No.:
MAS001058

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

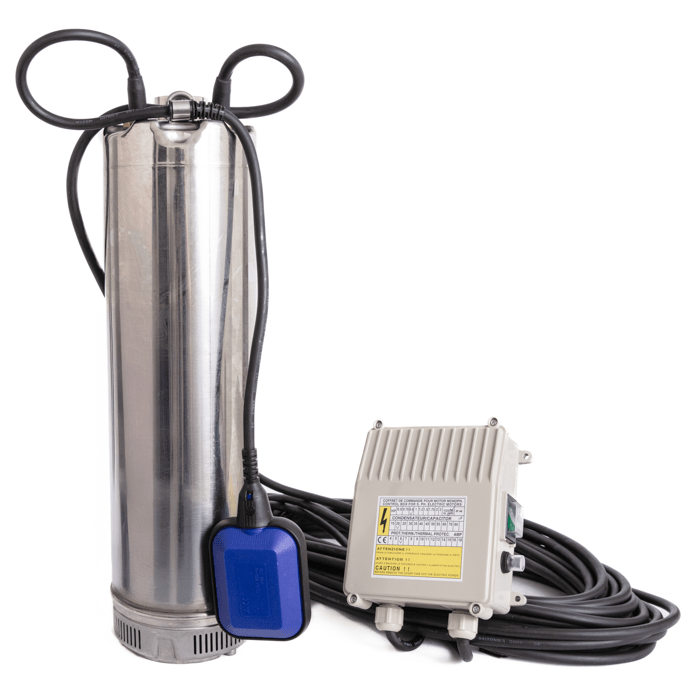

PUMPA blue line PXSM 304F 0,6kW 230V 5" submersible pump, 20m cable, switch box, float switch

Product No.: ZB00061550 Sale group: CEBL EAN: 8596455020783

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

259.73 €

Maximum flow [l/min]
83
Maximum head [m]
49
Input voltage [V]
230
Power output - P2 [kW]
0.60
Rated flow [l/m]
53
Rated head [m]
32
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
4.40
Maximum liquid temperature [°C]
35
Cable length [m]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
138
Impeller material
noryl
Construction
centrifugal

PUMPA blue line PXSM 305F 0,75kW 230V 5" submersible pump, 20m cable, switch box, float switch

Product No.: ZB00061551 Sale group: CEBL EAN: 8596455020790

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

266.65 €

Maximum flow [l/min]
83
Maximum head [m]
60
Input voltage [V]
230
Power output - P2 [kW]
0.75
Rated flow [l/m]
53
Rated head [m]
39
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
5
Maximum liquid temperature [°C]
35
Cable length [m]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
138
Impeller material
noryl
Construction
centrifugal

PUMPA blue line PXSM 306F 0,9kW 230V 5" submersible pump, 20m cable, switch box, float switch

Product No.: ZB00061552 Sale group: CEBL EAN: 8596455020806

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

273.60 €

Maximum flow [l/min]
83
Maximum head [m]
73
Input voltage [V]
230
Power output - P2 [kW]
0.90
Rated flow [l/m]
53
Rated head [m]
47
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
6
Maximum liquid temperature [°C]
35
Cable length [m]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
138
Impeller material
noryl
Construction
centrifugal

PUMPA blue line PXSM 307F 1,1kW 230V 5" submersible pump, 20m cable, switch box, float switch

Product No.: ZB00061553 Sale group: CEBL EAN: 8596455020813

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

310.52 €

Maximum flow [l/min]
83
Maximum head [m]
84
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
53
Rated head [m]
55
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
50
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
8
Maximum liquid temperature [°C]
40
Cable length [m]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
138
Impeller material
noryl
Construction
centrifugal

Product description

Application

  • Pumping clean water from wells and reservoirs

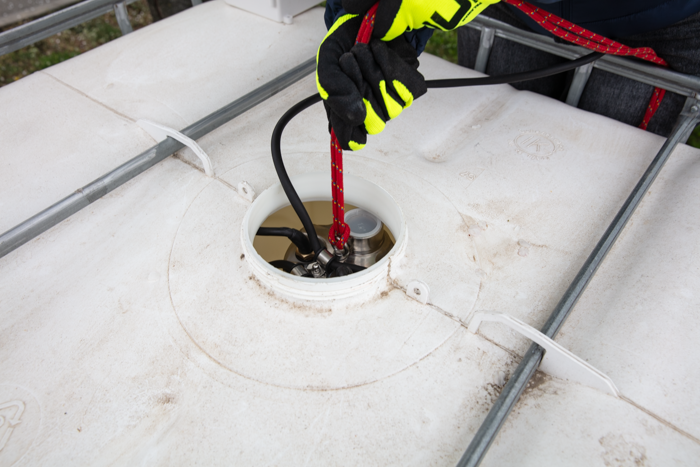

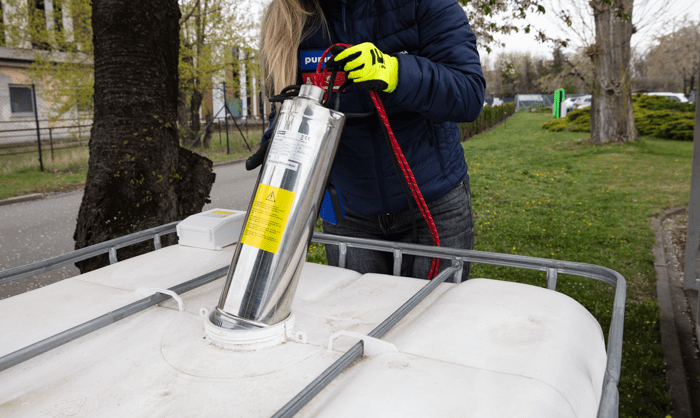

  • Pumping clean water from IBC containers
  • The pump can be used both alone or with an expansion vessel as a domestic pressure booster pump

Instructions

Technical Specifications

Maximum flow [l/min]
83
Maximum head [m]
49 - 84
Input voltage [V]
230
Power output - P2 [kW]
0.60 - 1.10
Rated flow [l/m]
53
Rated head [m]
32 - 55
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
20 - 50
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
4.40 - 8
Maximum liquid temperature [°C]
35 - 40
Cable length [m]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
138
Impeller material
noryl
Construction
centrifugal
