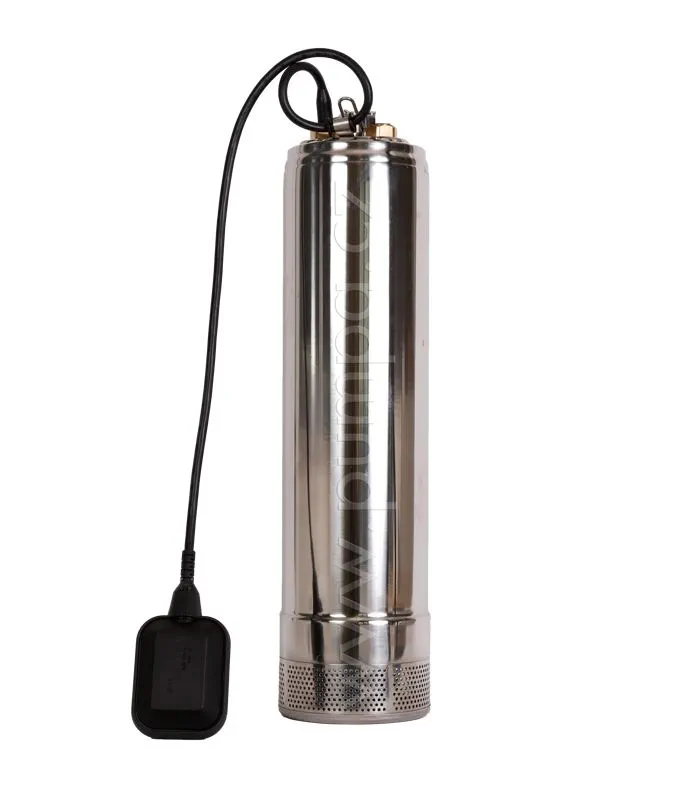

PUMPA blue line PXSM 404F 0,9kW 230V 5" submersible pump, 20m cable, switch box, float switch

Submersible 5 "pump for wells, tanks, perfect for IBC containers. Designed for clean water supply of households and lodges or garden irrigation. See more

Technical Specifications

Maximum flow [l/min]
133
Maximum head [m]
49
Input voltage [V]
230
Power output - P2 [kW]
0.90

Show all Tech Specs

in stock 1 pcs

273.17 € VAT included

the price includes a recycling fee

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible pumps
Product No.:
ZB00061459
Sale group:
CEBL
EAN:
8596455020714

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA blue line PXSM 404F 0,9kW 230V 5" submersible pump, 20m cable, switch box, float switch

Product No.: ZB00061459 Sale group: CEBL EAN: 8596455020714

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

273.17 €

Maximum flow [l/min]
133
Maximum head [m]
49
Input voltage [V]
230
Power output - P2 [kW]
0.90
Rated flow [l/m]
86
Rated head [m]
32
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
50
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
6.50
Maximum liquid temperature [°C]
40
Cable length [m]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
138
Impeller material
noryl
Construction
centrifugal
You are viewing this variant

Product description

Application

  • Pumping clean water from wells and reservoirs
  • Pumping clean water from IBC containers
  • The pump can be used both alone or with an expansion vessel as a domestic pressure booster pump

Instructions

Technical Specifications

Maximum flow [l/min]
133
Maximum head [m]
49
Input voltage [V]
230
Power output - P2 [kW]
0.90
Rated flow [l/m]
86
Rated head [m]
32
Delivery port ["]
5/4
Pump diameter ["]
5
Maximum immersion depth [m]
50
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
6.50
Maximum liquid temperature [°C]
40
Cable length [m]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
YES
Speed ​​control
NO
Capacitor
external
Maximum borehole diameter [mm]
138
Impeller material
noryl
Construction
centrifugal
