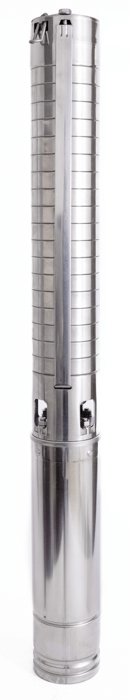

PUMPA inox line SPP-0518 4" 0,55kW 400V submersible pump with Franklin Electric motor, cable 1,5m

PUMPA inox line SPP 4" submersible pumps are designed according to the latest technology and are made of corrosion and abrasion resistant stainless steel. The SPP series pumps meet the highest standards of energy efficiency and are suitable for the most demanding applications with their high performance, robust design and long service life. See more

Technical Specifications

Maximum flow [l/min]
25
Maximum head [m]
102
Input voltage [V]
3x400
Power output - P2 [kW]
0,55

Show all Tech Specs

available in 5 working days 5 pcs

850.40 € VAT included

the price includes a recycling fee

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible borehole pumps
Product No.:
ZB00060328
Sale group:
CEST
EAN:
8596455018902

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA inox line SPP-0509 4" 0,37kW 400V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060323 Sale group: CEST EAN: 8596455018858

available in 5 working days
2 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 2 pcs

631.45 €

Maximum flow [l/min]
25
Maximum head [m]
50
Input voltage [V]
3x400
Power output - P2 [kW]
0,37
Rated flow [l/m]
15
Rated head [m]
36
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
1,10
Maximum liquid temperature [°C]
30
Cable length [m]
1,70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-0518 4" 0,55kW 400V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060328 Sale group: CEST EAN: 8596455018902

available in 5 working days
5 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 5 pcs

850.40 €

Maximum flow [l/min]
25
Maximum head [m]
102
Input voltage [V]
3x400
Power output - P2 [kW]
0,55
Rated flow [l/m]
15
Rated head [m]
72
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
1,60
Maximum liquid temperature [°C]
30
Cable length [m]
1,70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal
You are viewing this variant

PUMPA inox line SPP-0521 4" 0,55kW 400V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060331 Sale group: CEST EAN: 8596455018933

available in 5 working days
6 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 6 pcs

918.23 €

Maximum flow [l/min]
25
Maximum head [m]
118
Input voltage [V]
3x400
Power output - P2 [kW]
0,55
Rated flow [l/m]
15
Rated head [m]
81
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
1,60
Maximum liquid temperature [°C]
30
Cable length [m]
1,70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-0528 4" 0,75kW 400V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060334 Sale group: CEST EAN: 8596455018964

available in 5 working days
10 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 10 pcs

1,088.53 €

Maximum flow [l/min]
25
Maximum head [m]
158
Input voltage [V]
3x400
Power output - P2 [kW]
0,75
Rated flow [l/m]
15
Rated head [m]
111
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
2
Maximum liquid temperature [°C]
30
Cable length [m]
1,70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-0536 4" 1,1kW 400V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060337 Sale group: CEST EAN: 8596455018995

available in 5 working days
2 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 2 pcs

1,367.11 €

Maximum flow [l/min]
25
Maximum head [m]
205
Input voltage [V]
3x400
Power output - P2 [kW]
1,10
Rated flow [l/m]
15
Rated head [m]
134
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
2,80
Maximum liquid temperature [°C]
30
Cable length [m]
1,70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-0542 4" 1,1kW 400V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060339 Sale group: CEST EAN: 8596455019015

available in 5 working days
2 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 2 pcs

1,552.32 €

Maximum flow [l/min]
25
Maximum head [m]
238
Input voltage [V]
3x400
Power output - P2 [kW]
1,10
Rated flow [l/m]
15
Rated head [m]
167
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
2,80
Maximum liquid temperature [°C]
30
Cable length [m]
1,70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-0514 4" 0,37kW 400V submersible pump with Franklin Electric motor, cable 1,5m

Product No.: ZB00060325 Sale group: CEST EAN: 8596455018872

available in 5 working days
3 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 3 pcs

743.39 €

Maximum flow [l/min]
25
Maximum head [m]
78
Input voltage [V]
3x400
Power output - P2 [kW]
0,37
Rated flow [l/m]
15
Rated head [m]
56
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
1,10
Maximum liquid temperature [°C]
30
Cable length [m]
1,70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

Product description

Application

  • Drinking water supply of residential buildings from deep drilled wells
  • Utility and industrial water supply
  • Irrigation and other agricultural applications
  • Fire protection systems
  • Pressure amplification in high-rise buildings
  • Other applications

Features

  • Stainless steel construction developed and manufactured to provide many years of fault-free operation
  • All metal parts are made of grade 304 stainless steel, except the shaft made of grade 431 stainless steel
  • Heavy-duty stainless steel discharge head with built-in check valve for long life and easy installation
  • Engine mounting specifications according to NEMA standard
  • High quality shaft bearings ensuring low friction and high wear resistance
  • Stainless steel impellers and diffusers for heavy loads providing optimum performance
  • Stainless steel strainer to prevent the ingress of sand and other impurities

Instructions

Technical Specifications

Maximum flow [l/min]
25
Maximum head [m]
102
Input voltage [V]
3x400
Power output - P2 [kW]
0,55
Rated flow [l/m]
15
Rated head [m]
72
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
1,60
Maximum liquid temperature [°C]
30
Cable length [m]
1,70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal
