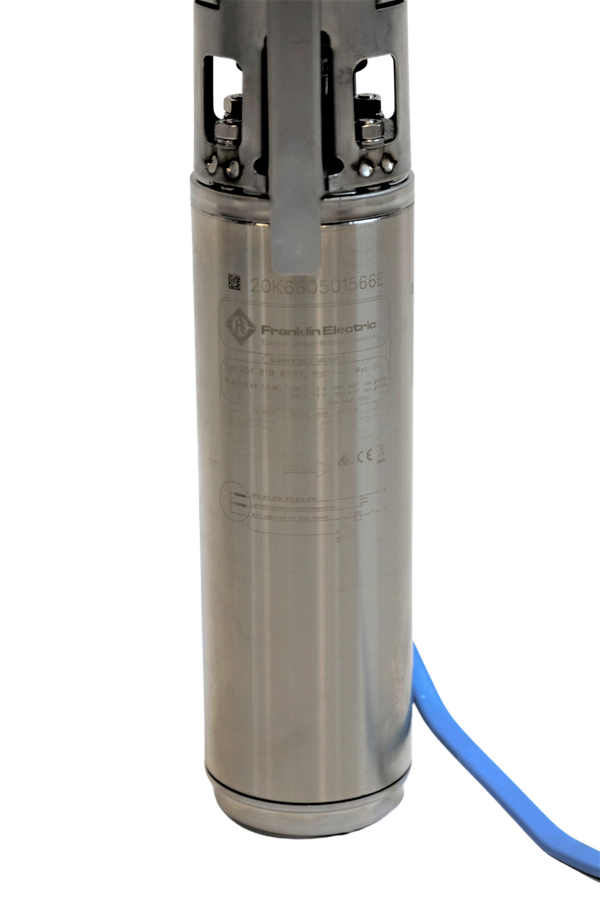

PUMP inox line SPP-18 4" submersible pump 230V - 2 wire without switch box with Franklin Electric motor

Drinking water certificate Stainless steel

previous next
PUMP inox line SPP-18 4" submersible pump 230V - 2 wire without switch box with Franklin Electric motor

PUMPA inox line SPP 4" submersible pumps are developed according to the latest technology. They are made of corrosion and abrasion resistant stainless steel. The SPP series pumps meet the highest standards of energy efficiency and are suitable for the most demanding applications with their high performance, robust design and long service life. 230 V - 2-wire without switch box See more

Technical Specifications

Maximum flow [l/min]
70
Maximum head [m]
57 - 116
Input voltage [V]
230
Power output - P2 [kW]
0.55 - 1.10

Show all Tech Specs

available in 5 working days >10 pcs

from 811.09 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible borehole pumps
Product No.:
MAS001396

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA inox line SPP-1809 4" 0,55kW 230V 2-wire Franklin Electric motor, submersible pump, cable 1,5m

Product No.: ZB00060364 Sale group: CEST EAN: 8596455019268

available in 5 working days
5 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 5 pcs

811.09 €

Maximum flow [l/min]
70
Maximum head [m]
57
Input voltage [V]
230
Power output - P2 [kW]
0.55
Rated flow [l/m]
50
Rated head [m]
38
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
5.80
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1812 4" 0,75kW 230V 2-wire Franklin Electric motor, submersible pump, cable 1,5m

Product No.: ZB00060367 Sale group: CEST EAN: 8596455019299

available in 5 working days
5 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 5 pcs

901.67 €

Maximum flow [l/min]
70
Maximum head [m]
77
Input voltage [V]
230
Power output - P2 [kW]
0.75
Rated flow [l/m]
50
Rated head [m]
52
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
7.30
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1815 4" 1,1kW 230V 2-wire Franklin Electric motor, submersible pump, cable 1,5m

Product No.: ZB00060370 Sale group: CEST EAN: 8596455019329

available in 5 working days
5 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 5 pcs

1,040.55 €

Maximum flow [l/min]
70
Maximum head [m]
97
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
50
Rated head [m]
69
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
10.80
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1818 4" 1,1kW 230V 2-wire Franklin Electric motor, submersible pump, cable 1,5m

Product No.: ZB00060373 Sale group: CEST EAN: 8596455019350

available in 5 working days
5 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 5 pcs

1,077.05 €

Maximum flow [l/min]
70
Maximum head [m]
116
Input voltage [V]
230
Power output - P2 [kW]
1.10
Rated flow [l/m]
50
Rated head [m]
80
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
10.80
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

Product description

Application

  • Drinking water supply of residential buildings from deep drilled wells
  • Utility and industrial water supply
  • Irrigation and other agricultural applications
  • Fire protection systems
  • Pressure amplification in high-rise buildings
  • Other applications

Characteristics

  • Stainless steel construction developed and manufactured to provide many years of fault-free operation
  • All metal parts are made of grade 304 stainless steel, except the shaft made of grade 431 stainless steel
  • Heavy-duty stainless steel discharge head with built-in check valve for long life and easy installation
  • Engine mounting specifications according to NEMA standard
  • High quality shaft bearings ensuring low friction and high wear resistance
  • Stainless steel impellers and diffusers for heavy loads providing optimum performance
  • Stainless steel strainer to prevent the ingress of sand and other impurities

Instructions

Technical Specifications

Maximum flow [l/min]
70
Maximum head [m]
57 - 116
Input voltage [V]
230
Power output - P2 [kW]
0.55 - 1.10
Rated flow [l/m]
50
Rated head [m]
38 - 80
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
150
Drinking water certificate
YES
Float switch
NO
Maximum current [A]
5.80 - 10.80
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal
