PUMPA inox line SPP90 6-inch hydraulic part without motor

Drinking water certificate Stainless steel

previous next

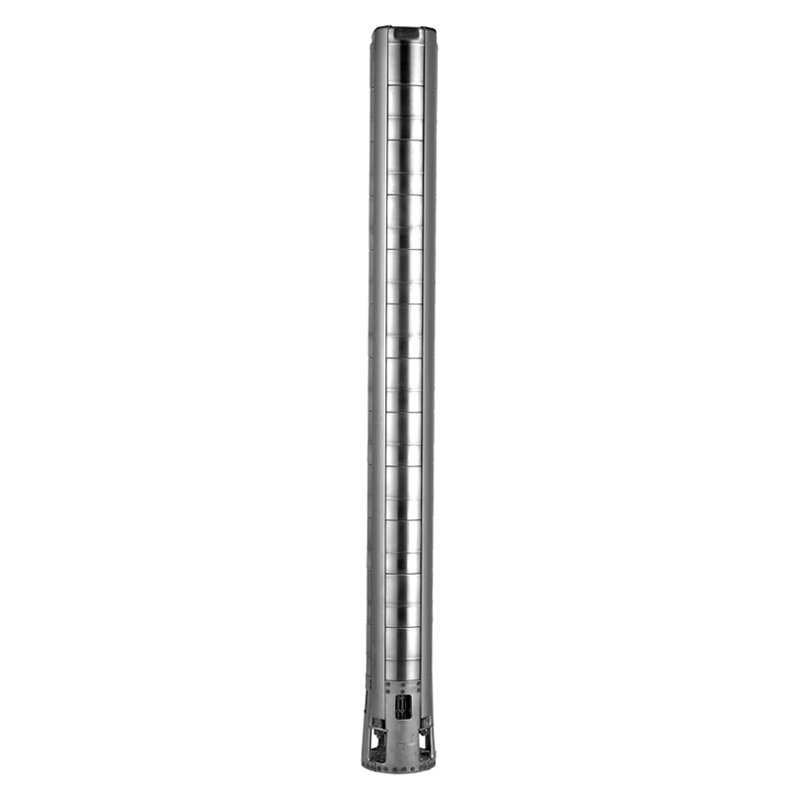

PUMPA inox line SPP90 6-inch hydraulic part without motor

PUMPA inox line SPP 6" submersible pumps are designed according to the latest technology and are made of corrosion and abrasion resistant stainless steel. The SPP series pumps meet the highest standards of energy efficiency and are suitable for the most demanding applications with their high performance, robust design and long service life. See more

Technical Specifications

Maximum flow [l/min]
383
Maximum head [m]
53 - 216
Input voltage [V]
without motor
Power output - P2 [kW]
3 - 7.50

Show all Tech Specs

in stock >10 pcs

from 1,050.57 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible borehole pumps
Product No.:
MAS001020

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Drinking water certificate
  • Float switch
  • Maximum liquid temperature [°C]
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA inox line SPP90-05 6" hydraulic part without motor (4") (3kW)

Product No.: ZB00059659 Sale group: CESTP EAN: 8596455014157

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

1,050.57 €

Maximum flow [l/min]
383
Maximum head [m]
53
Input voltage [V]
without motor
Power output - P2 [kW]
3
Rated flow [l/m]
250
Rated head [m]
43
Delivery port ["]
2 1/2
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
131
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP90-06 6" hydraulic part without motor (4") (3,7kW)

Product No.: ZB00059660 Sale group: CESTP EAN: 8596455014164

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

1,180.67 €

Maximum flow [l/min]
383
Maximum head [m]
64
Input voltage [V]
without motor
Power output - P2 [kW]
3.70
Rated flow [l/m]
250
Rated head [m]
50
Delivery port ["]
2 1/2
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
131
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP90-07 6" hydraulic part without motor (4") (4kW)

Product No.: ZB00059661 Sale group: CESTP EAN: 8596455014171

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,316.00 €

Maximum flow [l/min]
383
Maximum head [m]
75
Input voltage [V]
without motor
Power output - P2 [kW]
4
Rated flow [l/m]
250
Rated head [m]
59
Delivery port ["]
2 1/2
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
131
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP90-10 6" hydraulic part without motor (6") (5,5kW)

Product No.: ZB00059662 Sale group: CESTP EAN: 8596455014188

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

1,706.58 €

Maximum flow [l/min]
383
Maximum head [m]
108
Input voltage [V]
without motor
Power output - P2 [kW]
5.50
Rated flow [l/m]
250
Rated head [m]
86
Delivery port ["]
2 1/2
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
131
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP90-10 6" hydraulic part without motor (4") (5,5kW)

Product No.: ZB00059663 Sale group: CESTP EAN: 8596455014195

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,706.58 €

Check availability

Maximum flow [l/min]
383
Maximum head [m]
108
Input voltage [V]
without motor
Power output - P2 [kW]
5.50
Rated flow [l/m]
250
Rated head [m]
86
Delivery port ["]
2 1/2
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
131
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP90-13 6" hydraulic part without motor (6") (7,5kW)

Product No.: ZB00059666 Sale group: CESTP EAN: 8596455014225

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

2,097.08 €

Maximum flow [l/min]
383
Maximum head [m]
141
Input voltage [V]
without motor
Power output - P2 [kW]
7.50
Rated flow [l/m]
250
Rated head [m]
112
Delivery port ["]
2 1/2
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
142
Impeller material
stainless steel
Construction
centrifugal

PUMPA INOX LINE SPP90-20 6" hydraulic part without motor (6") (11kW)

Product No.: ZB00059668 Sale group: CESTP EAN: 8596455014249

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

3,009.90 €

Not sellable online

Maximum flow [l/min]
383
Maximum head [m]
216
Input voltage [V]
without motor
Rated flow [l/m]
250
Rated head [m]
173
Delivery port ["]
2 1/2
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum borehole diameter [mm]
142
Impeller material
stainless steel
Construction
centrifugal

Product description

Application

  • Drinking water supply for residential buildings from deep drilled wells
  • Utility and industrial water supply
  • Irrigation and other agricultural applications
  • Fire protection systems
  • Pressure amplification in high-rise buildings
  • Other applications

Characteristics

  • Stainless steel construction developed and manufactured to provide many years of fault-free operation
  • All metal parts are made of grade 304 stainless steel, except the shaft made of grade 431 stainless steel
  • Heavy-duty stainless steel discharge head with built-in check valve for long life and easy installation
  • Engine mounting specifications according to NEMA standard
  • High quality shaft bearings ensuring low friction and high wear resistance
  • Stainless steel impellers and diffusers for heavy loads for optimum performance
  • Stainless steel strainer to prevent the ingress of sand and other impurities

Instructions

Technical Specifications

Maximum flow [l/min]
383
Maximum head [m]
53 - 216
Input voltage [V]
without motor
Power output - P2 [kW]
3 - 7.50
Rated flow [l/m]
250
Rated head [m]
43 - 173
Delivery port ["]
2 1/2
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
131 - 142
Impeller material
stainless steel
Construction
centrifugal
